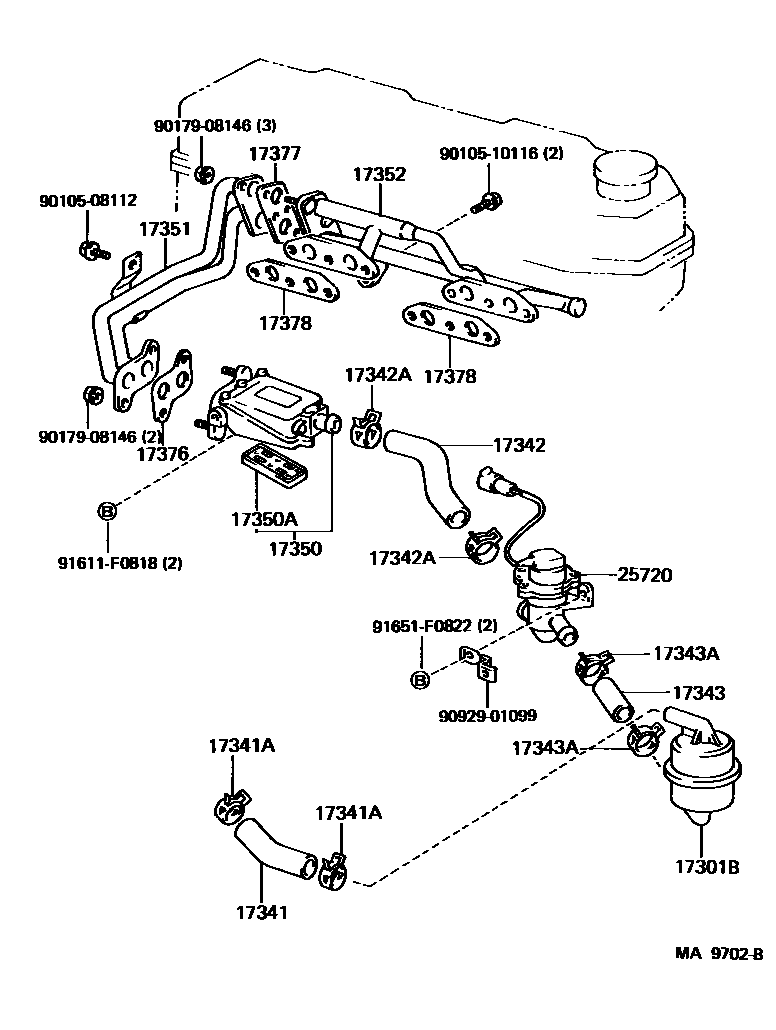

MANIFOLD AIR INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

17301BSILENCER SUB-ASSY, AIR SUCTION

main17301-35030i22R..RN80..W198808-198908

main17301-35050i22RE..RN12#,8#,90198808-199501

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-35070i22R..RN80..W198808-198908

main17341-35150i22RE..RN12#,8#,90198808-199501

main17341-35160i22R..RN8#,90..G198808-199008

main17341-65010i3VZE..VZN120,85,9#198808-199108

main17341-65040i3VZE..VZN120,85,9#199108-199511

17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)

main90467-23003i3VZE..VZN120,85,9#198808-199511

sub96134-42300

main90467-26005i22R#..RN12#,8#,90198808-199501

sub96134-52600

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main17342-35090i22R..RN80..W198808-198908

main17342-35110i22R..RN8#,90..G198808-199008

main17342-35130i22RE..RN12#,8#,90198808-199501

17342ACLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)

main90467-26005i22R..RN8#,90..G;22RE..RN12#,8#,90198808-199501

sub96134-52600

main90467-28003i22R..RN80..W198808-198908

sub90467-28007

17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)

main17343-35030i22R..RN80..W198808-198908

main17343-35060i22R..RN8#,90..G198808-199008

main17343-35070i22RE..RN12#,8#,90198808-199501

17343ACLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)

main90467-26005i22R..RN8#,90..G198808-199501

sub96134-52600

17350VALVE ASSY, REED

main17350-35040i22R..RN80..W198808-198908

main17350-35050i22RE..RN12#,8#,90198808-199501

main17350-65010i3VZE..VZN120,85,9#198808-199208

main17350-65011i3VZE..VZN120,85,9#199208-199511

17350AVALVE SUB-ASSY, REED

main17305-35020i22R..RN80..W198808-198908

main17305-35030i22RE..RN12#,8#,90198808-199501

17351MANIFOLD, AIR INJECTION

main17306-65010i3VZE..VZN120,85,9#198808-199511

main17351-35040i22R..RN80..W198808-198908

main17351-35050i22RE..RN12#,8#,90198808-199501

17352MANIFOLD, AIR INJECTION, NO.2

main17352-35050i22R..RN80..W198808-198908

main17352-35080i22RE..RN12#,8#,90198808-199501

17376GASKET, AIR TUBE, NO.1

main17376-35030i22R..RN8#,90..G198808-199501

main17376-35040i22R..RN80..W198905-198908

main17376-37010i22R..RN80..W198808-198905

sub17376-37011

main25628-65010i3VZE..VZN120,85,9#198808-199511

17377GASKET, AIR TUBE, NO.2

main17377-35020i22R..RN80..W198808-198908

main17377-35030i22R..RN8#,90..G198808-199008

17378GASKET AIR TUBE, NO.3

main17378-35020i22R..RN80..W;22RE..RN12#,8#,90198808-199501

25720VALVE ASSY, ELECTRIC AIR CONTROL

main25720-35021i22R..RN80..W198808-198908

9010508112

main90105-08112

9010510116

main90105-10116

9017908146

main90179-08146

9092901099

main90929-01099

91611F0818

main91611-F0818

91651F0822

main91651-F0822

21 parts on this diagram · 4 diagrams in section
