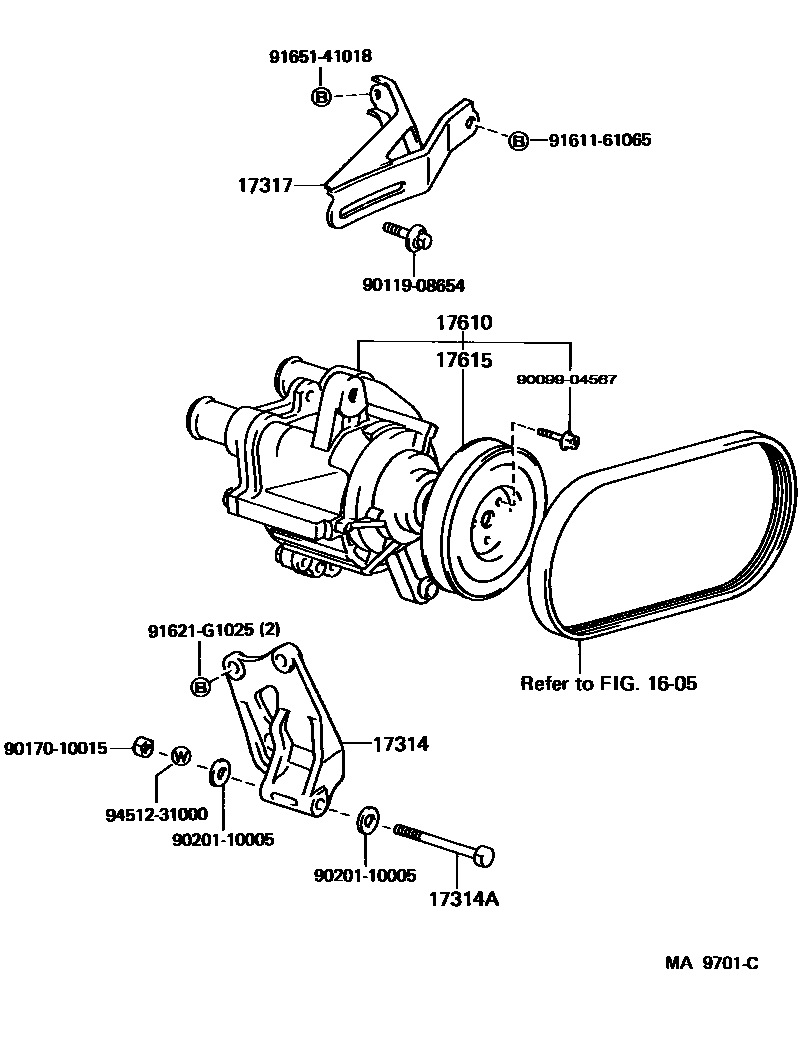

AIR PUMP

1605

17314BRACKET, AIR PUMP

main17314-35020i22R..RN8#,90..G198808-199008

17314ABOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING)

main90101-10463i22R..RN8#,90..G198808-199008

17317BAR, AIR PUMP ADJUSTING, NO.1

main17317-35010i22R..RN8#,90..G198808-199008

17610PUMP ASSY, AIR

main17610-35020i22R..RN8#,90..G198808-199008

17615PULLEY(FOR AIR PUMP)

main17615-35020i22R..RN8#,90198911-199008

9009904567

main90099-04567

9011908654

main90119-08654

9017010015

main90170-10015

9020110005

main90201-10005

9161161065

main91611-61065

91621G1025

main91621-G1025

9165141018

main91651-41018

9451231000

main94512-31000

14 parts on this diagram · 1 diagram in section
