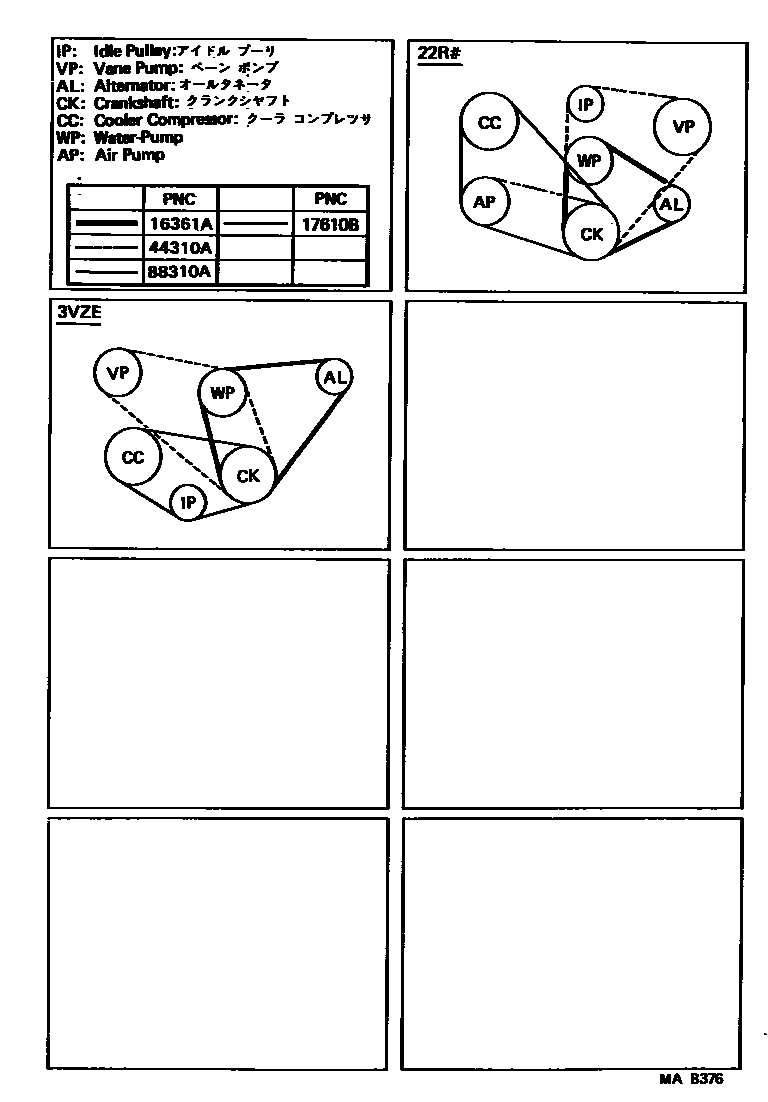

V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02194i3VZE..VZN120,85,9#198808-199208

sub90916-02384

main90916-02384i3VZE..VZN120,85,9#199208-199511

main99331-10870i22R#..RN12#,8#,90198808-199501

17610BBELT, V(FOR AIR PUMP)

main99364-00860i22R..RN8#,90..G198808-199008

sub90916-02354

44310ABELT, V(FOR VANE PUMP)

main90916-02196iVZN120,85,9#198808-199511

L=1205

main99332-11120iRN12#,8#,90198808-199501

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99332-10860iRN80..4F..W;RN121,8#,90..EFI..CND198808-199501

L=860

main99332-10860iRN120,8#,90..(4FC,4HC,5F)..EFI..USA198808-199501

L=860,W(DEALER OPTION AIR CONDITIONER)

main99332-10865iRN120,8#,90..(4FC,4HC,5F)..EFI..USA198808-199501

L=865,W(MAKER OPTION AIR CONDITIONER)

main99332-10890iVZN120,85,9#198808-199511

L=890

main99332-10900iVZN95199008-199308

main99364-51140iRN8#,90..G198808-199008

sub90916-02343

4 parts on this diagram · 1 diagram in section
