RADIO RECEIVER & AMPLIFIER & CONDENSER

86120RECEIVER ASSY, RADIO

main86120-0KE91iTGN156202408

DENSO TEN,ID=100892

86120AKNOB, RADIO RECEIVER SWITCH

main90010-23060iTGN156202408

86183DCOVER, AUDIO AMPLIFIER

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-35020iGUN156202408

AUDIO-*DA(8INCH) & *BT & DAB

86203WIRE, RADIO

main86203-0K120iGUN156202408

AUDIO-*DA(8INCH) & *BT & DAB

86211BRACKET, RADIO, NO.1

main86211-KK090iGUN156,TGN156202408

86212BRACKET, RADIO, NO.2

main86212-KK090iGUN156,TGN156202408

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0K060

86285BRACKET, AMPLIFIER, NO.1

main86285-KK010

86286BRACKET, AMPLIFIER, NO.2

main86286-KK010

9011906A06

main90119-06A06

90153T0001

main90153-T0001

9015950311

main90159-50311

90159T0009

main90159-T0009

9046710183

main90467-10183

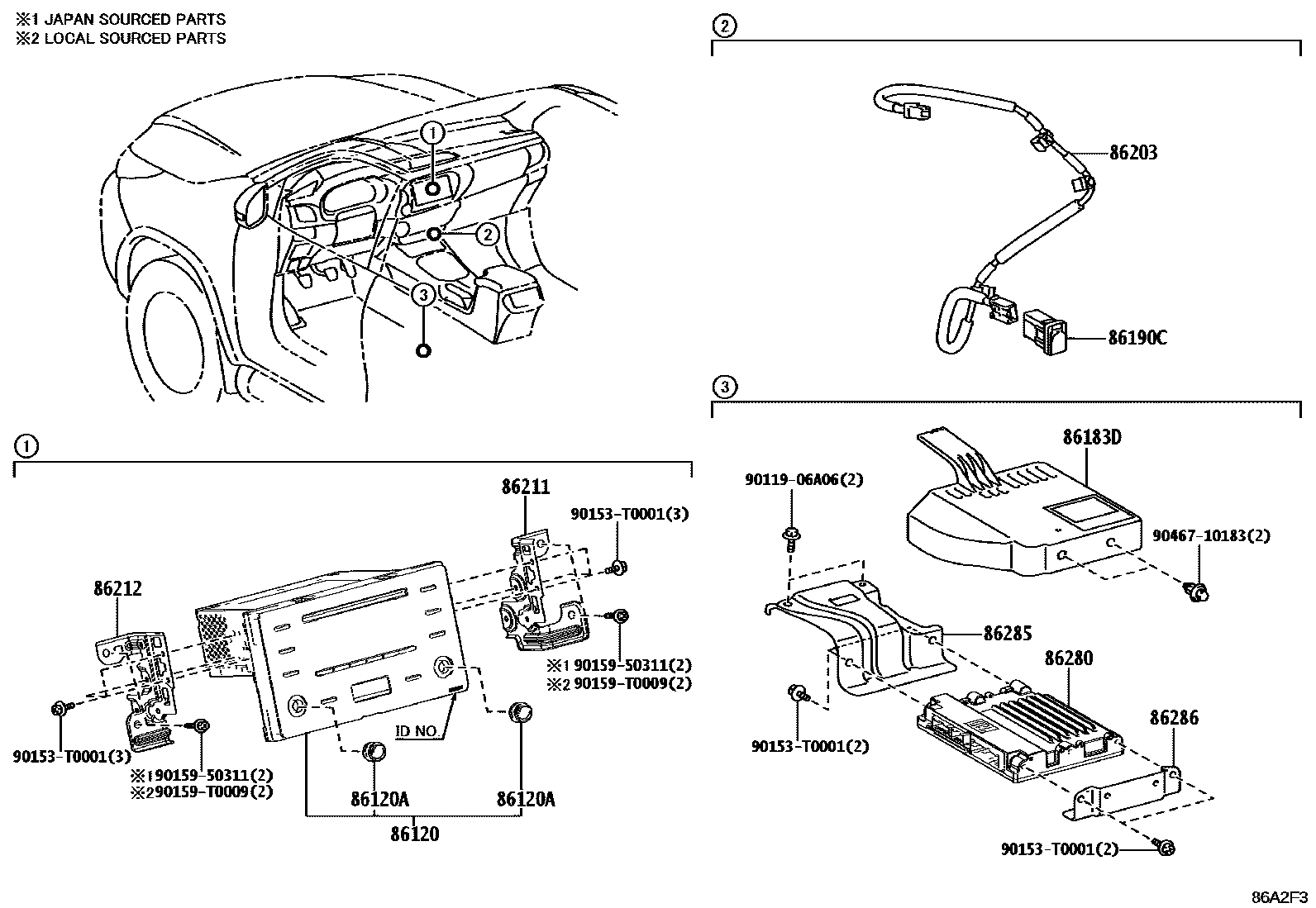

15 parts on this diagram · 1 diagram in section
