ABS & VSC

88266BCLAMP, SKID CONTROL SENSOR, NO.1

main88266-0K020iGUN156,TGN156202408

88266CCLAMP, SKID CONTROL SENSOR, NO.2

main88266-0K040iGUN156,TGN156202408

89542SENSOR, SPEED, FRONT RH

main89542-0K060iGUN156,TGN156202408

89543SENSOR, SPEED, FRONT LH

main89543-0K061iGUN156,TGN156202408

89545SENSOR, SPEED, REAR RH

main89545-0K130iGUN156,TGN156202408

89546SENSOR, SPEED, REAR LH

main89546-0K130iGUN156,TGN156202408

90105T0053

main90105-T0053

90105T0122

main90105-T0122

90105T0136

main90105-T0136

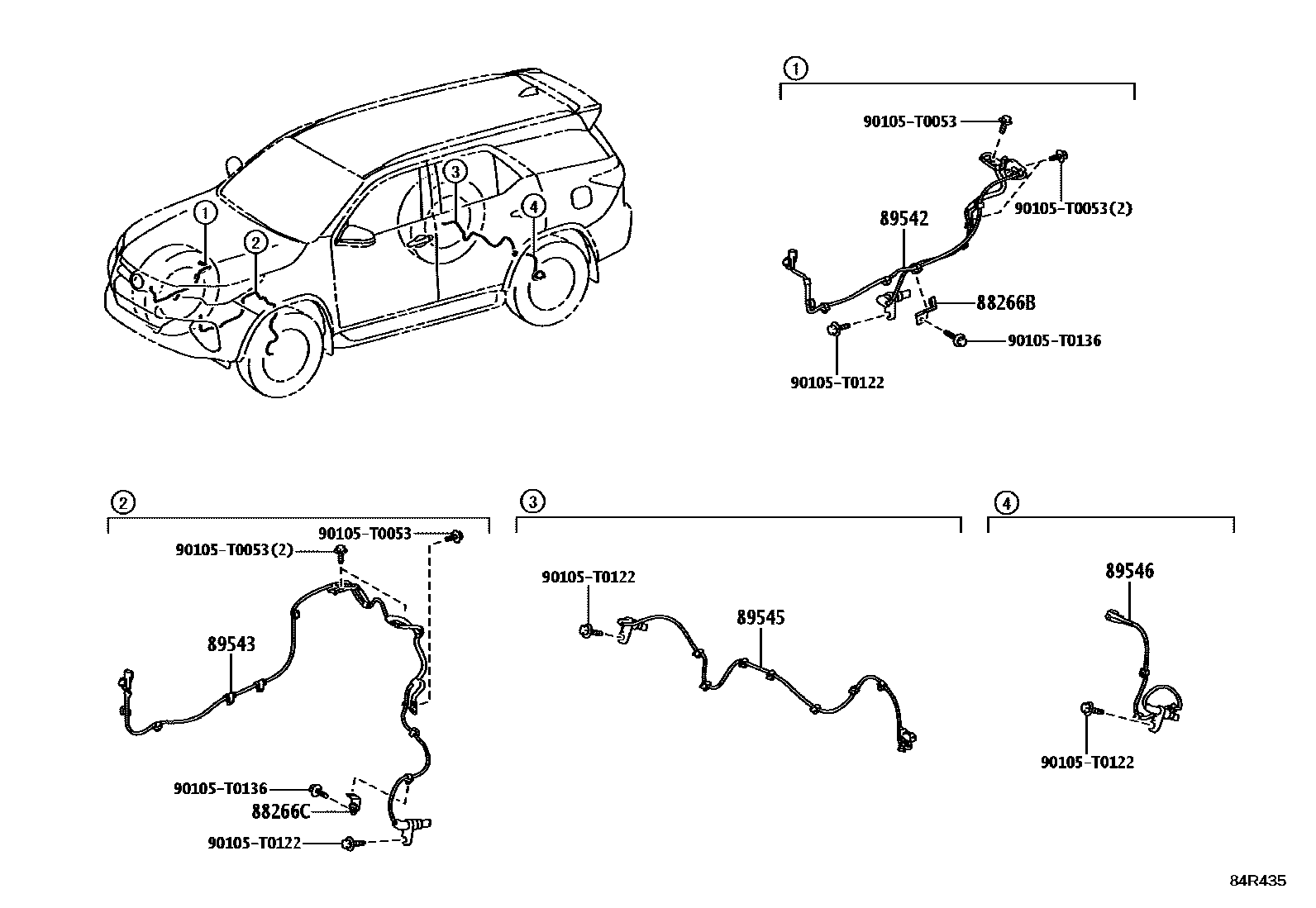

9 parts on this diagram · 1 diagram in section
