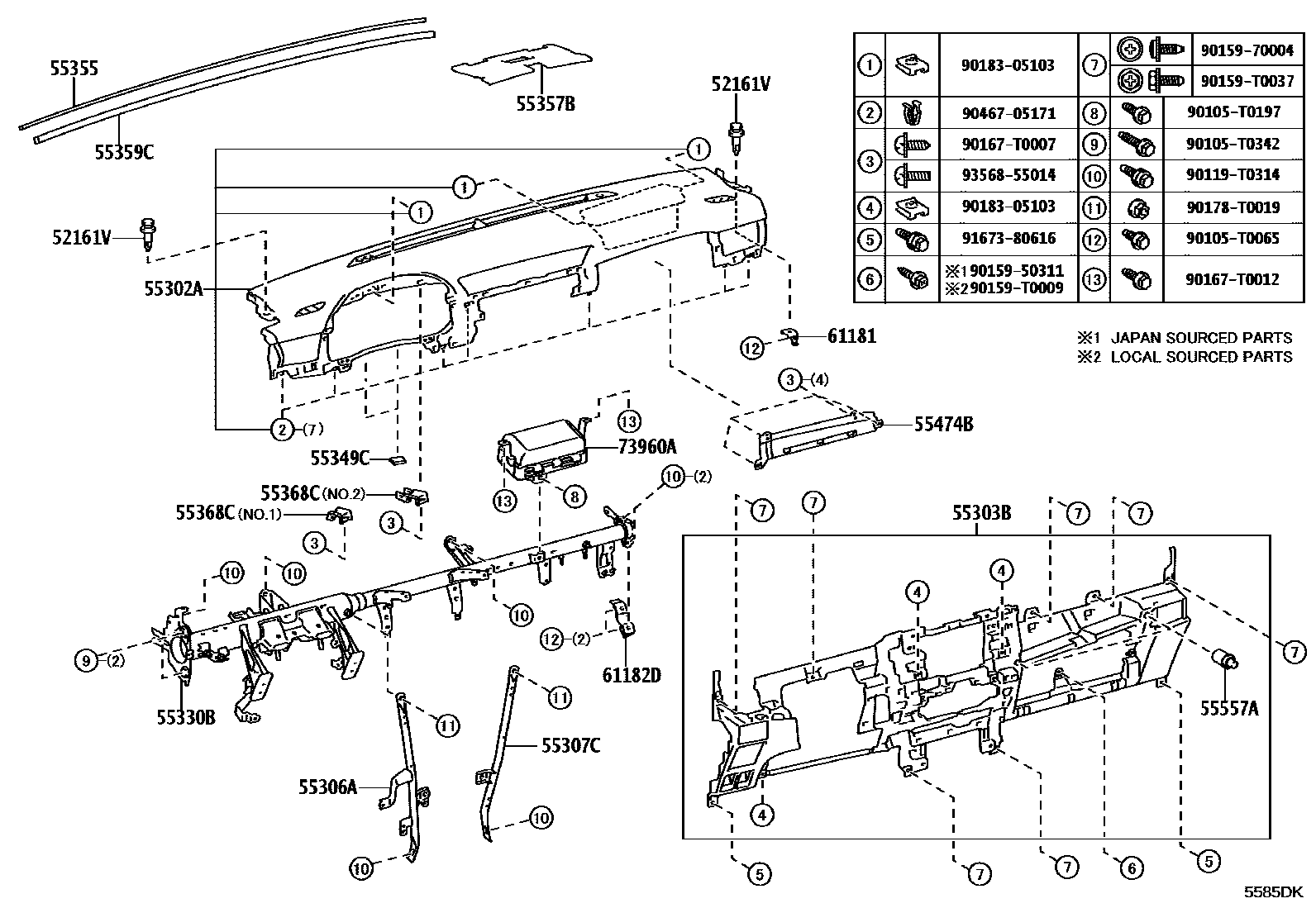

INSTRUMENT PANEL & GLOVE COMPARTMENT
52161VPIECE, INSTRUMENT PANEL
(L)
55302APANEL SUB-ASSY, INSTRUMENT, UPPER
BLACK,TRIM2#,4#
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
BLACK,TRIM2#,4#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
EXCEPT MADE IN TH
MADE IN THAILAND
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
EXCEPT MADE IN TH
MADE IN THAILAND
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55349CCUSHION, INSTRUMENT PANEL
55355CUSHION, INSTRUMENT PANEL, NO.1
55357BCUSHION, INSTRUMENT PANEL, NO.3
55359CCOSHION, INSTRUMENT PANEL, NO.5
55368CBRACKET, METER MOUNTING
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
55474BGARNISH, INSTRUMENT CLUSTER FINISH PANEL
BLACK,TRIM2#,4#
55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK
61181BRACKET, INSTRUMENT PANEL SIDE
61182DBRACKET, INSTRUMENT PANEL SIDE
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
90105T0065
main90105-T0065
90105T0197
main90105-T0197
90105T0342
90119T0314
main90119-T0314
9015950311
9015970004
90159T0009
main90159-T0009
90159T0037
main90159-T0037
90167T0007
90167T0012
main90167-T0012
90178T0019
main90178-T0019
9018305103
9046705171
9167380616
9356855014
31 parts on this diagram · 4 diagrams in section
