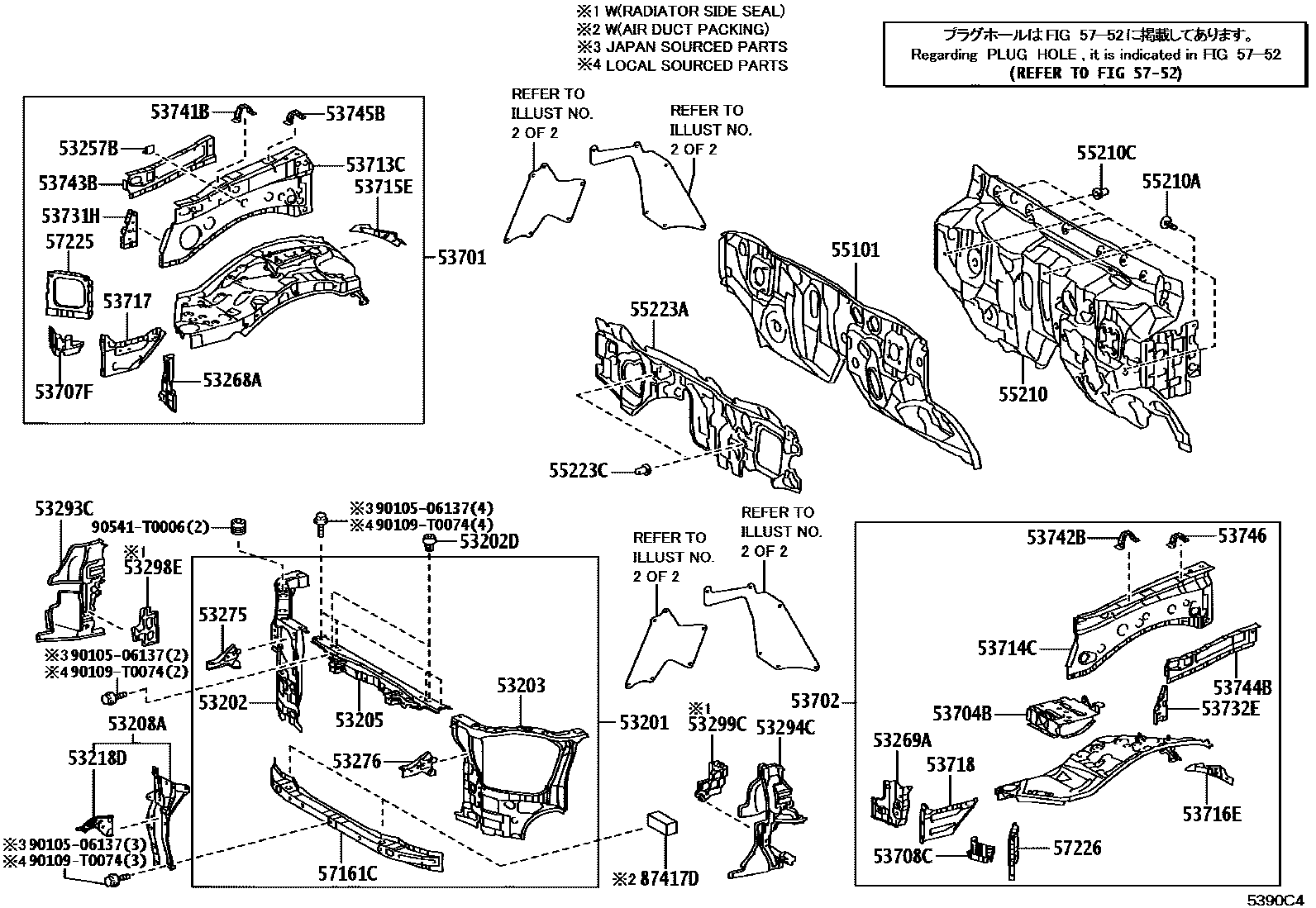

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53201SUPPORT SUB-ASSY, RADIATOR

main53201-KK060iGUN156,TGN156202408

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-KK020iGUN156,TGN156202408

53202DCUSHION, RADIATOR SUPPORT

main53384-0K040iGUN156,TGN156202408

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-KK020iGUN156,TGN156202408-202411

main53203-KK060iGUN156,TGN156202412

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-KK040iGUN156,TGN156202408

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-KK020iGUN156,TGN156202408

53218DEXTENSION, HOOD LOCK BRACE

main53218-KK010iGUN156,TGN156202408

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-35030iGUN156,TGN156202408

53268AREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-KK010iGUN156,TGN156202408

53269AREINFORCEMENT, RADIATOR MOUNTING, LH

main53269-KK010iGUN156,TGN156202408

53275BRACKET, HEADLAMP DOOR MOUNTING, NO.1 RH

main53275-KK010iGUN156,TGN156202408

53276BRACKET, HEADLAMP DOOR MOUNTING, NO.1 LH

main53276-KK010iGUN156,TGN156202408

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-KK280iGUN156,TGN156202408

MLM BASIC PACKAGE

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-KK280iGUN156,TGN156202408

MLM BASIC PACKAGE

53298ESEAL, RADIATOR SIDE, RH

main53298-KK010iTGN156202408

53299CSEAL, RADIATOR SIDE, LH

main53299-KK010iTGN156202408

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-KK390iGUN156202408

main53701-KK610iTGN156202408

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-KK120iGUN156,TGN156202408

53704BSUPPORT SUB-ASSY, BATTERY, LH

main53704-KK020iGUN156,TGN156202408

53707FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH

main53707-KK010iGUN156,TGN156202408

53708CGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER LH

main53708-KK010iGUN156,TGN156202408

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-KK020iGUN156,TGN156202408

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-KK020iGUN156,TGN156202408

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-0K030iGUN156,TGN156202408

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-0K030iGUN156,TGN156202408

53717PLATE, FENDER APRON, RH

main53717-KK010iGUN156,TGN156202408

53718PLATE, FENDER APRON, LH

main53718-KK010iGUN156,TGN156202408

53731HPATCH, FRONT FENDER APRON, RH

main53731-KK010iGUN156,TGN156202408

53732EREINFORCEMENT, FRONT FENDER APRON, LH

main53732-KK010iGUN156,TGN156202408

53741BPLATE, FENDER APRON REINFORCE, RH

main53741-KK030iGUN156,TGN156202408

53742BPLATE, FENDER APRON REINFORCE, LH

main53742-KK030iGUN156,TGN156202408

53743BREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-KK010iGUN156,TGN156202408

53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH

main53744-KK010iGUN156,TGN156202408

53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH

main53745-KK020iGUN156,TGN156202408

53746REINFORCEMENT, FRONT FENDER APRON, REAR LH

main53746-KK020iGUN156,TGN156202408

55101PANEL SUB-ASSY, DASH

main55101-KK220iTGN156..L202408

main55101-KK240iGUN156,TGN156..6FC202408

55210INSULATOR ASSY, DASH PANEL

main55210-0K360iGUN156,TGN156202408

55210ACLIP

main90467-T0004-A0iGUN156,TGN156202408

IVORY

55210CCLIP

main90467-T0032iGUN156,TGN156202408

55223AINSULATOR, DASH PANEL, OUTER

main55223-KK051iGUN156,TGN156202408

55223CCLIP

main90467-T0032iGUN156,TGN156202408

57161CMEMBER, FRONT CROSS

main57161-KK010iGUN156,TGN156202408-202411

main57161-KK040iGUN156,TGN156202412

57225BRACE, FRONT MOUNTING BRACKET, RH

main57225-KK010iGUN156,TGN156202408

57226BRACE, FRONT MOUNTING BRACKET, LH

main57226-KK010iGUN156,TGN156202408

5752

87417DPACKING, AIR DUCT

main87417-0K020iTGN156202408

9010506137

main90105-06137

90109T0074

main90109-T0074

90541T0006

main90541-T0006

49 parts on this diagram · 2 diagrams in section
