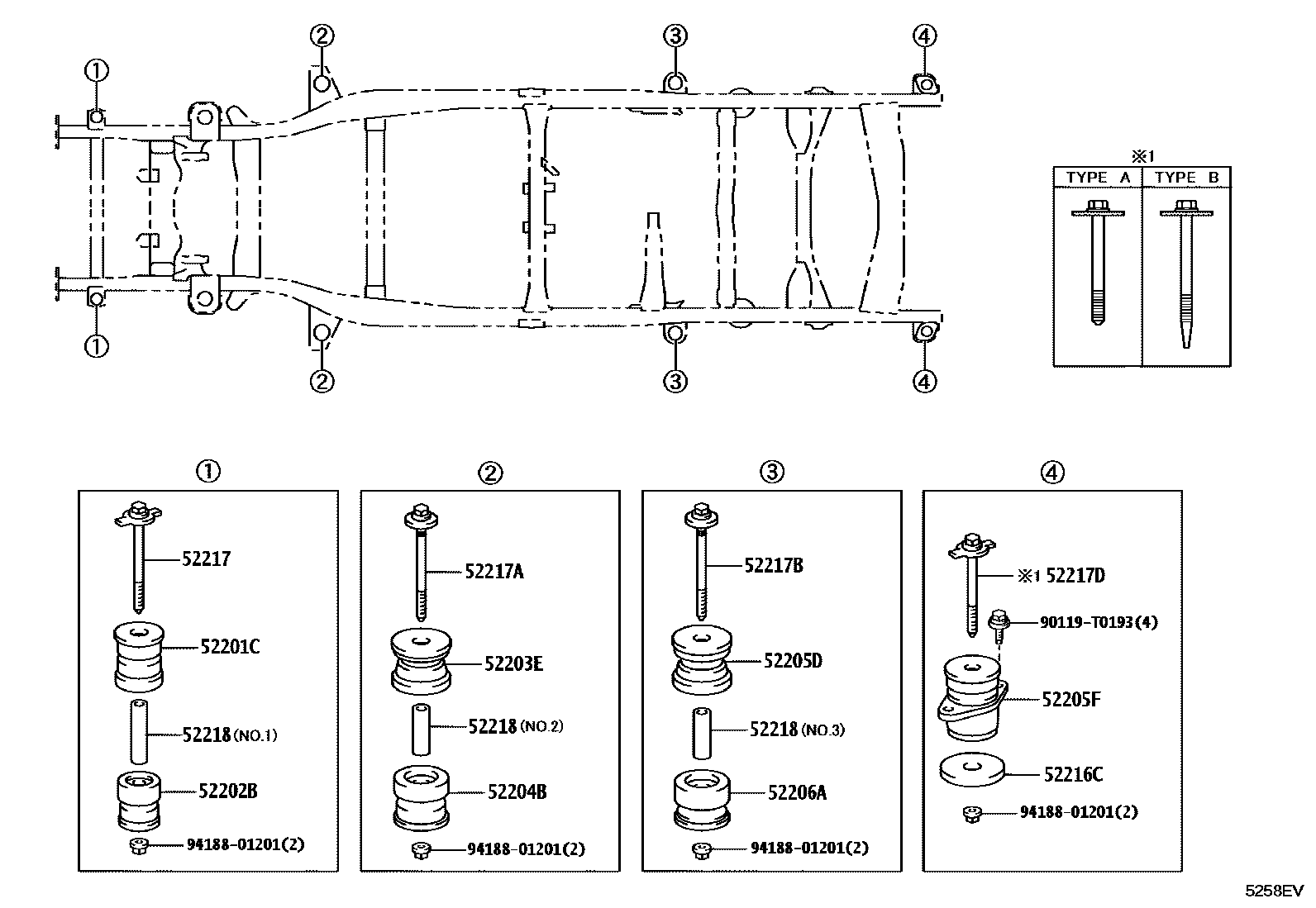

CAB MOUNTING & BODY MOUNTING

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-0K100iGUN156,TGN156202408

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-0K100iGUN156,TGN156202408

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-0K130iGUN156,TGN156202408

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-0K130iGUN156,TGN156202408

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52205-0K180iGUN156,TGN156202408

52205FCUSHION SUB-ASSY, CAB MOUNTING, NO.4 UPPER

main52207-0K090iGUN156,TGN156202408

52206ACUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER

main52206-0K140iGUN156,TGN156202408

52216CSTOPPER, CAB MOUNTING CUSHION

main52216-KK010iGUN156,TGN156202408

52217BOLT, BODY MOUNTING

main52217-0K010iGUN156,TGN156202408

52217ABOLT, BODY MOUNTING

main52217-0K020iGUN156,TGN156202408

52217BBOLT, BODY MOUNTING

main52217-0K020iGUN156,TGN156202408

52217DBOLT, BODY MOUNTING

main52217-0K050iGUN156,TGN156202408

TYPE A:REFER ILLUST.

main52217-0K060iGUN156,TGN156202408

TYPE B:REFER ILLUST.

52218HOLDER, BODY MOUNT BOLT SPACER, NO.1

main52218-0K010iGUN156,TGN156202408

NO.1

main52219-0K010iGUN156,TGN156202408

NO.2

main52219-KK010iGUN156,TGN156202408

NO.3

90119T0193

main90119-T0193

9418801201

main94188-01201

15 parts on this diagram · 1 diagram in section
