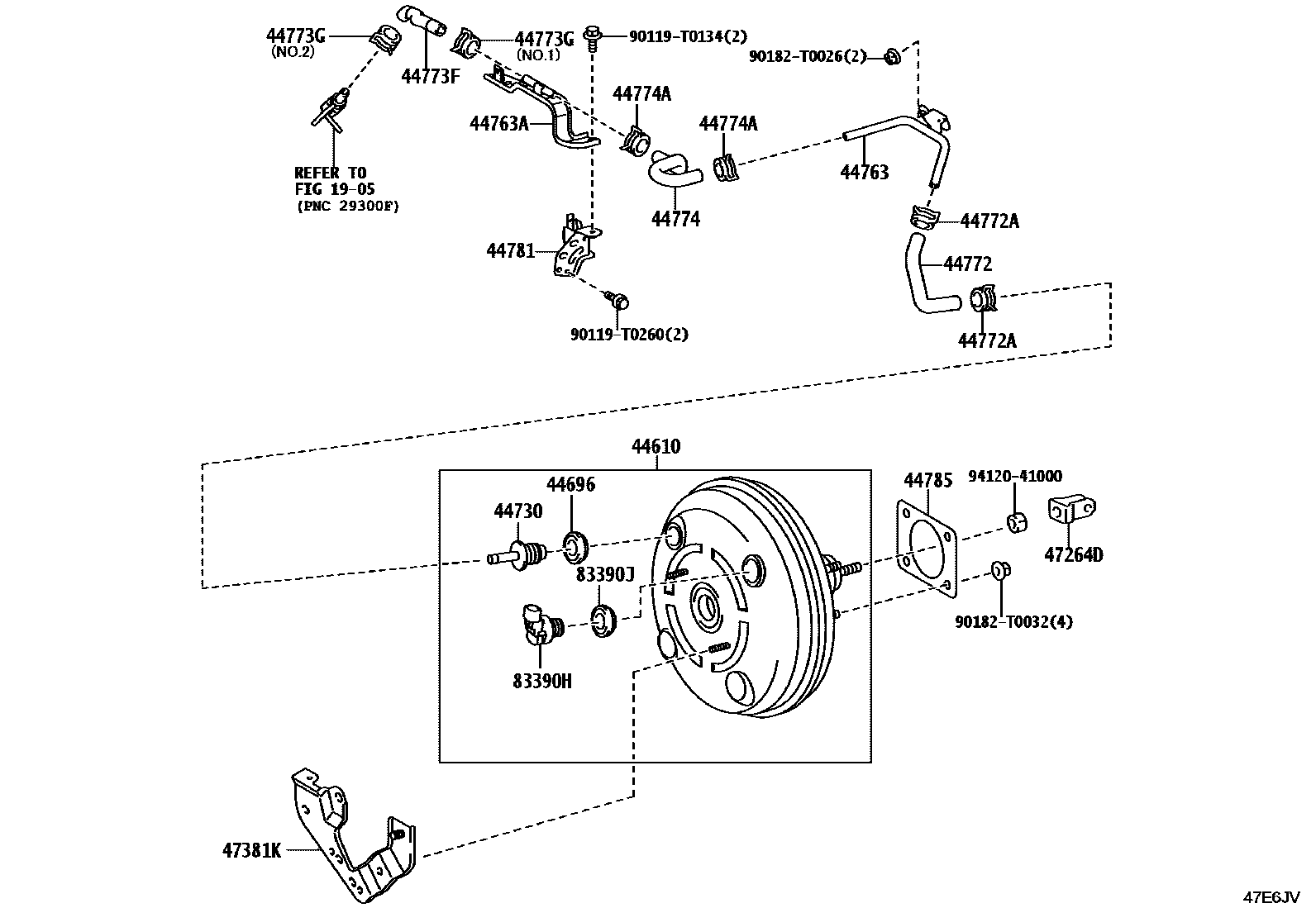

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1905

44610BOOSTER ASSY, BRAKE

main44610-0K560iTGN156202408

main44610-0K600iGUN156202408

44696GROMMET, CHECK VALVE

main90016-AT003iGUN156202408

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-60070iGUN156202408

44763TUBE, BOOSTER VACUUM

main44763-KK050iGUN156202408

main44763-KK160iTGN156202408

44763ATUBE, HOSE TO HOSE, NO.1

main44763-KK080iGUN156202408

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-KK070iGUN156202408

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90466-T0019iGUN156,TGN156202408

44773FHOSE, UNION TO CHECK VALVE

main44773-KK030iGUN156202408

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90466-T0019iGUN156202408

NO.1:REFER ILLUST.

main90467-16014iGUN156202408

NO.2:REFER ILLUST.

44774HOSE, UNION TO CONNECTOR TUBE

main44774-KK020iTGN156202408

main44774-KK040iGUN156202408

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90466-T0019iGUN156,TGN156202408

44781BRACKET, HOSE

main44781-KK020iGUN156202408

44785GASKET, BRAKE BOOSTER

main44785-17010iGUN156,TGN156202408

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-04010iGUN156,TGN156202408

47381KBRACKET, BRAKE BOOSTER TUBE CLAMP

main47381-0K071iGUN156,TGN156202408

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iGUN156202408

83390JGROMMET, VACUUM WARNING SWITCH

main90016-AT003iGUN156202408

90119T0134

main90119-T0134

90119T0260

main90119-T0260

90182T0026

main90182-T0026

90182T0032

main90182-T0032

9412041000

main94120-41000

23 parts on this diagram · 2 diagrams in section
