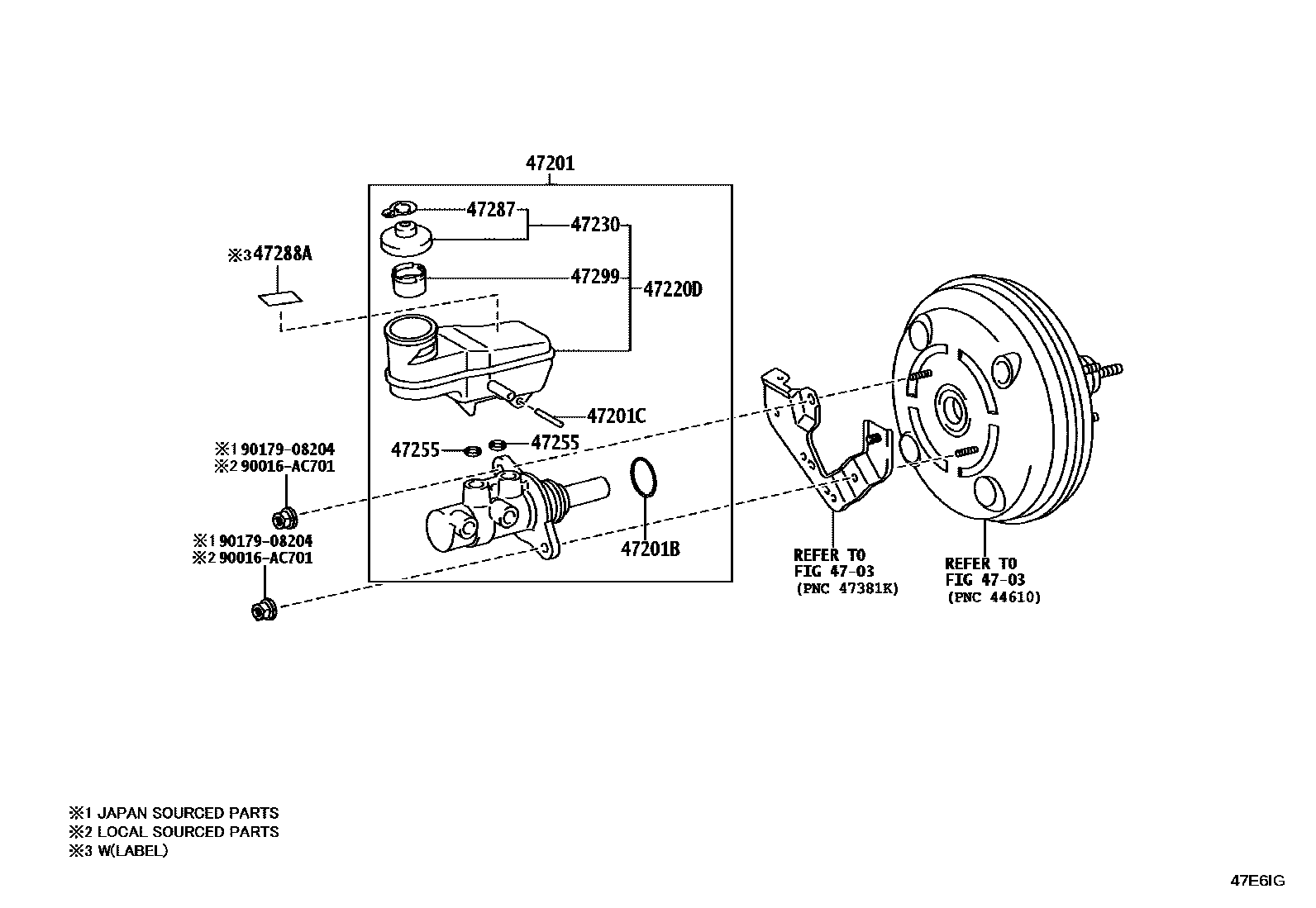

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-0K580iGUN156,TGN156..6FC202408

main47201-0K590iTGN156..L202408

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90016-AH903iGUN156,TGN156202408

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iGUN156,TGN156202408

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0K120iGUN156,TGN156..6FC202408

main47220-0K130iTGN156..L202408

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D221iGUN156,TGN156202408

47255GROMMET, MASTER CYLINDER RESERVOIR

main90016-AT001iGUN156,TGN156202408

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iGUN156,TGN156202408

47288ALABEL, BRAKE FLUID NOTICE

main47288-30010iTGN156202408

main47288-52010iGUN156202408

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-0D100iGUN156,TGN156202408

90016AC701

main90016-AC701

9017908204

main90179-08204

12 parts on this diagram · 2 diagrams in section
