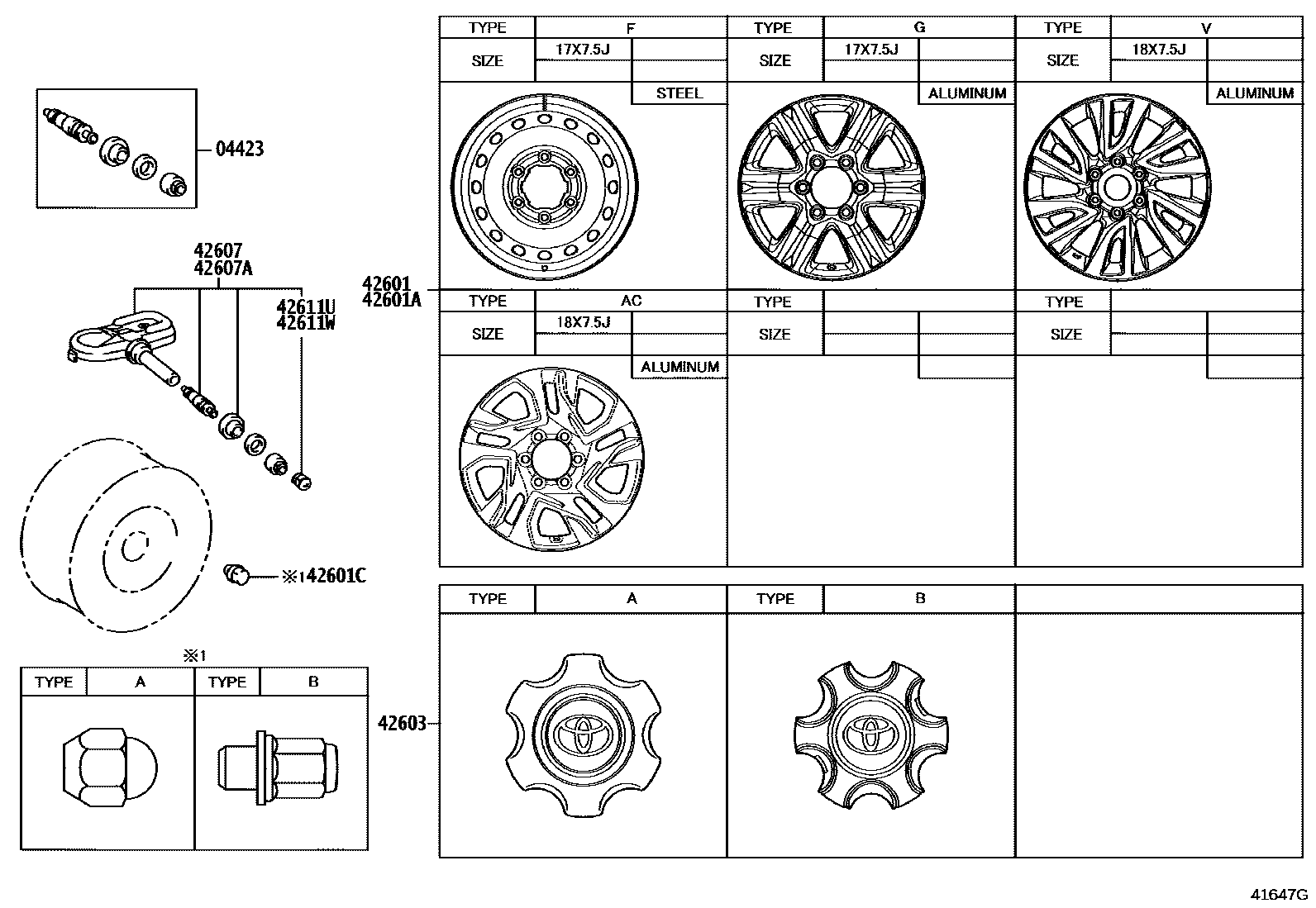

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
42601WHEEL, DISC
17X7.5J, #,TYPE F:REFER ILLUST.
17X7.5J, #,TYPE G:REFER ILLUST.
18X7.5J,#,TYPE V:REFER ILLUST.
18X7.5J,#,TIRE & DISC WHEEL-265/60R18, ALUMINUM,TYPE V:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X7.5J, #,TYPE F:REFER ILLUST.
17X7.5J, #,TYPE G:REFER ILLUST.
18X7.5J,#,TYPE V:REFER ILLUST.
18X7.5J,#,TIRE & DISC WHEEL-265/60R18, ALUMINUM,TYPE V:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
(J),T/P B:REF.ILLUST
(L),T/P B:REF.ILLUST
42603ORNAMENT SUB-ASSY, WHEEL HUB
*STE,TYPE A:REFER ILLUST.
*ALU,TYPE B:REFER ILLUST.
*ALU,TYPE B:REFER ILLUST.
*ALU,TIRE & DISC WHEEL-265/60R18, ALUMINUM,TYPE B:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
42611UCAP, TIRE VALVE
42611WCAP, TIRE VALVE (FOR SPARE)
9 parts on this diagram · 1 diagram in section
