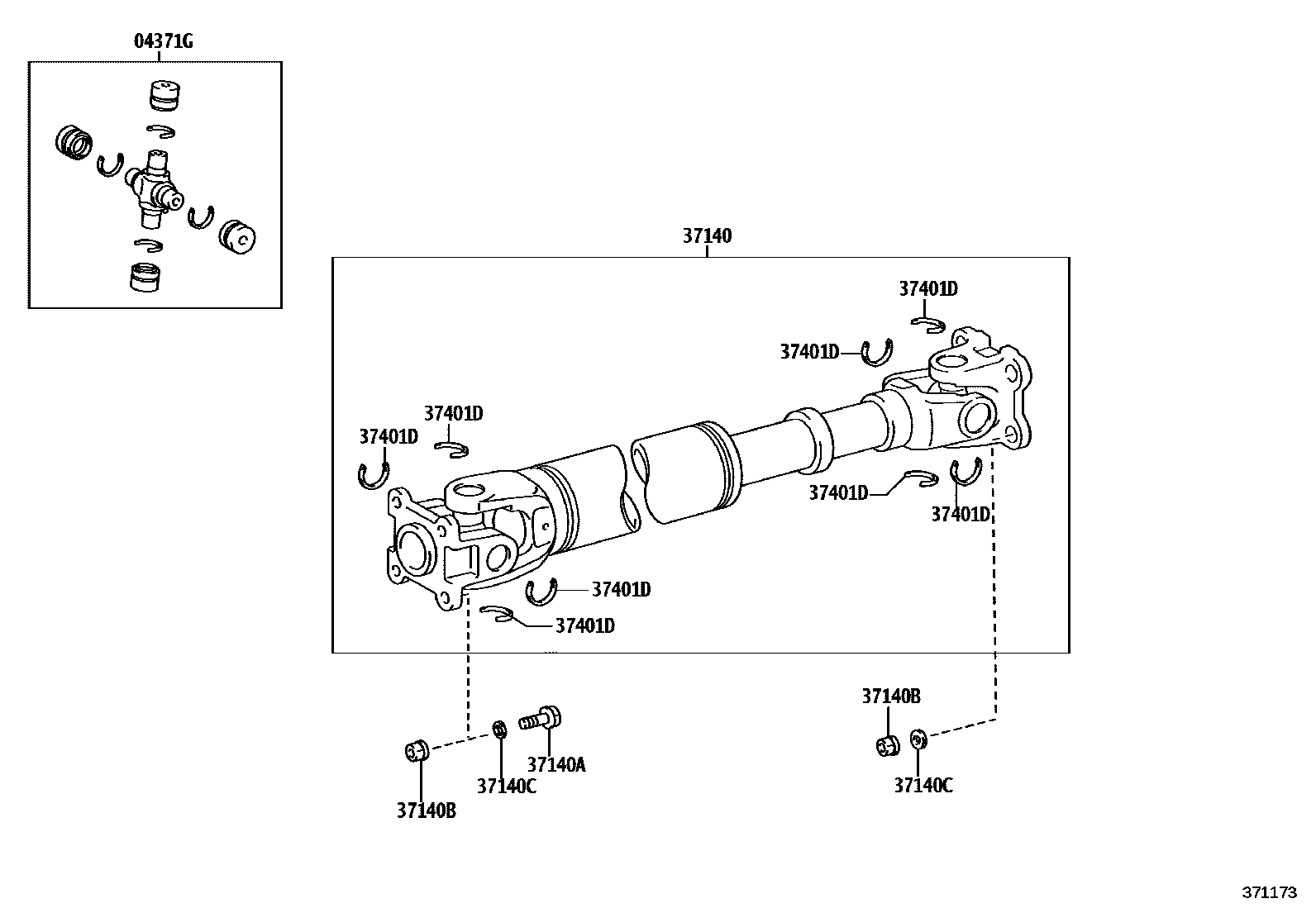

PROPELLER SHAFT & UNIVERSAL JOINT
04371GSPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT
37140ABOLT (F0R FRONT PROPELLER SHAFT)
37140BNUT (F0R FRONT PROPELLER SHAFT)
37140CWASHER (F0R FRONT PROPELLER SHAFT)
37401DRING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
T=2.19,MARK F
T=2.21,MARK G
T=2.23,MARK H
T=2.25,MARK J
T=2.27,MARK K
T=2.29,MARK 1
T=2.31,MARK 2
T=2.33,MARK 3
T=2.35,MARK 4
T=2.37,MARK 5
T=2.39,MARK 6
T=2.41,MARK 7
T=2.43,MARK 8
T=2.45,MARK N
T=2.47,MARK 10
T=2.49,MARK A
T=2.51,MARK B
T=2.53,MARK C
T=2.55,MARK D
T=2.57,MARK E
6 parts on this diagram · 2 diagrams in section
