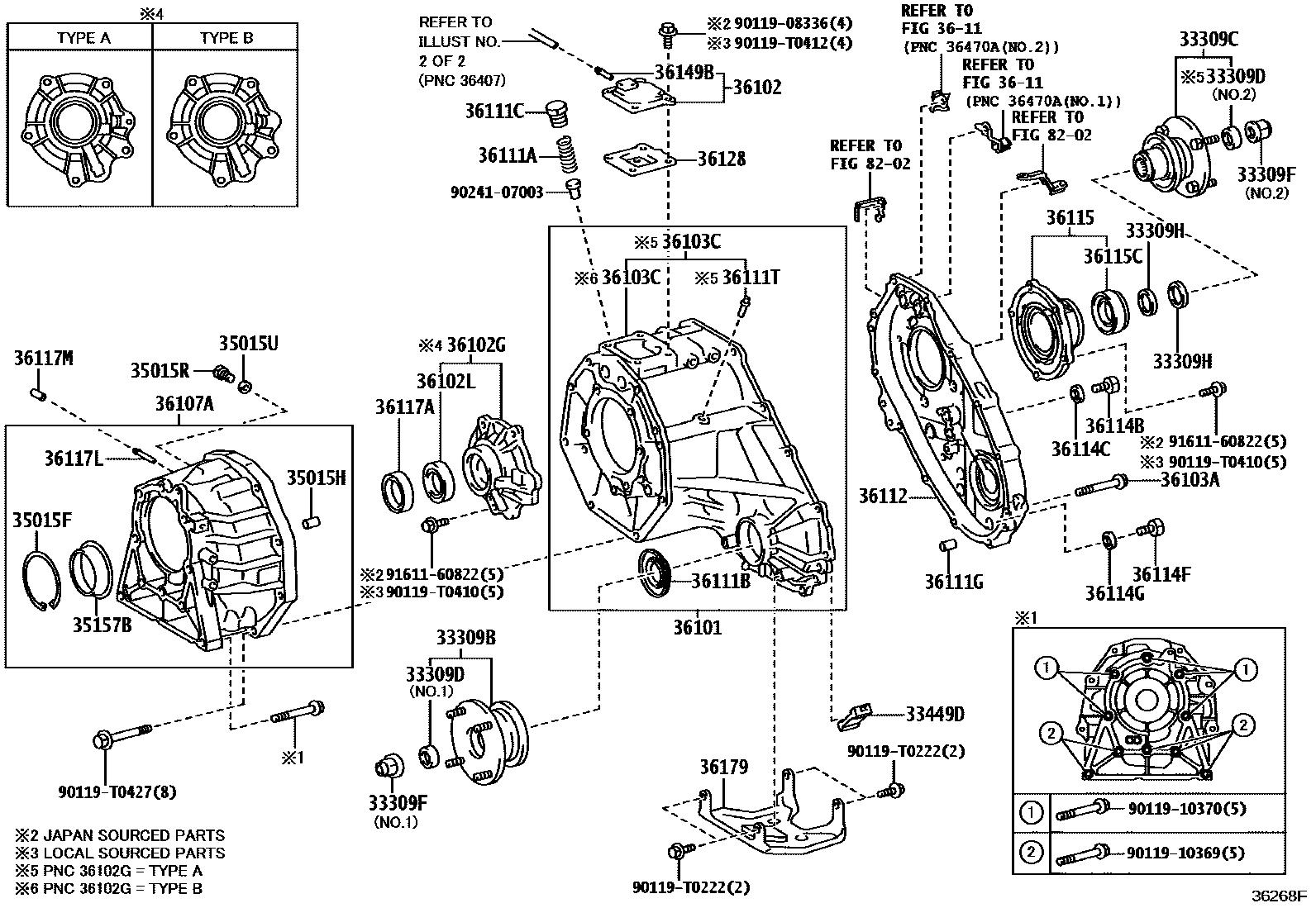

TRANSFER CASE & EXTENSION HOUSING

0001 1TRANSFER CASE 0002 1TRANSFER CASE 0003 1TRANSFER BREATHER HOSE

33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-0K012iGUN156,TGN156202408

PNC 36102G=TYPE B

main33309-35113iGUN156,TGN156202408

PNC 36102G=TYPE A

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-0K030iGUN156,TGN156202408

PNC 36102G=TYPE B

main33309-71030iGUN156,TGN156202408

PNC 36102G=TYPE A

33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90312-23001iGUN156,TGN156202408

PNC36102G=T/P A,NO.1

main90312-32006iGUN156,TGN156202408

PNC36102G=T/P A,NO.2

main90312-T0004iGUN156,TGN156202408

PNC36102G=T/P B,NO.1

33309FNUT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90179-22016iGUN156,TGN156202408

PNC36102G=T/P B,NO.1,PNC36102G=T/P A,NO.1

main90179-24011iGUN156,TGN156202408

PNC36102G=T/P B,NO.2,PNC36102G=T/P A,NO.2

33309HWASHER, TRANSFER OUTPUT SHAFT

main36275-71010iGUN156,TGN156202408

T=0.8,PNC 36102G=TYPE A,PNC 36102G=TYPE B

33449DMAGNET (FOR TRANSFER CASE)

main33449-32020iGUN156,TGN156202408

PNC 36102G=TYPE A,PNC 36102G=TYPE B

35015FRING, HOLE SNAP(FOR TRANSFER ADAPTER)

main90521-72001iGUN156202408

TYPE A:REFER 35-01

main90521-72001iGUN156202408

TYPE B:REFER 35-01

35015HPIN, RING(FOR TRANSFER CASE)

main90250-11003iGUN156202408

TYPE A:REFER 35-01

main90250-11003iGUN156202408

TYPE B:REFER 35-01

35015RPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSMISSION CASE ADAPTER)

main90341-18059iGUN156202408

TYPE A:REFER 35-01

main90341-18059iGUN156202408

TYPE B:REFER 35-01

35015URING, O(FOR TRANSMISSION CASE ADAPTER)

main90301-15004iGUN156202408

TYPE A:REFER 35-01

main90301-T0068iGUN156,TGN156..6FC202408

TYPE B:REFER 35-01

35157BRECEIVER, TRANSFER CASE REAR ADAPTER OIL

main35157-0K010iGUN156,TGN156..6FC202408

TYPE B:REFER 35-01

main35157-60010iGUN156202408

TYPE A:REFER 35-01

36101CASE SUB-ASSY, TRANSFER

main36101-71020iGUN156,TGN156202408

36102COVER SUB-ASSY, TRANSFER CASE

main36102-0K020iGUN156,TGN156202408

PNC 36102G=TYPE B

main36102-35040iGUN156,TGN156202408

PNC 36102G=TYPE A

36102GRETAINER SUB-ASSY, TRANSFER FRONT BEARING

main36102-0K010iGUN156,TGN156202408

TYPE B:REFER ILLUST.

main36102-35060iGUN156,TGN156202408

TYPE A:REFER ILLUST.

36102LSEAL, TYPE T OIL(FOR TRANSFER FRONT BEARING)

main90311-43008iGUN156,TGN156202408

PNC 36102G=TYPE A

main90311-T0071iGUN156,TGN156202408

PNC 36102G=TYPE B

36103ABOLT (FOR TRANSFER CASE)

main90119-08A28iGUN156,TGN156202408

*8-1.25PX55-30,PNC 36102G=TYPE A

main90119-T0411iGUN156,TGN156202408

*8-1.25PX55-30,PNC 36102G=TYPE B

36103CCASE, TRANSFER, FRONT

main36101-71020iGUN156,TGN156202408

PNC 36102G=TYPE A

main36111-0K031iGUN156,TGN156202408

PNC 36102G=TYPE B

36107AADAPTER SUB-ASSY, TRANSFER

main35015-0K020iGUN156,TGN156..6FC202408

TYPE B:REFER 35-01

main35015-71030iGUN156202408

TYPE A:REFER 35-01

main36107-0K020iTGN156..L202408

TYPE B:REFER 33-01

3611

36111ASPRING, COMPRESSION (FOR TRANSFER CASE)

main90501-20091iGUN156,TGN156202408

PNC 36102G=TYPE A

main90501-T0034iGUN156,TGN156202408

PNC 36102G=TYPE B

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-41017iGUN156,TGN156202408

PNC 36102G=TYPE A

main90311-T0082iGUN156,TGN156202408

PNC 36102G=TYPE B

36111CPLUG (FOR TRANSFER CASE)

main90341-14012iGUN156,TGN156202408

PNC 36102G=TYPE A

main90341-T0013iGUN156,TGN156202408

PNC 36102G=TYPE B

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214iGUN156,TGN156202408

L=14,OD=10,PNC 36102G=TYPE A

main90250-T0026iGUN156,TGN156202408

L=14,OD=10,PNC 36102G=TYPE B

36111TTUBE (FOR TRANSFER CASE)

main90441-05001iGUN156,TGN156202408

PNC 36102G=TYPE A

sub90406-T0007

36112CASE, TRANSFER, REAR

main36112-0K030iGUN156,TGN156202408

PNC 36102G=TYPE B

main36112-71010iGUN156,TGN156202408

PNC 36102G=TYPE A

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iGUN156,TGN156202408

PNC 36102G=TYPE A,PNC 36102G=TYPE B

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90430-18008iGUN156,TGN156202408

PNC 36102G=TYPE A

main90430-T0021iGUN156,TGN156202408

PNC 36102G=TYPE B

36114FPLUG (FOR TRANSFER DRAIN)

main90341-18006iGUN156,TGN156202408

PNC 36102G=TYPE A,PNC 36102G=TYPE B

36114GGASKET (FOR TRANSFER DRAIN PLUG)

main90430-18008iGUN156,TGN156202408

PNC 36102G=TYPE A

main90430-T0021iGUN156,TGN156202408

PNC 36102G=TYPE B

36115HOUSING, TRANSFER EXTENSION

main36105-0K020iGUN156,TGN156202408

PNC 36102G=TYPE B

main36105-71010iGUN156,TGN156202408

PNC 36102G=TYPE A

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-45034iGUN156,TGN156202408

PNC 36102G=TYPE A

main90311-T0072iGUN156,TGN156202408

PNC 36102G=TYPE B

36117ASEAL, OIL(FOR TRANSFER ADAPTER)

main90311-43013iGUN156202408

TYPE A:REFER 35-01

main90311-43013iGUN156202408

TYPE B:REFER 35-01

main90311-T0080iTGN156..L202408

TYPE B:REFER 33-01

36117LTUBE(FOR TRANSFER ADAPTER)

main90441-05001iGUN156,TGN156202408

sub90406-T0007

36117MCAP(FOR TRANSFER ADAPTER)

main90339-04024iGUN156,TGN156202408

36128DEFLECTOR, BREATHER OIL

main36128-0K020iGUN156,TGN156202408

PNC 36102G=TYPE B

main36128-35060iGUN156,TGN156202408

PNC 36102G=TYPE A

36149BTUBE, TRANSFER BREATHER

main90406-T0007iGUN156,TGN156202408

PNC 36102G=TYPE B

main90441-05001iGUN156,TGN156202408

PNC 36102G=TYPE A

sub90406-T0007

36179PROTECTOR, TRANSFER CASE LOWER

main36179-0K011iGUN156,TGN156202408

8202

9011908336

main90119-08336

9011910369

main90119-10369

9011910370

main90119-10370

90119T0222

main90119-T0222

90119T0410

main90119-T0410

90119T0412

main90119-T0412

90119T0427

main90119-T0427

9024107003

main90241-07003

9161160822

main91611-60822

47 parts on this diagram · 3 diagrams in section
