THROTTLE LINK & VALVE LEVER (ATM)

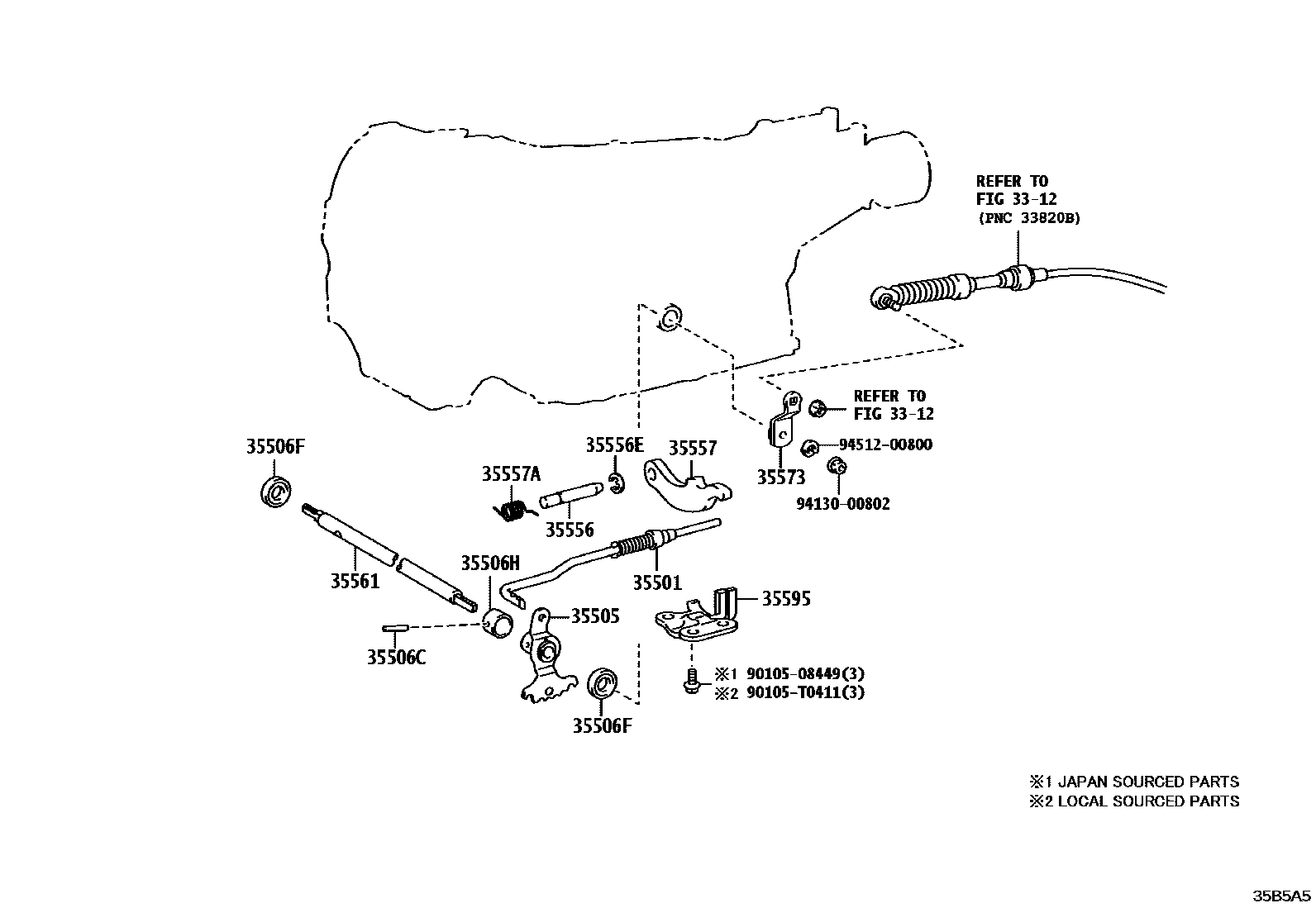

Parts diagram
3312
35501ROD SUB-ASSY, PARKING LOCK
main35501-71020i¥1,610202408
TYPE A:REFER 35-01
main35501-71020i¥1,610202408
TYPE B:REFER 35-01
35505LEVER SUB-ASSY, MANUAL VALVE
main35505-71020i¥1,430202408
TYPE A:REFER 35-01
main35505-71020i¥1,430202408
TYPE B:REFER 35-01
35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
main90254-04011i¥160202408
TYPE A:REFER 35-01
main90254-04011i¥160202408
TYPE B:REFER 35-01
35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
main90311-12002i¥270202408
TYPE A:REFER 35-01
main90311-T0093i¥190202408
TYPE B:REFER 35-01
35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)
main90560-20025i¥210202408
TYPE A:REFER 35-01
main90560-20025i¥210202408
TYPE B:REFER 35-01
35556SHAFT, PARKING LOCK PAWL
main35556-60020i¥380202408
TYPE A:REFER 35-01
main35556-60020i¥380202408
TYPE B:REFER 35-01
35556ERING, E (FOR PARKING LOCK PAWL SHAFT)
main90523-08021i¥110202408
TYPE A:REFER 35-01
main90523-08021i¥110202408
TYPE B:REFER 35-01
35557PAWL, PARKING LOCK
main35557-71010i¥2,810202408
TYPE A:REFER 35-01
main35557-71010i¥2,810202408
TYPE B:REFER 35-01
35557ASPRING, TORSION (FOR PARKING LOCK PAWL)
main90949-03123i¥120202408
TYPE A:REFER 35-01
main90949-03123i¥120202408
TYPE B:REFER 35-01
35561SHAFT, MANUAL VALVE LEVER
main35561-60030i¥1,860202408
TYPE A:REFER 35-01
main35561-60030i¥1,860202408
TYPE B:REFER 35-01
35573LEVER, TRANSMISSION CONTROL SHAFT, LH
main35573-0K010i202408
(L),TYPE B:REF.35-01
main35573-71010i¥510202408
TYPE A:REFER 35-01
main35573-71010i¥510202408
(J),TYPE B:REF.35-01
35595BRACKET, PARKING LOCK PAWL
main35595-71010i¥800202408
TYPE A:REFER 35-01
main35595-71010i¥800202408
TYPE B:REFER 35-01
9010508449
main90105-08449¥80
90105T0411
main90105-T0411
9413000802
main94130-00802¥90
9451200800
main94512-00800¥80

17 parts on this diagram · 1 diagram in section
