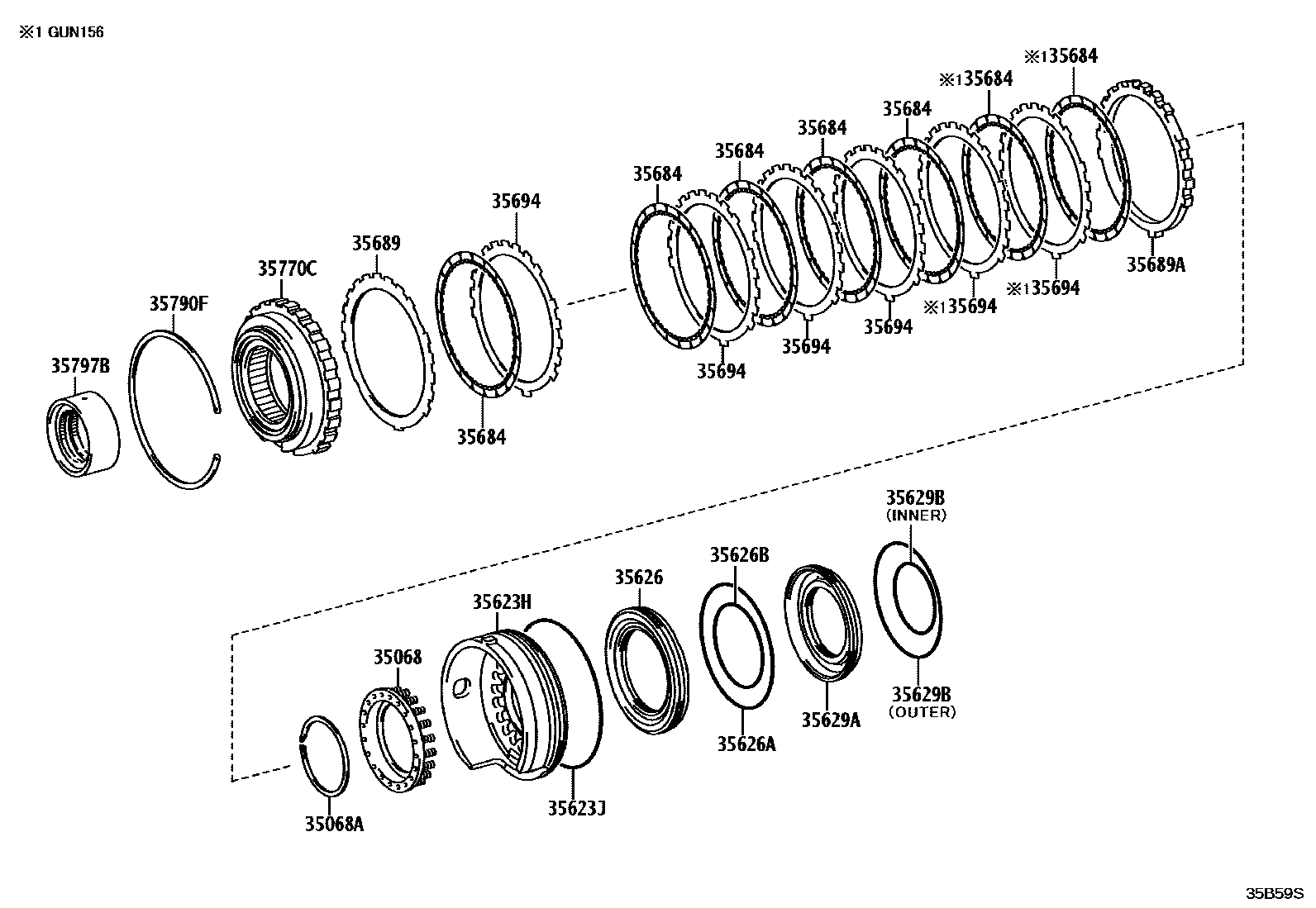

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)
35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
TYPE B:REFER 35-01
TYPE A:REFER 35-01
35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)
TYPE A:REFER 35-01
35623HPISTON, 1ST & REVERSE BRAKE
TYPE B:REFER 35-01
TYPE B:REFER 35-01
TYPE A:REFER 35-01
35623JRING, O (FOR 1ST & REVERSE BRAKE)
TYPE A:REFER 35-01
TYPE B:REFER 35-01
35626SLEEVE, BRAKE REACTION
TYPE A:REFER 35-01
35626ARING (FOR BRAKE REACTION SLEEVE OUTER)
TYPE A:REFER 35-01
TYPE B:REFER 35-01
35626BRING (FOR BRAKE REACTION SLEEVE INNER)
TYPE A:REFER 35-01
TYPE B:REFER 35-01
35629APISTON, BRAKE, NO.4
TYPE A:REFER 35-01
35629BRING, O (FOR BRAKE PISTON NO.4)
T/P A:REF35-01,INNER
T/P A:REF35-01,OUTER
T/P B:REF35-01,OUTER
T/P B:REF35-01,INNER
35684DISC, BRAKE, NO.4
TYPE B:REFER 35-01
TYPE A:REFER 35-01
35689FLANGE, BRAKE, NO.4
T=1.8,MARK 0,TYPE A:REFER 35-01
T=1.97,MARK 1,TYPE A:REFER 35-01
T=2.11,MARK 3,TYPE A:REFER 35-01
T=2.25,MARK 4,TYPE A:REFER 35-01
T=2.39,MARK 5,TYPE B:REFER 35-01
T=2.53,MARK 7,TYPE B:REFER 35-01
T=2.67,MARK 8,TYPE A:REFER 35-01
T=2.81,MARK10,TYPE A:REFER 35-01
T=2.95,MARK 11,TYPE B:REFER 35-01
T=3.09,MARK 12,TYPE A:REFER 35-01
T=3.23,MARK 14,TYPE A:REFER 35-01
35689AFLANGE, BRAKE, NO.4
TYPE A:REFER 35-01
35694PLATE, BRAKE, NO.4
TYPE B:REFER 35-01
TYPE A:REFER 35-01
35770CCLUTCH ASSY, 1WAY NO.3
TYPE B:REFER 35-01
TYPE A:REFER 35-01
35790FRING, HOLE SNAP(FOR 1WAY CLUTCH)
TYPE B:REFER 35-01,TYPE A:REFER 35-01
35797BRACE, 1 WAY CLUTCH, INNER
TYPE B:REFER 35-01,TYPE A:REFER 35-01
16 parts on this diagram · 1 diagram in section
