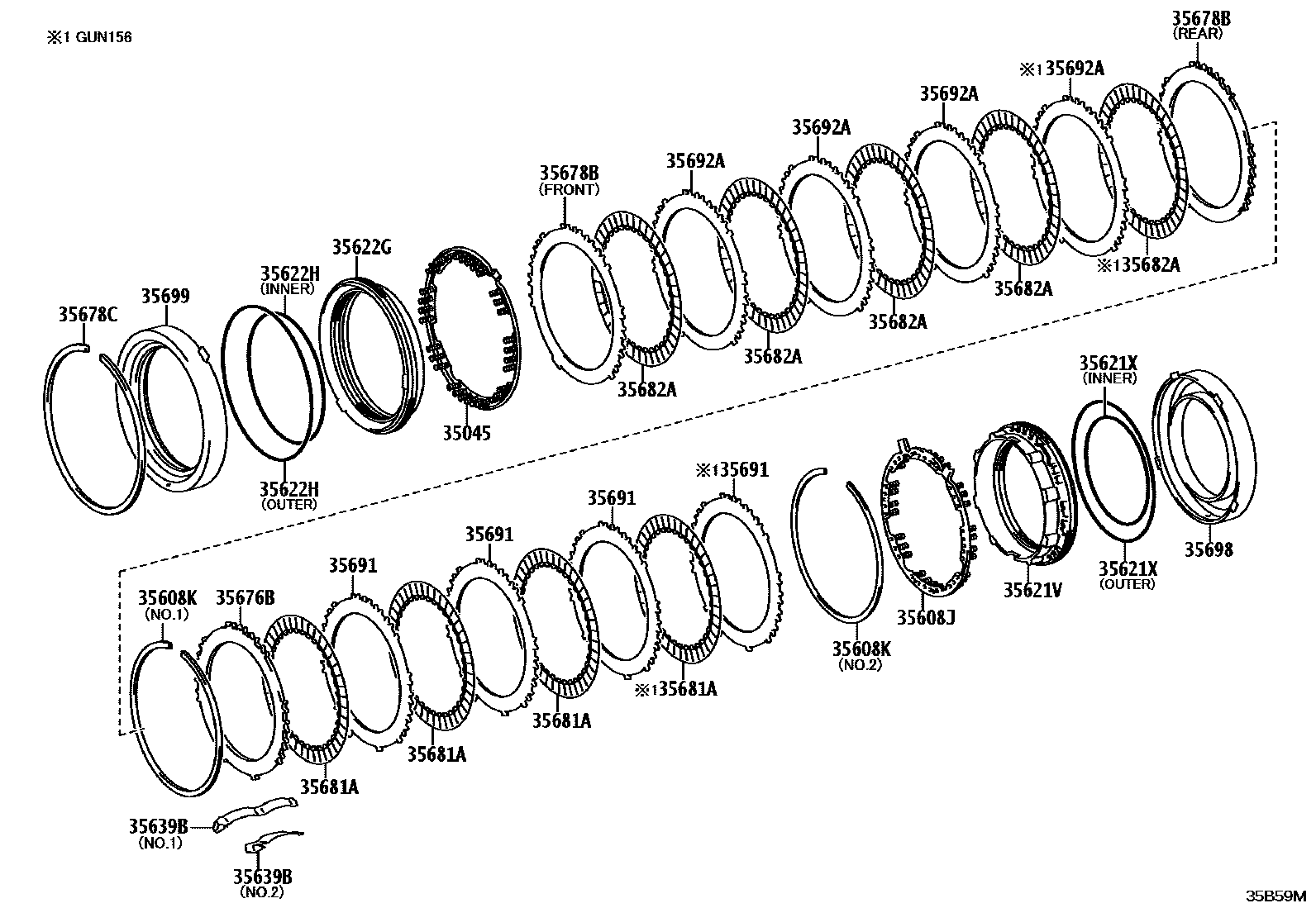

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35045SPRING SUB-ASSY, BRAKE PISTON RETURN,NO.2
TYPE B:REFER 35-01
TYPE A:REFER 35-01
35608JSPRING SUB-ASSY, BRAKE PISTON RETURN
TYPE B:REFER 35-01
TYPE A:REFER 35-01
35608KRING, SNAP (FOR BRAKE PISTON RETURN SPRING)
T/P A:REF.35-01,NO.1
T/P A:REF.35-01,NO.2
T/P B:REF.35-01,NO.2
T/P B:REF.35-01,NO.1
35621VPISTON, BRAKE, NO.1
TYPE B:REFER 35-01
TYPE B:REFER 35-01
TYPE A:REFER 35-01
35621XRING, O (FOR BRAKE PISTON NO.1)
T/P A:REF35-01,OUTER
T/P A:REF35-01,INNER
T/P B:REF35-01,INNER
T/P B:REF35-01,OUTER
35622GPISTON, BRAKE, NO.2
TYPE B:REFER 35-01
TYPE B:REFER 35-01
TYPE A:REFER 35-01
35622HRING, O (FOR BRAKE PISTON NO.2)
T/P A:REF35-01,INNER
T/P A:REF35-01,OUTER
T/P B:REF35-01,OUTER
T/P B:REF35-01,INNER
35639BSPRING, BRAKE PLATE STOPPER
T/P A:REF.35-01,NO.1
T/P B:REF.35-01,NO.1
T/P A:REF.35-01,NO.2
T/P B:REF.35-01,NO.2
35676BFLANGE, BRAKE, NO.1
T=4.9,TYPE A:REFER 35-01
T=4.9,TYPE B:REFER 35-01
T=5.0,TYPE A:REFER 35-01
T=5.0,TYPE B:REFER 35-01
T=5.1,TYPE A:REFER 35-01
T=5.1,TYPE B:REFER 35-01
T=5.2,TYPE A:REFER 35-01
T=5.2,TYPE B:REFER 35-01
T=5.3,TYPE A:REFER 35-01
T=5.3,TYPE B:REFER 35-01
T=5.4,TYPE A:REFER 35-01
T=5.4,TYPE B:REFER 35-01
T=5.5,TYPE A:REFER 35-01
T=5.5,TYPE B:REFER 35-01
T=5.6,TYPE A:REFER 35-01
T=5.6,TYPE B:REFER 35-01
T=5.7,TYPE A:REFER 35-01
T=5.7,TYPE B:REFER 35-01
T=5.8,TYPE A:REFER 35-01
T=5.8,TYPE B:REFER 35-01
35678BFLANGE, BRAKE, NO.2
T=3.8,T/P A:REF35-01,REAR
T=3.8,T/P B:REF35-01,REAR
T=2.0,T/P A:REF35-01,FRONT
T=2.0,T/P B:REF35-01,FRONT
T=2.1,T/P A:REF35-01,FRONT
T=2.1,T/P B:REF35-01,FRONT
T=2.2,T/P A:REF35-01,FRONT
T=2.2,T/P B:REF35-01,FRONT
T=2.3,T/P A:REF35-01,FRONT
T=2.3,T/P B:REF35-01,FRONT
T=2.4,T/P A:REF35-01,FRONT
T=2.4,T/P B:REF35-01,FRONT
T=2.5,T/P A:REF35-01,FRONT
T=2.5,T/P B:REF35-01,FRONT
T=2.6,T/P A:REF35-01,FRONT
T=2.6,T/P B:REF35-01,FRONT
T=2.7,T/P A:REF35-01,FRONT
T=2.7,T/P B:REF35-01,FRONT
T=2.8,T/P A:REF35-01,FRONT
T=2.8,T/P B:REF35-01,FRONT
35678CRING, SNAP (FOR BRAKE NO.2)
TYPE A:REFER 35-01
TYPE B:REFER 35-01
35681ADISC, BRAKE, NO.1
TYPE B:REFER 35-01
TYPE A:REFER 35-01
35682ADISC, BRAKE, NO.2
TYPE B:REFER 35-01
TYPE A:REFER 35-01
35691PLATE, BRAKE, NO.1
TYPE B:REFER 35-01
TYPE A:REFER 35-01
35692APLATE, BRAKE, NO.2
TYPE B:REFER 35-01
TYPE A:REFER 35-01
35698CYLINDER, BRAKE, NO.1
TYPE A:REFER 35-01
TYPE B:REFER 35-01
35699CYLINDER, BRAKE, NO.2
TYPE A:REFER 35-01
TYPE B:REFER 35-01
17 parts on this diagram · 1 diagram in section
