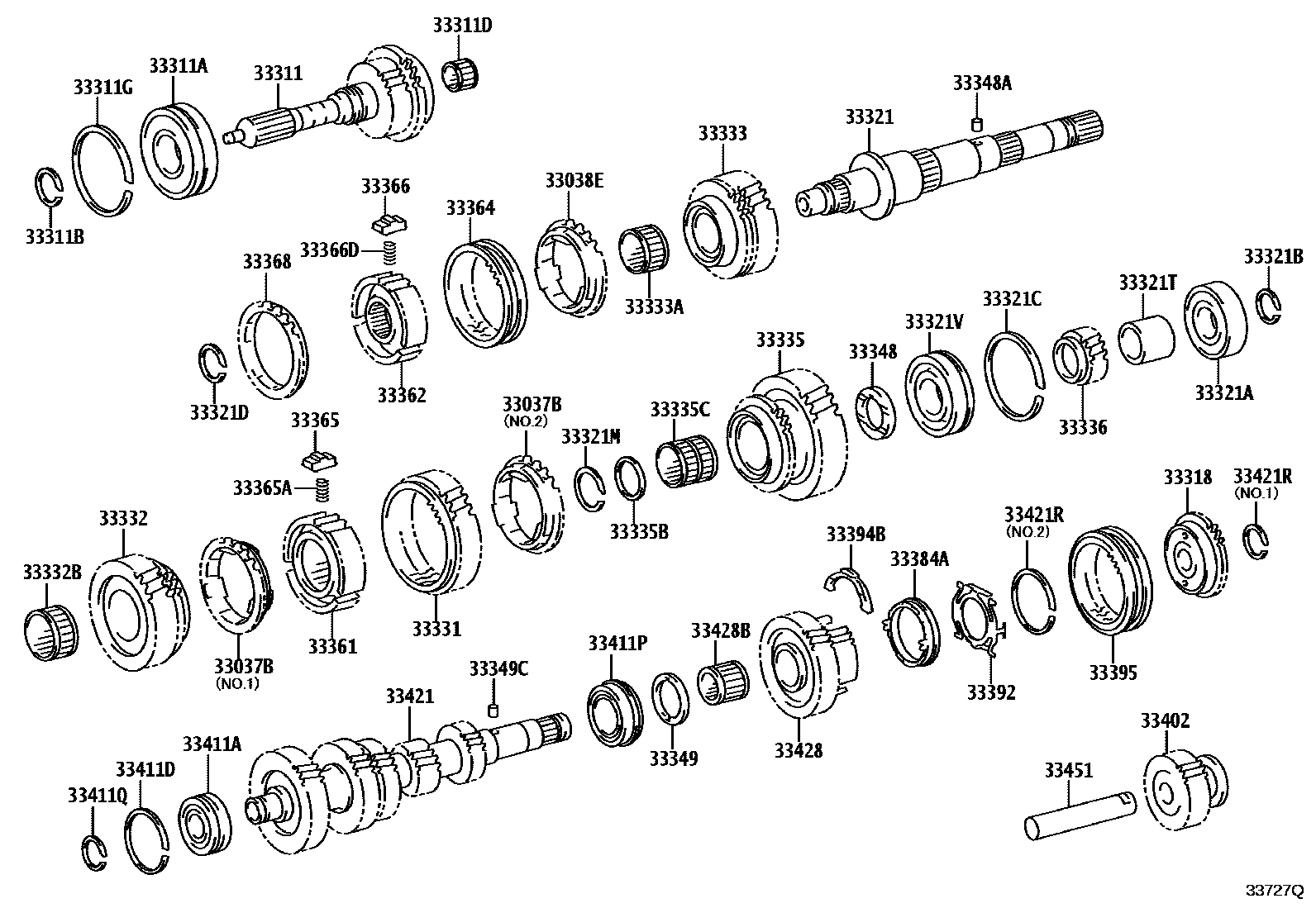

TRANSMISSION GEAR (MTM)
33037BRING SET, SYNCHRONIZER, NO.1
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
33038ERING SET, SYNCHRONIZER, NO.2
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.10,MARK A
T=2.15,MARK B
T=2.20,MARK C
T=2.25,MARK D
T=2.30,MARK E
T=2.35,MARK F
T=2.40,MARK G
33311DBEARING, INPUT SHAFT
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33318PIECE, GEAR SPLINE, NO.5
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=2.65,MARK A
T=2.70,MARK B
T=2.75,MARK C
T=2.80,MARK D
T=2.85,MARK E
T=2.90,MARK F
T=2.95,MARK G
T=3.00,MARK H
T=3.05,MARK J
T=3.10,MARK K
T=3.15,MARK L
T=3.20,MARK M
T=3.25,MARK N
T=3.30,MARK P
T=3.35,MARK Q
T=3.40,MARK R
T=3.45,MARK S
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.7
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=1.80,MARK A
T=1.85,MARK B
T=1.90,MARK C
T=1.95,MARK D
T=2.00,MARK E
T=2.05,MARK F
T=2.10,MARK G
33321MRING, SHAFT SNAP (FOR BEARING)
T=2.30,MARK A
T=2.35,MARK B
T=2.40,MARK C
T=2.45,MARK D
T=2.50,MARK E
T=2.55,MARK F
T=2.60,MARK G
33321TSPACER (FOR OUTPUT SHAFT)
33321VBEARING (FOR OUTPUT SHAFT CENTER)
33331GEAR, REVERSE
33332GEAR, 2ND
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333GEAR, 3RD
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33335GEAR, 1ST
33335BSPACER(FOR 1ST GEAR BEARING)
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336GEAR, 5TH
33348WASHER, 1ST GEAR THRUST
33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)
33349WASHER, 5TH GEAR THRUST
33349CPIN (FOR 5TH GEAR THRUST WASHER)
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33368RING, SYNCHRONIZER, NO.2
33384ARING, SYNCHRONIZER, OUTER NO.3
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33394BKEY, SYNCHROMESH SHIFTING, NO.3
33395SLEEVE, TRANSMISSION HUB, NO.3
33402GEAR SUB-ASSY, REVERSE IDLER
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
T=1.07,OD=62
33411PBEARING, COUNTERSHAFT CENTER
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
T=2.10,MARK A
T=2.15,MARK B
T=2.20,MARK C
T=2.25,MARK D
T=2.30,MARK E
T=2.35,MARK F
33421GEAR, COUNTER
33421RRING, SHAFT SNAP(FOR COUNTER GEAR REAR)
T=2.85,MARK A,NO.1:REFER ILLUST.
T=2.90,MARK B,NO.1:REFER ILLUST.
T=2.95,MARK C,NO.1:REFER ILLUST.
T=3.00,MARK D,NO.1:REFER ILLUST.
T=3.05,MARK E,NO.1:REFER ILLUST.
T=3.10,MARK F,NO.1:REFER ILLUST.
T=3.15,MARK G,NO.1:REFER ILLUST.
T=1.00,NO.2:REFER ILLUST.
33428GEAR, COUNTERSHAFT 5TH
33428BBEARING (FOR COUNTER 5TH GEAR)
33451SHAFT, REVERSE IDLER GEAR
51 parts on this diagram · 1 diagram in section
