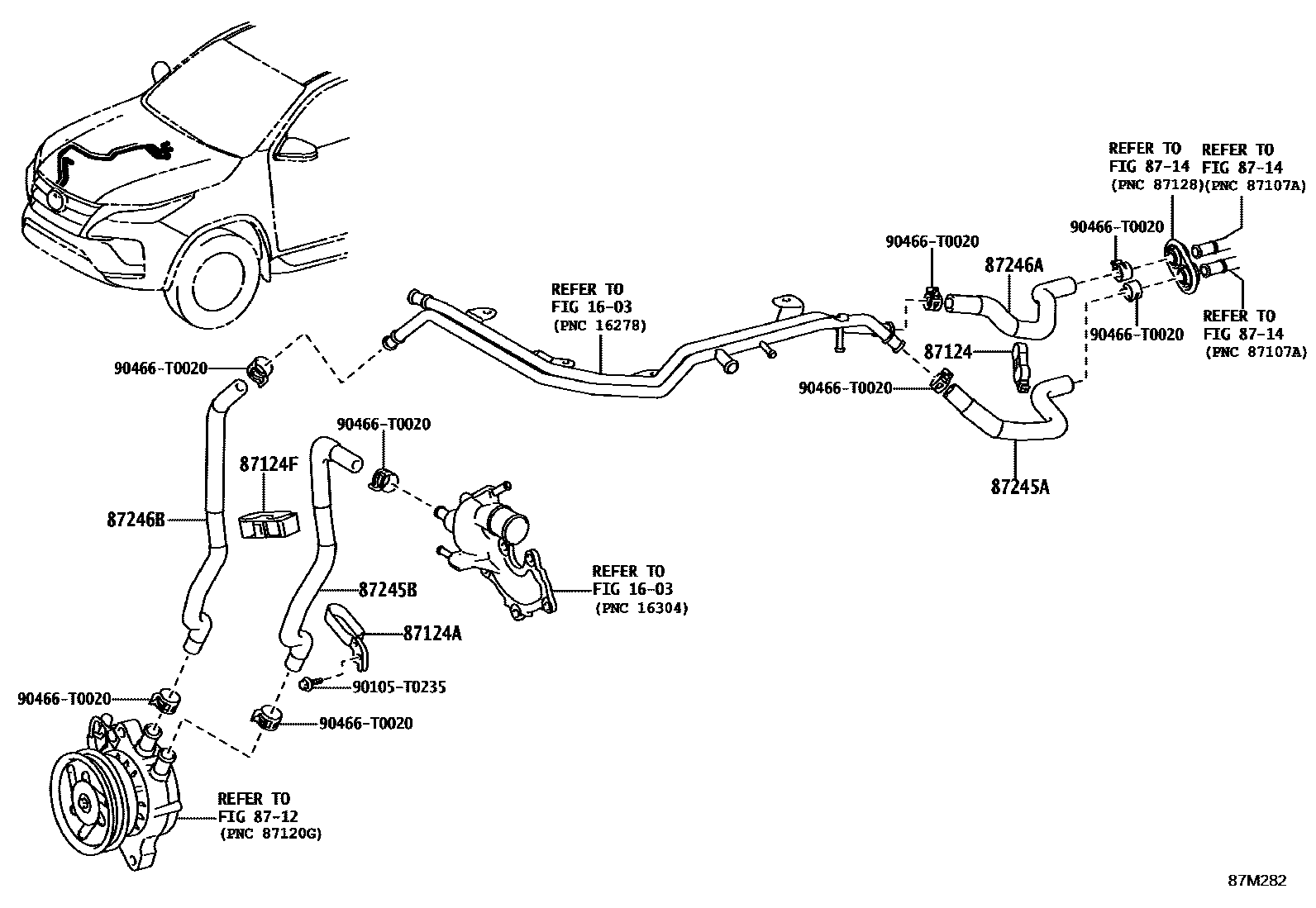

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1603

8712

87124CLAMP, HEATER

main87124-0K150iGUN156202308-202407

87124ACLAMP, HEATER

main87124-0K200iGUN156202308-202407

87124FCLAMP, HEATER HOSE, NO.1

main87124-60110iGUN156202308-202407

8714

87245AHOSE, HEATER WATER, INLET A

main87245-0KB20iTGN156202308-202407

main87245-0KE02iGUN156202308-202407

87245BHOSE, HEATER WATER, INLET B

main87245-0KE80iGUN156202308-202407

main87245-0KF30iTGN156202308-202407

87246AHOSE, HEATER WATER, OUTLET A

main87245-0KB30iTGN156202308-202407

main87245-0KE11iGUN156202308-202407

87246BHOSE, HEATER WATER, OUTLET B

main87245-0KE90iGUN156202308-202407

main87245-0KF20iTGN156202308-202407

90105T0235

main90105-T0235

90466T0020

main90466-T0020

12 parts on this diagram · 2 diagrams in section
