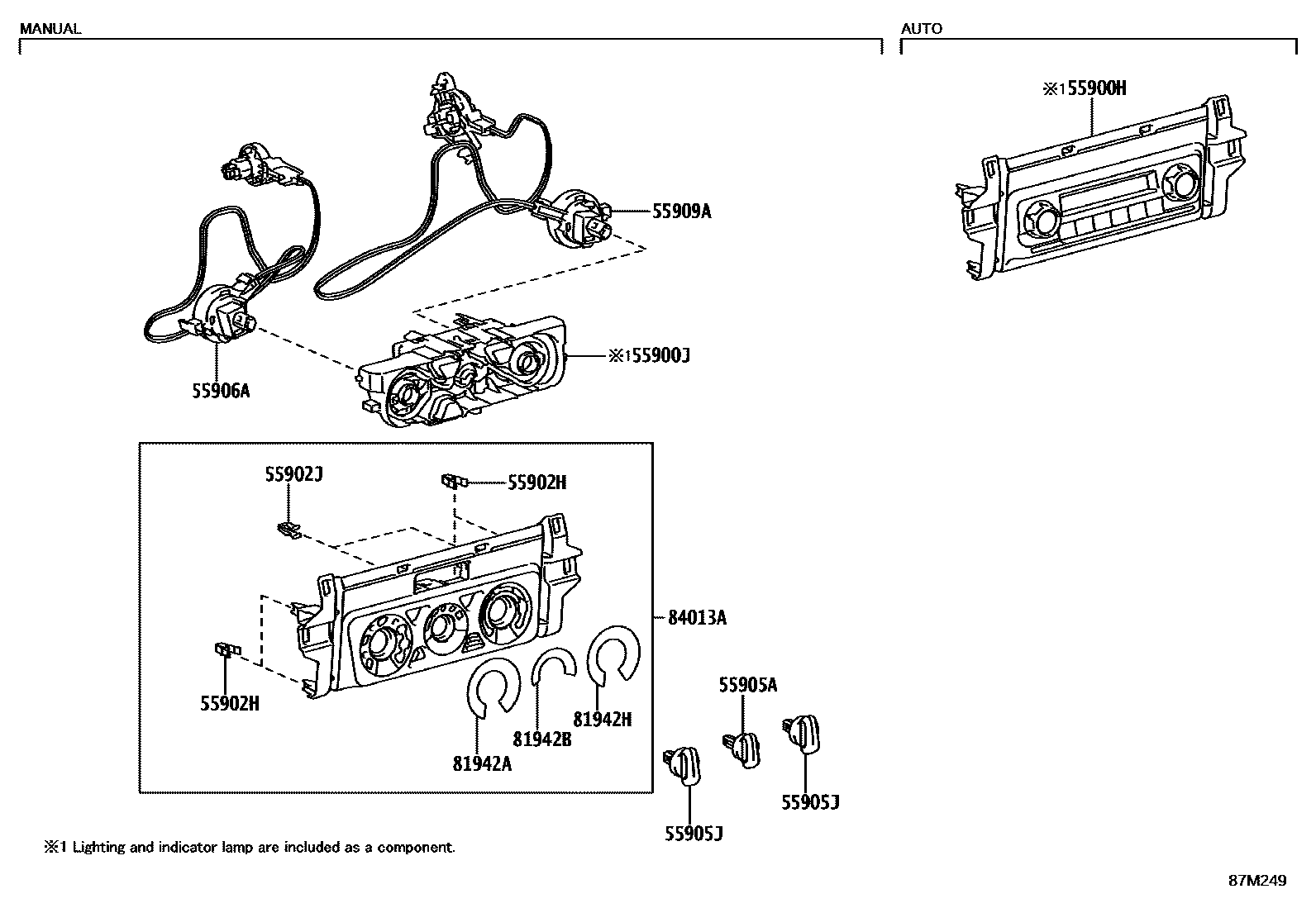

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

55900HCONTROL ASSY, AIR CONDITIONER(AUTO)

main55900-0KN40i202308-202407

STEERING WHEEL-LEATHER & WOOD LIKE,W(STEERING HEATER)&OUTSIDE REAR VIEW MIRROR-*273 & W(*MIH) & W(*SITL)&FRONT AIR CONDITIONER-AUTO

55900JCONTROL ASSY, AIR CONDITIONER(MANUAL)

main55900-0KE70i202308-202407

STEERING WHEEL-LEATHER & WOOD LIKE,W(STEERING HEATER)&OUTSIDE REAR VIEW MIRROR-*273 & W(*MIH) & W(*SITL)&FRONT AIR CONDITIONER-AUTO

main55900-0KE70i202308-202407

STEERING WHEEL-LEATHER & WOOD LIKE,W(STEERING HEATER)&FRONT AIR CONDITIONER-AUTO

main55900-0KE70i202308-202407

FRONT AIR CONDITIONER-AUTO

55902HCLIP(FOR AIR CONDITIONER PANEL)

main90467-T0033i202308-202407

FRONT AIR CONDITIONER-AUTO

main90467-T0033i202308-202407

FRONT AIR CONDITIONER-AUTO&SEAT BELT WARNING-WITH(*DRP & REAR SEAT , WITHOUT(SENSOR))

main90467-T0033i202308-202407

FRONT AIR CONDITIONER-AUTO&SEAT BELT WARNING-WITH(*DRP & REAR SEAT , WITH(SENSOR))

55902JCLIP(FOR AIR CONDITIONER PANEL) NO.2

main90467-T0033i202308-202407

FRONT AIR CONDITIONER-AUTO

main90467-T0033i202308-202407

FRONT AIR CONDITIONER-AUTO&SEAT BELT WARNING-WITH(*DRP & REAR SEAT , WITHOUT(SENSOR))

main90467-T0033i202308-202407

FRONT AIR CONDITIONER-AUTO&SEAT BELT WARNING-WITH(*DRP & REAR SEAT , WITH(SENSOR))

55905AKNOB, HEATER CONTROL

main55917-0K050i202308-202407

STEERING WHEEL-LEATHER & WOOD LIKE,W(STEERING HEATER)&OUTSIDE REAR VIEW MIRROR-*273 & W(*MIH) & W(*SITL)&FRONT AIR CONDITIONER-AUTO

main55917-0K050i202308-202407

STEERING WHEEL-LEATHER & WOOD LIKE,W(STEERING HEATER)&FRONT AIR CONDITIONER-AUTO

main55917-0K050i202308-202407

FRONT AIR CONDITIONER-AUTO

55905JKNOB SUB-ASSY, CONTROL

main55905-0K180i202308-202407

STEERING WHEEL-LEATHER & WOOD LIKE,W(STEERING HEATER)&OUTSIDE REAR VIEW MIRROR-*273 & W(*MIH) & W(*SITL)&FRONT AIR CONDITIONER-AUTO

main55905-0K180i202308-202407

STEERING WHEEL-LEATHER & WOOD LIKE,W(STEERING HEATER)&FRONT AIR CONDITIONER-AUTO

main55905-0K180i202308-202407

FRONT AIR CONDITIONER-AUTO

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-0K060i¥1,250202308-202407

FRONT AIR CONDITIONER-AUTO

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-0K060i¥1,250202308-202407

FRONT AIR CONDITIONER-AUTO

81942ASHEET, HEATER CONTROL NAME, NO.1

main81941-0K050i202308-202407

81942BSHEET, HEATER CONTROL NAME, NO.2

main81942-0K710i202308-202407

FRONT AIR CONDITIONER-AUTO

main81942-0K710i202308-202407

FRONT AIR CONDITIONER-AUTO&SEAT BELT WARNING-WITH(*DRP & REAR SEAT , WITHOUT(SENSOR))

main81942-0K710i202308-202407

FRONT AIR CONDITIONER-AUTO&SEAT BELT WARNING-WITH(*DRP & REAR SEAT , WITH(SENSOR))

81942HSHEET, HEATER CONTROL NAME, NO.3

main81943-0K080i202308-202407

FRONT AIR CONDITIONER-AUTO

main81943-0K080i202308-202407

FRONT AIR CONDITIONER-AUTO&SEAT BELT WARNING-WITH(*DRP & REAR SEAT , WITHOUT(SENSOR))

main81943-0K080i202308-202407

FRONT AIR CONDITIONER-AUTO&SEAT BELT WARNING-WITH(*DRP & REAR SEAT , WITH(SENSOR))

84013APANEL SUB-ASSY, INTEGRATION

main55406-KK100i202308-202407

FRONT AIR CONDITIONER-AUTO

main55406-KK100i202308-202407

FRONT AIR CONDITIONER-AUTO&SEAT BELT WARNING-WITH(*DRP & REAR SEAT , WITHOUT(SENSOR))

main55406-KK100i202308-202407

FRONT AIR CONDITIONER-AUTO&SEAT BELT WARNING-WITH(*DRP & REAR SEAT , WITH(SENSOR))

12 parts on this diagram · 5 diagrams in section
