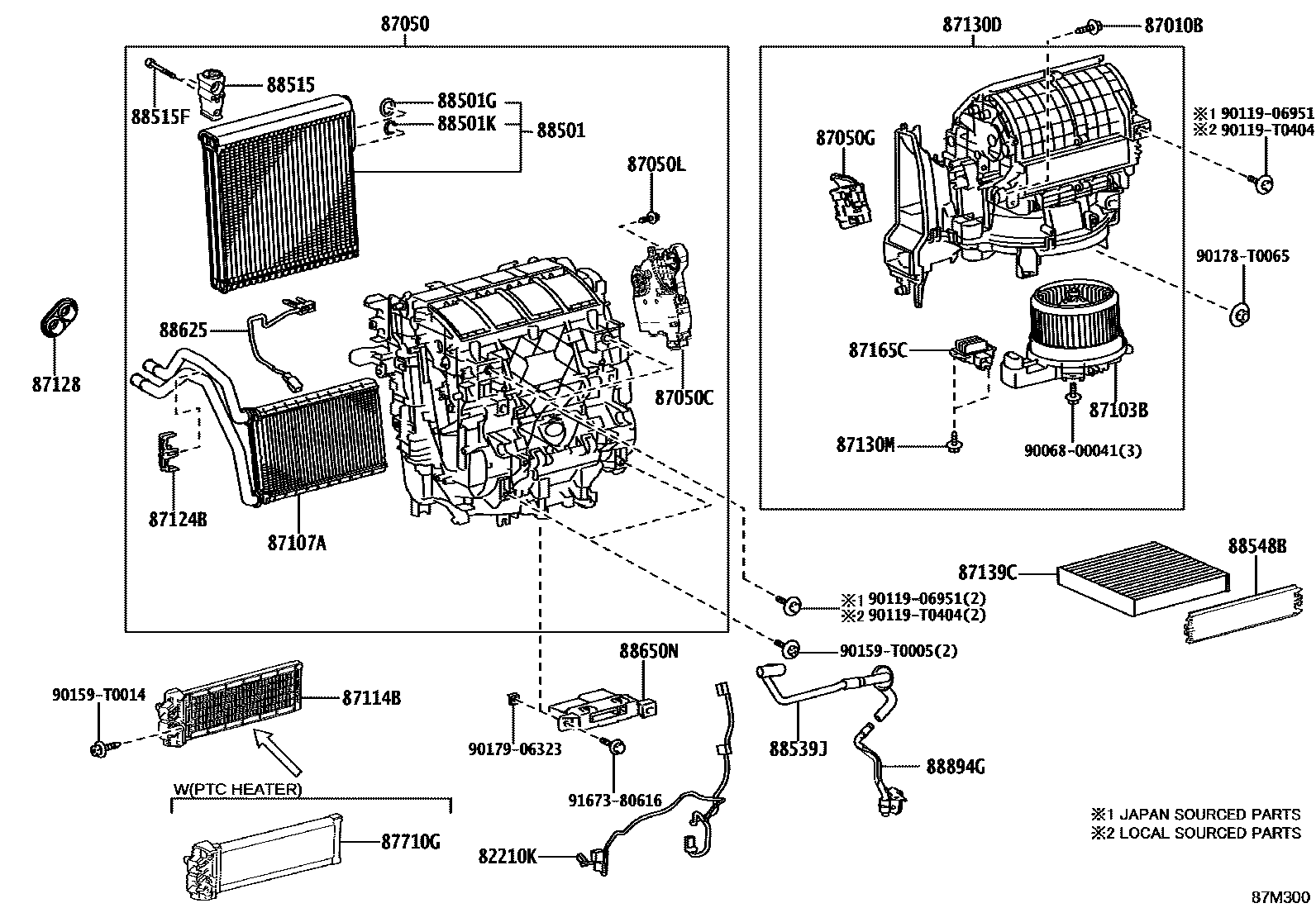

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1AUTO AIR CONDITIONER 0002 1MANUAL AIR CONDITIONER 0003 1REAR AUTO COOLER 0004 1REAR MANUAL COOLER

82210KHARNESS ASSY, AIR CONDITIONER

main82212-0K060iTGN156..S202308-202407

FRONT AIR CONDITIONER-AUTO

87010BSCREW(FOR AIR CONDITIONER UNIT)

main90068-00042×2iGUN156,TGN156202308-202407

87050RADIATOR ASSY, AIR CONDITIONER

main87050-0KD20iTGN156202308-202407

main87050-0KP50iTGN156..S202308-202407

FRONT AIR CONDITIONER-AUTO

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-F4060iTGN156..S202308-202407

FRONT AIR CONDITIONER-AUTO

87050GDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.5

main87106-0K220iTGN156202308-202407

main87106-0K241iTGN156..S202308-202407

FRONT AIR CONDITIONER-AUTO

87050LSCREW(FOR AIR CONDITIONER RADIATOR)

main90068-00042×11iTGN156..S202308-202407

FRONT AIR CONDITIONER-AUTO

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0K391iGUN156,TGN156202308-202407

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-0K110iGUN156,TGN156202308-202407

87114BCOVER, HEATER

main87114-0K040iTGN156202308-202407

87124BCLAMP, HEATER

main87124-06140iGUN156,TGN156202308-202407

87128GROMMET, HEATER

main87128-0K180iGUN156,TGN156202308-202407

87130DBLOWER ASSY

main87130-0K591iTGN156202308-202407

main87130-0K631iTGN156..S202308-202407

FRONT AIR CONDITIONER-AUTO

87130MSCREW(FOR BLOWER)

main90068-00042×5iTGN156..S202308-202407

FRONT AIR CONDITIONER-AUTO

87139CFILTER, CLEAN AIR

main87139-0K070iGUN156,TGN156202308-202407

POLLEN FILTER

main87139-58010iGUN156,TGN156202308-202407

DEODORANT FILTER

87165CCONTROL, BLOWER MOTOR

main87165-0K060iTGN156..S202308-202407

FRONT AIR CONDITIONER-AUTO

87710GQUICK HEATER ASSY

main87710-0K100iGUN156202308-202407

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-0K390iGUN156,TGN156202308-202407

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90068-14044iGUN156,TGN156202308-202407

ID=10.2,OD=15.0

88501KO-RING, COOLER EVAPORATOR NO.1(LIQUID)

main90068-14043iGUN156,TGN156202308-202407

ID=13.4,OD=18.2

88515VALVE, COOLER EXPANSION

main88515-0K580iGUN156,TGN156202308-202407

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90068-04062×2iGUN156,TGN156202308-202407

88539JHOSE, DRAIN COOLER

main88539-0K380iGUN156,TGN156202308-202407

88548BCASE, AIR FILTER

main88899-06330iGUN156,TGN156202308-202407

88625THERMISTOR, COOLER, NO.1

main88620-0K010iGUN156,TGN156202308-202407

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-0K830iTGN156202308-202407

main88650-0KA10iTGN156..S202308-202407

FRONT AIR CONDITIONER-AUTO

main88650-0K850iTGN156..S202308-202407

FRONT AIR CONDITIONER-AUTO

88894GCONNECTOR, DRAIN HOSE

main88894-0K010iGUN156,TGN156202308-202407

9006800041

main90068-00041

9011906951

main90119-06951

90119T0404

main90119-T0404

90159T0005

main90159-T0005

90159T0014

main90159-T0014

90178T0065

main90178-T0065

9017906323

main90179-06323

9167380616

main91673-80616

34 parts on this diagram · 4 diagrams in section
