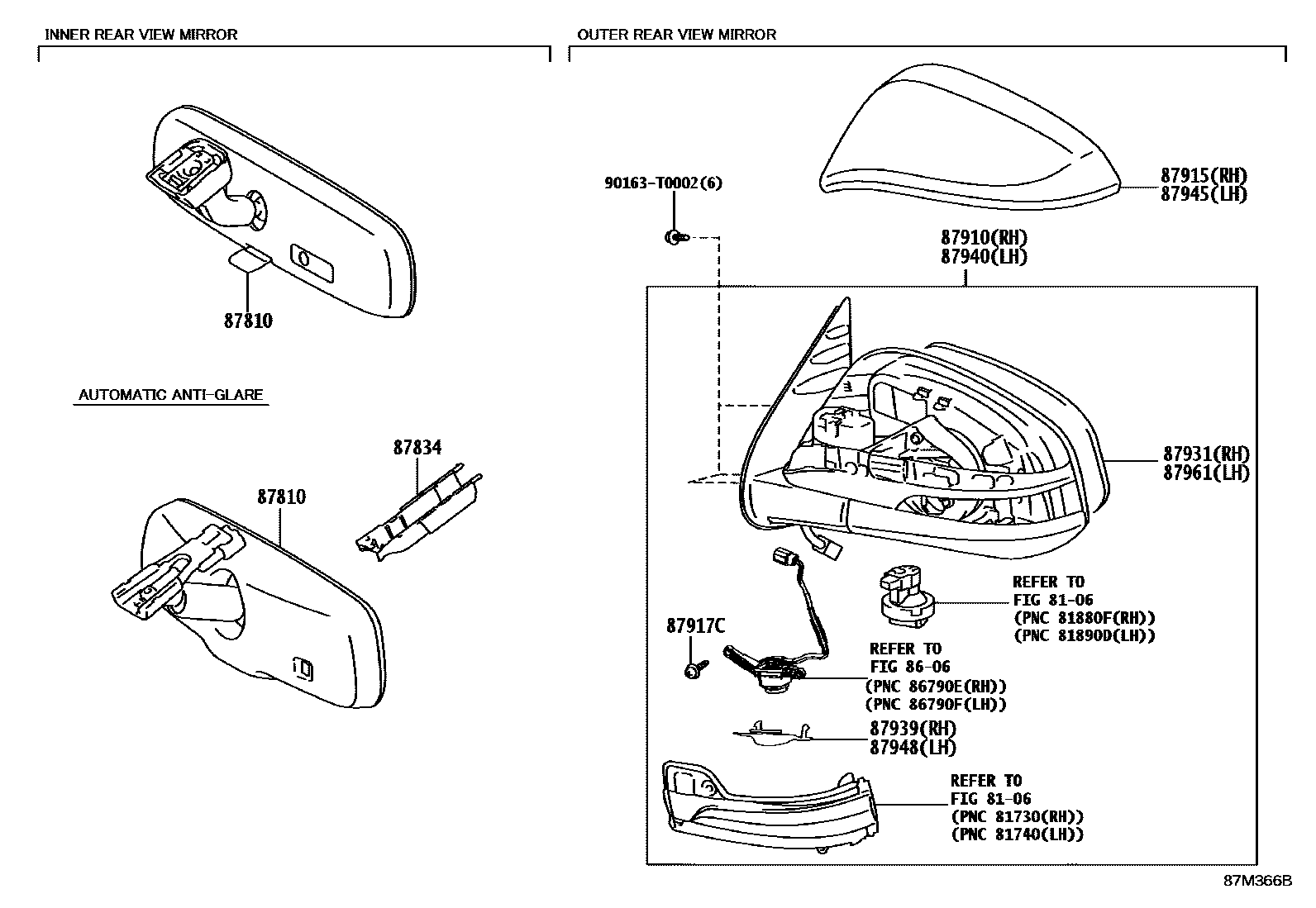

MIRROR

8106

8606

87810MIRROR ASSY, INNER REAR VIEW

main87810-06041supersedes 87810-0WG30i202308-202407

INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87818-0K010i202308-202407

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-0K732supersedes 87910-0K810i202308-202407

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*MIH) & W(*SITL)

main87910-0KM00i202308-202407

NO PAINT REQ.,BACK MONITOR-WITH(*PVM)

main87910-0KM40i202308-202407

NO PAINT REQ.,BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR &*RCTA)

87915COVER, OUTER MIRROR, RH

main87915-0K918i202308-202407

PAINT REQ.

87917CSCREW, OUTER MIRROR

main87917-0KM00×4i202308-202407

BACK MONITOR-WITH(*PVM)

87931OUTER MIRROR, RH

main87931-0KC80supersedes 87931-0KC60i202308-202407

OUTSIDE REAR VIEW MIRROR-*273 & W(*MIH) & W(*SITL)

main87931-0KM40i202308-202407

BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)

87939COVER, OUTER MIRROR HOLE, RH

main87939-0KM00i202308-202407

BACK MONITOR-WITH(*PVM)

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-0KE32supersedes 87940-0KF60i202308-202407

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*MIH) & W(*SITL)

main87940-0KM00i202308-202407

NO PAINT REQ.,BACK MONITOR-WITH(*PVM)

main87940-0KM40i202308-202407

NO PAINT REQ.,BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR &*RCTA)

87945COVER, OUTER MIRROR, LH

main87945-0K918i202308-202407

PAINT REQ.

87948COVER, OUTER MIRROR HOLE, LH

main87948-0KM00i202308-202407

BACK MONITOR-WITH(*PVM)

87961MIRROR OUTER, LH

main87961-0KB40supersedes 87961-0KB20i202308-202407

OUTSIDE REAR VIEW MIRROR-*273 & W(*MIH) & W(*SITL)

main87961-0KM40i202308-202407

BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)

90163T0002

main90163-T0002

14 parts on this diagram · 1 diagram in section
