SPEAKER

86150HSPEAKER ASSY, W/BRACKET

main86150-0K390iGUN156,TGN156202308-202407

DATA COMMUNICATION MODULE-WITHOUT

86160SPEAKER ASSY, FRONT NO.1

main86160-0K500×2iGUN156,TGN156202308-202407

main86160-0K380×2iGUN156..H202308-202407

SPEAKER-11SPEAKER & JBL

86160BSPEAKER ASSY, REAR

main86160-0K500×2iGUN156,TGN156202308-202407

main86160-0K330×2iGUN156..H202308-202407

SPEAKER-11SPEAKER & JBL

86160JSPEAKER ASSY, FRONT NO.3

main86150-0K180×2iGUN156..H202308-202407

SPEAKER-11SPEAKER & JBL

86160PSPEAKER ASSY, FRONT NO.2

main86150-0K260×2iGUN156,TGN156..6FC202308-202407

main86150-0K380×2iGUN156..H202308-202407

SPEAKER-11SPEAKER & JBL

86160ZSPEAKER ASSY, REAR NO.3

main86150-0K190iGUN156..H202308-202407

SPEAKER-11SPEAKER & JBL

86161BRACKET, SPEAKER, FRONT NO.1

main86161-71051iGUN156..H202308-202311

SPEAKER-11SPEAKER & JBL,RH

main86161-71061iGUN156..H202308-202311

SPEAKER-11SPEAKER & JBL,LH

86163BRACKET, SPEAKER, NO.2

main86163-71050iGUN156..H202308-202311

SPEAKER-11SPEAKER & JBL,RH

main86163-71060iGUN156..H202311-202402

SPEAKER-11SPEAKER & JBL,LH,(J)

9011906A06

main90119-06A06

90119T0130

main90119-T0130

9016750046

main90167-50046

9026905074

main90269-05074

9415080600

main94150-80600

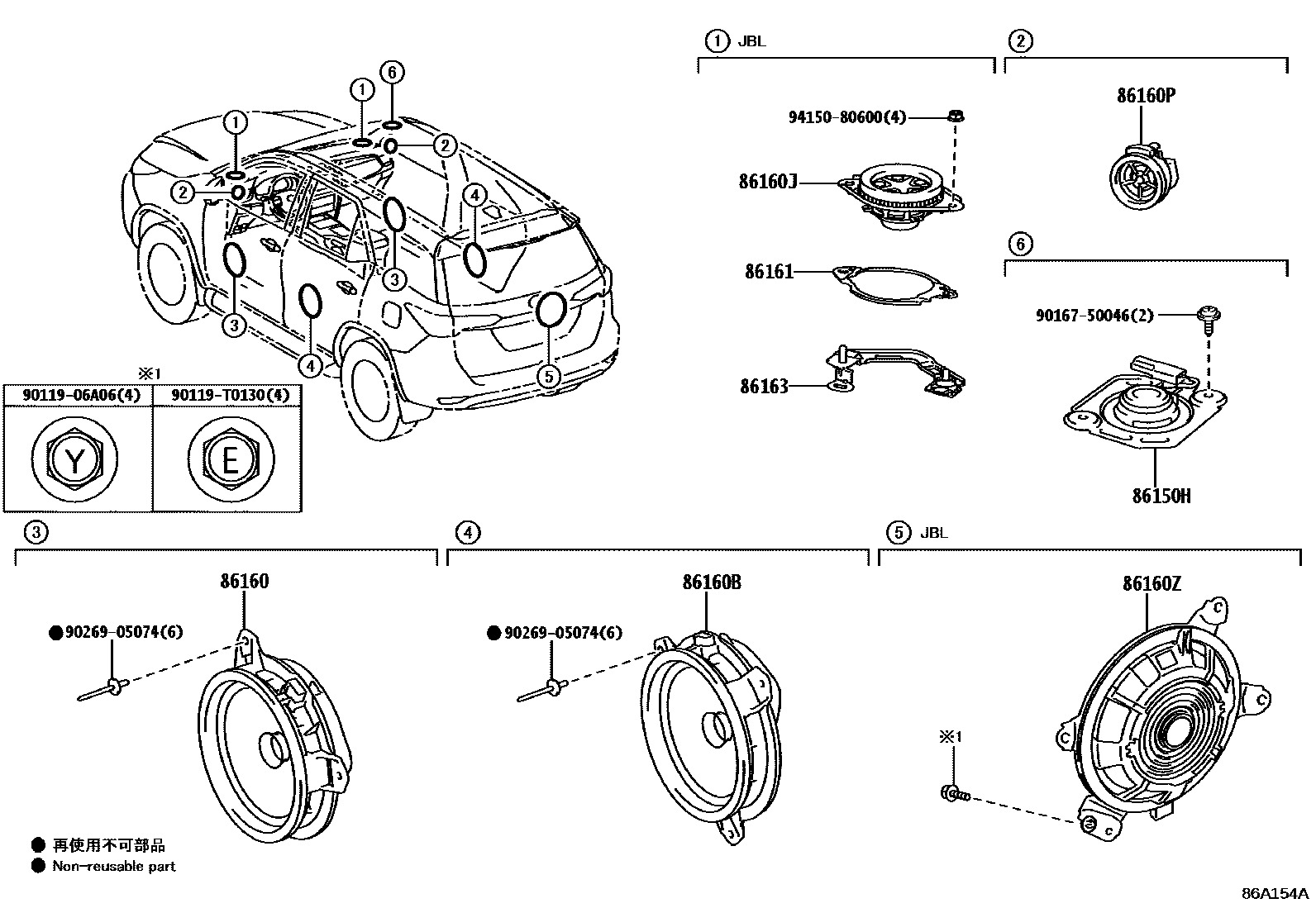

13 parts on this diagram · 1 diagram in section
