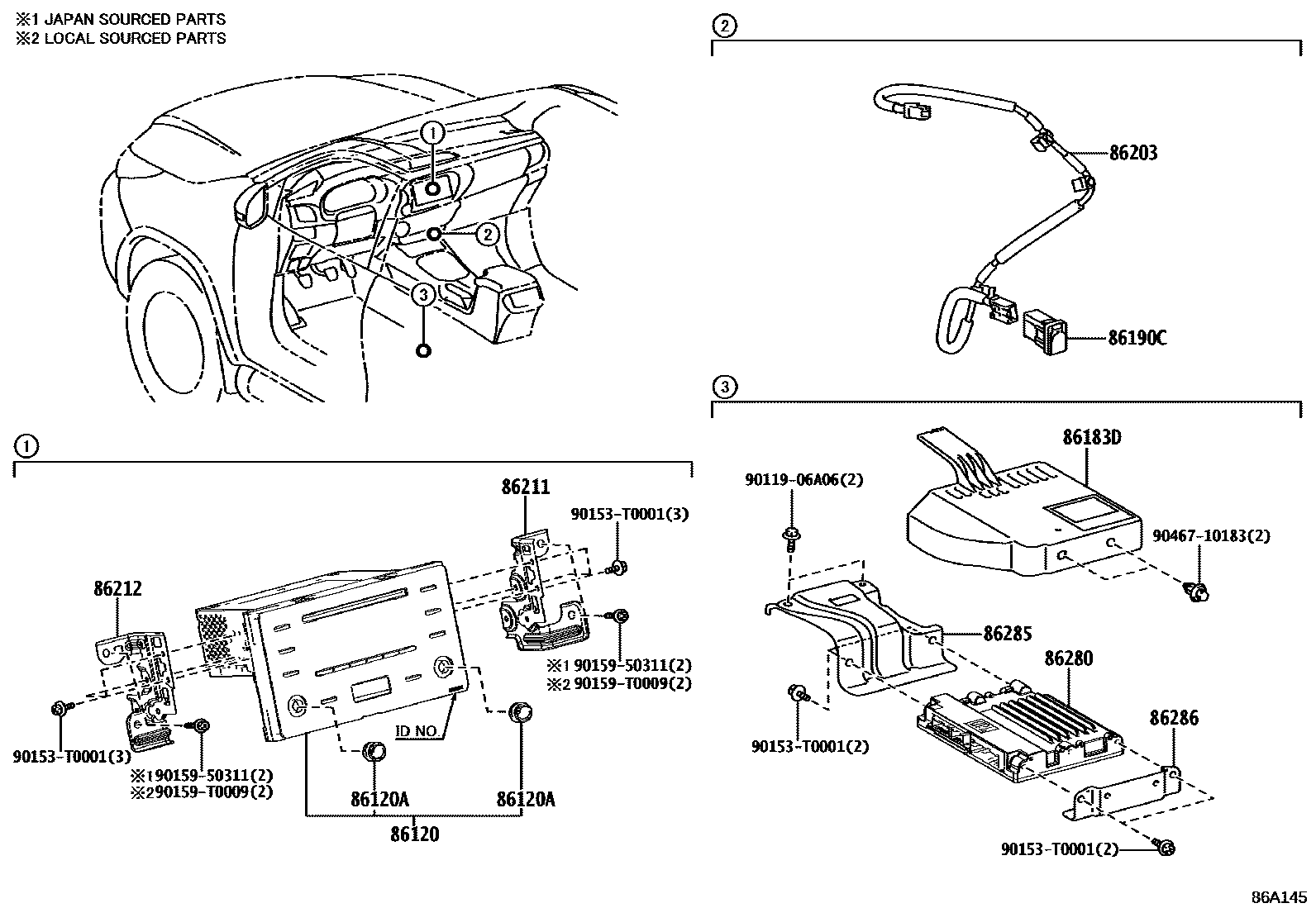

RADIO RECEIVER & AMPLIFIER & CONDENSER
86120RECEIVER ASSY, RADIO
DENSO TEN,ID=100892
86120AKNOB, RADIO RECEIVER SWITCH
86183DCOVER, AUDIO AMPLIFIER
SPEAKER-11SPEAKER & JBL
86190CADAPTER ASSY, STEREO JACK, NO.1
AUDIO-*DA(8INCH) & *BT & DAB
86203WIRE, RADIO
AUDIO-*DA(8INCH) & *BT & DAB
86211BRACKET, RADIO, NO.1
86212BRACKET, RADIO, NO.2
86280AMPLIFIER ASSY, STEREO COMPONENT
SPEAKER-11SPEAKER & JBL
86285BRACKET, AMPLIFIER, NO.1
SPEAKER-11SPEAKER & JBL
86286BRACKET, AMPLIFIER, NO.2
SPEAKER-11SPEAKER & JBL
9011906A06
main90119-06A06
90153T0001
main90153-T0001
9015950311
main90159-50311
90159T0009
main90159-T0009
9046710183
main90467-10183
15 parts on this diagram · 1 diagram in section
