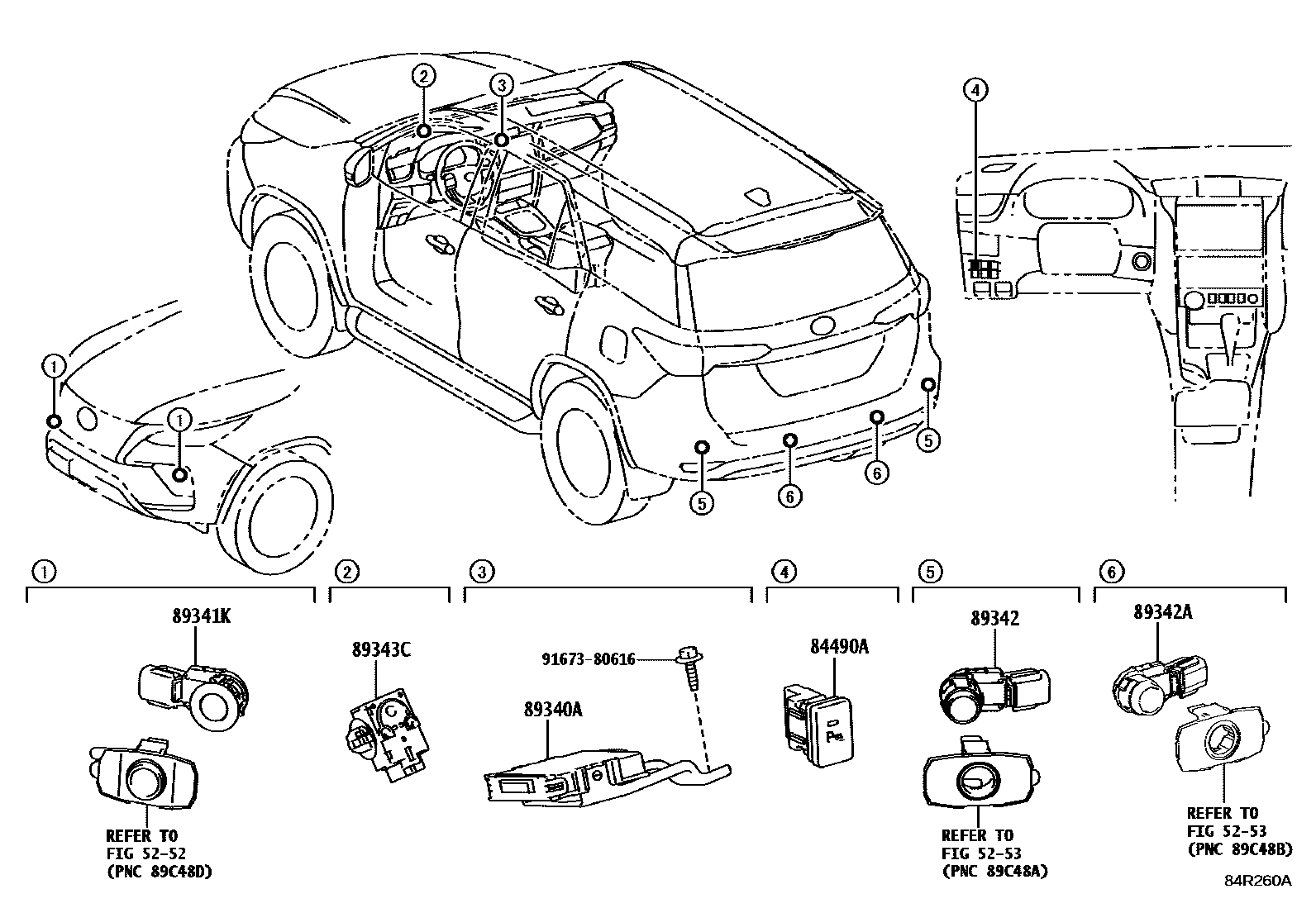

CLEARANCE & BACK SONAR
5252
5253
84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR
89340ACOMPUTER ASSY, CLEARANCE WARNING
89341KSENSOR, ULTRASONIC, FRONT CORNER
BLACK
MLM BASIC PACKAGE,SUPER WHITE 2,040
MLM BASIC PACKAGE,PLATINUM WHITE PEARL MC.,089 ,2PS
MLM BASIC PACKAGE,GRAY ME.,1G3
MLM BASIC PACKAGE,SILVER ME.,1D6
MLM BASIC PACKAGE,SILVER ME.,1L0
MLM BASIC PACKAGE,ATTITUDE BLACK MC.,218
MLM BASIC PACKAGE,EMOTIONAL RED 2,2SC ,3U5
MLM BASIC PACKAGE,PHANTOM BROWN ME.,4W9
MLM BASIC PACKAGE,DK. BLUE MC.,8X8
89342SENSOR, ULTRASONIC, REAR CORNER
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089 ,2PS
GRAY ME.,1G3
SILVER ME.,1D6
SILVER ME.,1L0
ATTITUDE BLACK MC.,218
EMOTIONAL RED 2,2SC ,3U5
PHANTOM BROWN ME.,4W9
DK. BLUE MC.,8X8
89342ASENSOR, ULTRASONIC, REAR CENTER
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089 ,2PS
GRAY ME.,1G3
SILVER ME.,1D6
SILVER ME.,1L0
ATTITUDE BLACK MC.,218
EMOTIONAL RED 2,2SC ,3U5
PHANTOM BROWN ME.,4W9
DK. BLUE MC.,8X8
89343CBUZZER, CLEARANCE WARNING, NO.1
9167380616
main91673-80616
9 parts on this diagram · 1 diagram in section
