WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1ENGINE 0004 1INSTRUMENT PANEL 0005 1DOOR 0006 1FLOOR & ROOF 0007 1SEAT 0008 1CLAMP & BRACKET 0009 1CLAMP & BRACKET 0010 1CABLE BOND 0011 1CONNECTOR 1/3 0012 1CONNECTOR 2/3 0013 1CONNECTOR 3/3

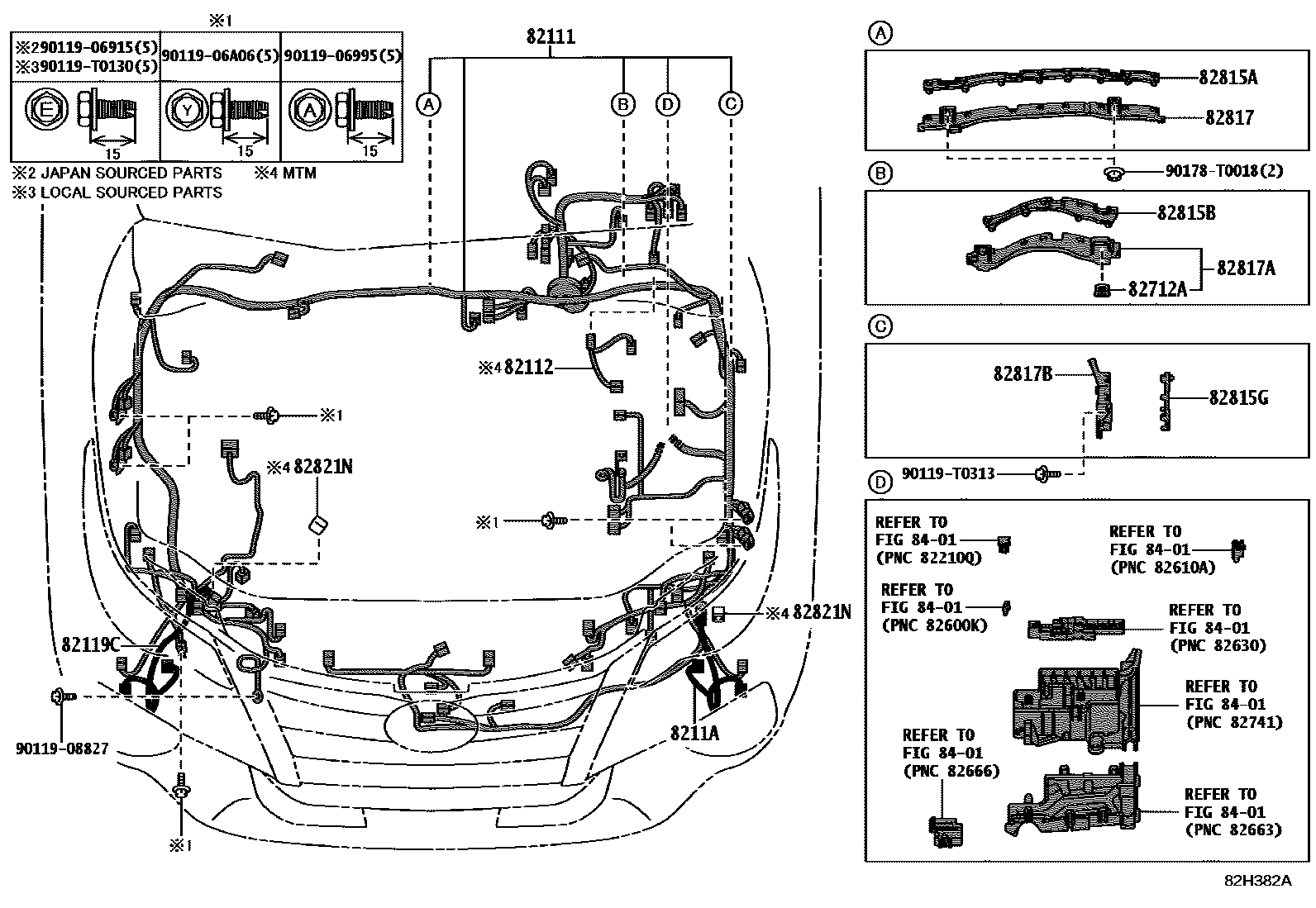

82111WIRE, ENGINE ROOM MAIN

main8211G-KKG80iGUN156..S202308-202407

main8211G-KKK50iTGN156202308-202407

main8211G-KKF30iTGN156..S202308-202407

EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)

main8211G-KKG10supersedes 8211G-KKJ10iGUN156..H202308-202407

FRONT BUMPER-PAINTED(MLM)

main8211G-KKG20supersedes 8211G-KKJ10iGUN156..H202308-202407

FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM)

main8211G-KKJ20supersedes 8211G-KKJ10iGUN156..H202308-202407

BACK MONITOR-WITH(*PVM)

main8211G-KKL00iTGN156..S202308-202407

STEERING WHEEL-LEATHER & WOOD LIKE,W(STEERING HEATER)

82112WIRE, ENGINE ROOM, NO.2

main82112-KK010iTGN156..L202308-202407

82119CWIRE, ENGINE ROOM, NO.5

main82119-KK380supersedes 82119-KK390iGUN156,TGN156..6FC202308-202407

FRONT FOG LAMP-WITH(LED)

main82119-KK400iGUN156..H202308-202407

MLM BASIC PACKAGE&FRONT FOG LAMP-WITH(LED)

8211AWIRE, ENGINE ROOM, NO.6

main8211A-KK010supersedes 8211A-KK030iGUN156,TGN156..6FC202308-202407

FRONT FOG LAMP-WITH(LED)

main8211A-KK160iGUN156..H202308-202407

MLM BASIC PACKAGE&FRONT FOG LAMP-WITH(LED)

82712ASUPPORT, WIRING HARNESS

main82712-33190iGUN156,TGN156202308-202407

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-0K530iGUN156,TGN156202308-202407

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-0K520iGUN156,TGN156202308-202407

82815GCOVER, WIRING HARNESS PROTECTOR NO.5

main82815-0K540iGUN156,TGN156202308-202407

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-0K530iGUN156,TGN156202308-202407

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-0K520iGUN156,TGN156202308-202407

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-0K540iGUN156,TGN156202308-202407

82821NCOVER, CONNECTOR

main82821-KK030×2iTGN156..L202308-202407

8401

9011906915

main90119-06915

9011906995

main90119-06995

9011906A06

main90119-06A06

9011908827

main90119-08827

90119T0130

main90119-T0130

90119T0313

main90119-T0313

90178T0018

main90178-T0018

20 parts on this diagram · 13 diagrams in section
