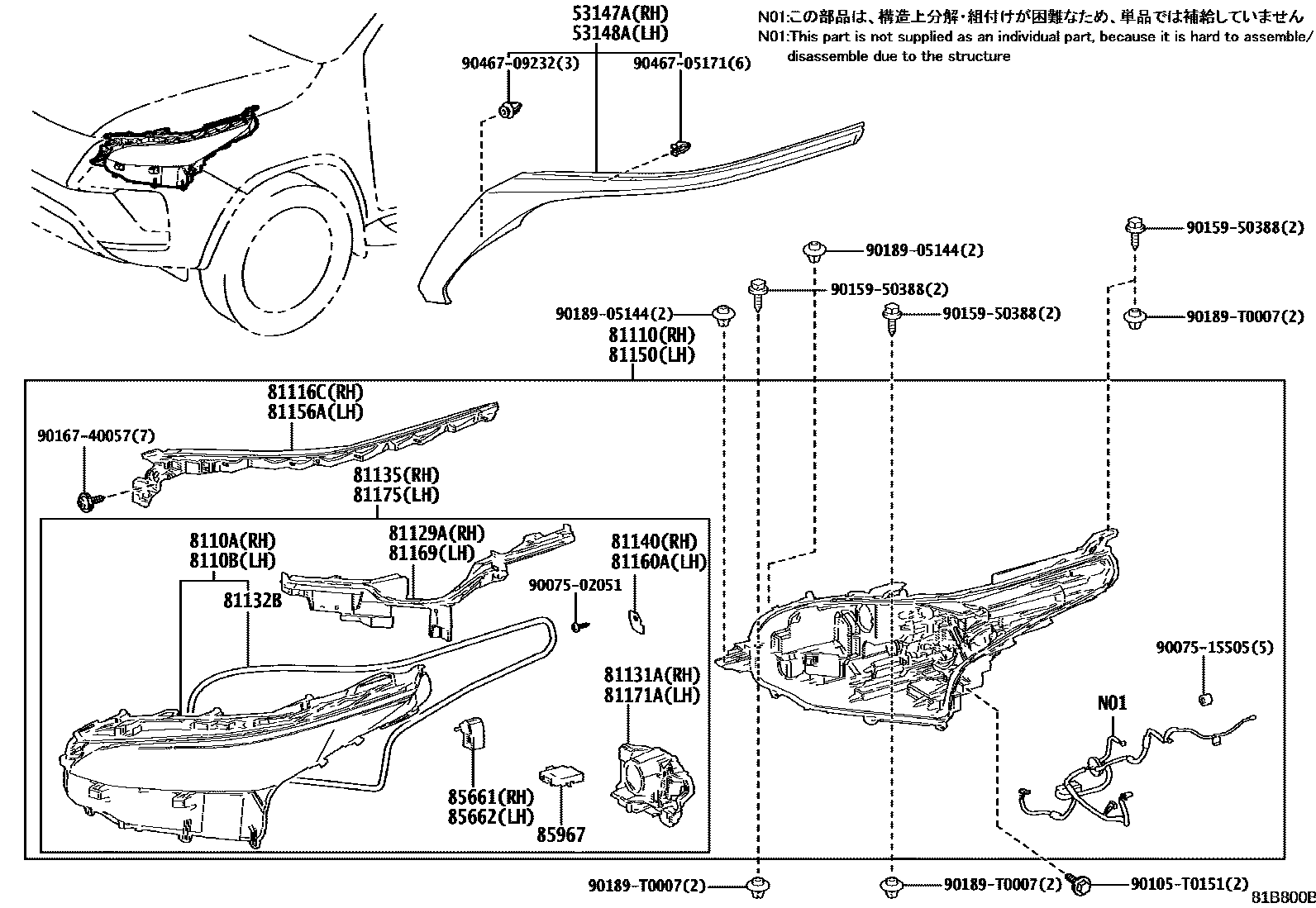

HEADLAMP
53147AGARNISH, HEADLAMP ORNAMENT, RH
MLM BASIC PACKAGE
MLM BASIC PACKAGE
53148AGARNISH, HEADLAMP ORNAMENT, LH
MLM BASIC PACKAGE
MLM BASIC PACKAGE
8110ALENS SUB-ASSY, HEADLAMP, RH
MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)
8110BLENS SUB-ASSY, HEADLAMP, LH
MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)
81110HEADLAMP ASSY, RH
MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)
81116CBRACKET, HEADLAMP, RH
81129AREFLECTOR, HEADLAMP, RH
81131AUNIT, HEADLAMP, RH
MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)
81132BGASKET, HEADLAMP LENS
81135UNIT ASSY, HEADLAMP, RH
MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)
81140UNIT ASSY, HEADLAMP LED, RH
MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)
81150HEADLAMP ASSY, LH
MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)
81156ABRACKET, HEADLAMP, LH
81160AUNIT ASSY, HEADLAMP LED, LH
MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)
81169REFLECTOR, HEADLAMP, LH
81171AUNIT, HEADLAMP, LH
MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)
81175UNIT ASSY, HEADLAMP, LH
MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
85967COMPUTER, LIGHT CONTROL
MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)
9007502051
main90075-02051
9007515505
main90075-15505
90105T0151
main90105-T0151
9015950388
main90159-50388
9016740057
main90167-40057
9018905144
main90189-05144
90189T0007
main90189-T0007
9046705171
main90467-05171
9046709232
main90467-09232
29 parts on this diagram · 3 diagrams in section
