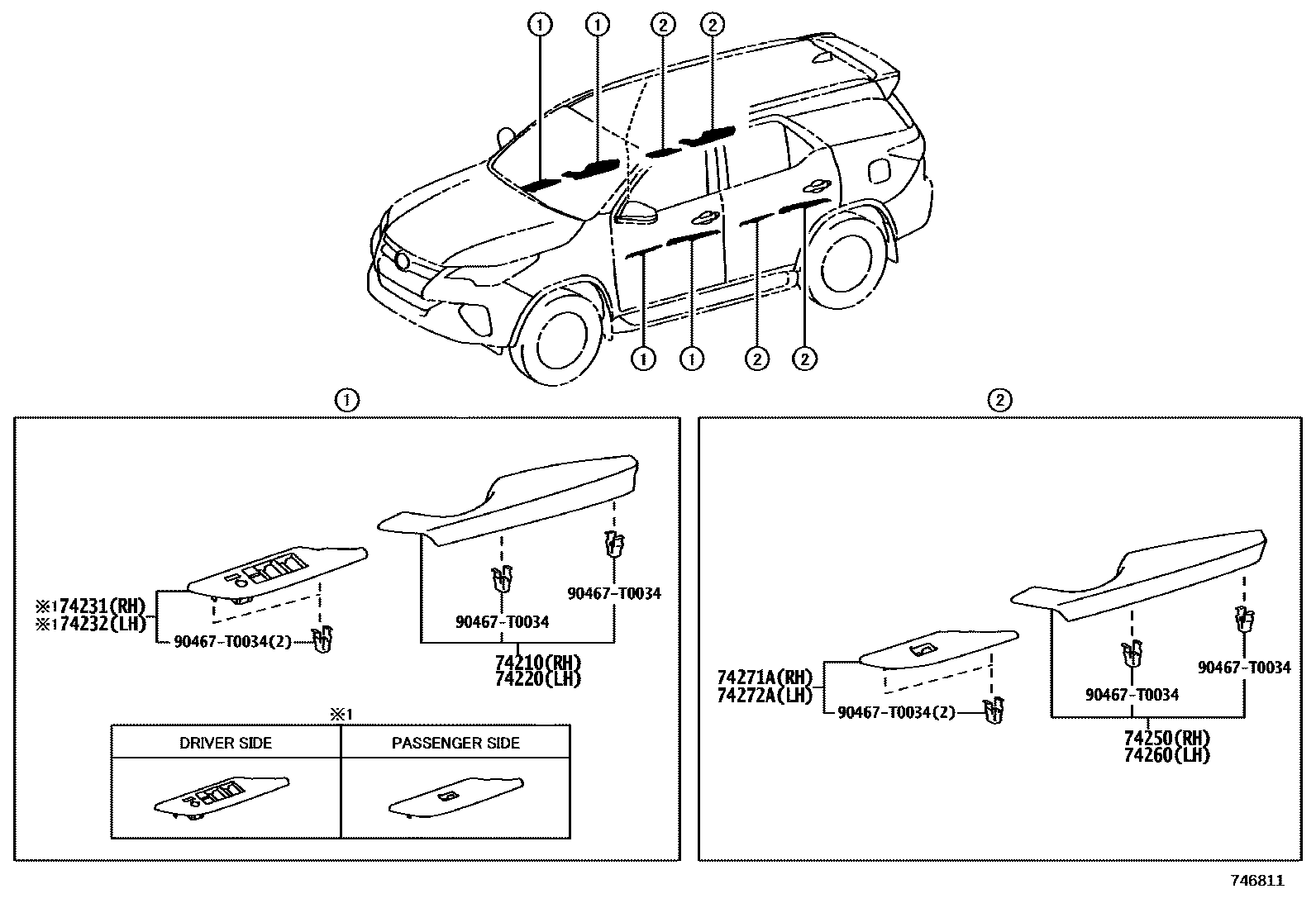

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74210ARMREST ASSY, FRONT, RH

main74210-0K090-C0iTGN156..L202308-202407

BLACK,TRIM2#

main74210-0K090-E6iTGN156..L202308-202407

CHAMOIS,TRIM4#

74220ARMREST ASSY, FRONT, LH

main74220-0K090-C0iTGN156..L202308-202407

BLACK,TRIM2#

main74220-0K090-E6iTGN156..L202308-202407

CHAMOIS,TRIM4#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-0K600iTGN156..L202308-202407

main74231-0K611iGUN156,TGN156..6FC202308-202407

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-0K640iTGN156..L202308-202407

main74232-0K651iGUN156,TGN156..6FC202308-202407

74250ARMREST ASSY, REAR RH

main74250-0K050-C0iTGN156..L202308-202407

BLACK,TRIM2#

main74250-0K050-E6iTGN156..L202308-202407

CHAMOIS,TRIM4#

74260ARMREST ASSY, REAR LH

main74260-0K050-C0iTGN156..L202308-202407

BLACK,TRIM2#

main74260-0K050-E6iTGN156..L202308-202407

CHAMOIS,TRIM4#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-0K310iTGN156..L202308-202407

main74271-0K321iGUN156,TGN156..6FC202308-202407

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-0K310iTGN156..L202308-202407

main74272-0K321iGUN156,TGN156..6FC202308-202407

90467T0034

main90467-T0034

9 parts on this diagram · 2 diagrams in section
