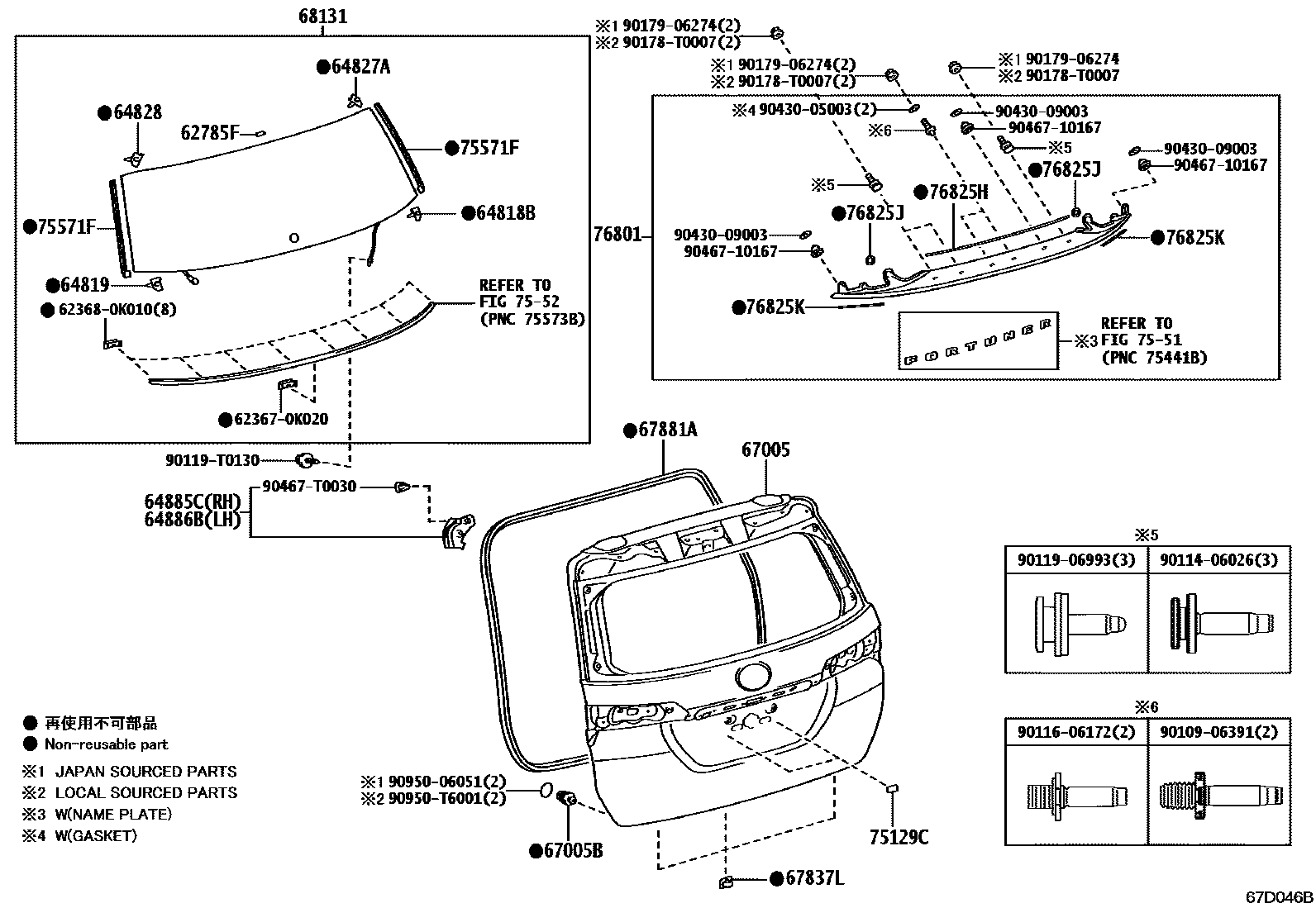

BACK DOOR PANEL & GLASS
62785FSPACER, BACK DOOR GLASS
64818BSPACER, BACK DOOR GLASS, NO.1
64819SPACER, BACK WINDOW GLASS, NO.2
64827ACLIP, BACK WINDOW GLASS, RH
64828CLIP, BACK WINDOW GLASS, LH
64885CCHANNEL, BACK DOOR GLASS, RH
64886BCHANNEL, BACK DOOR GLASS, LH
67005BCUSHION(FOR BACK DOOR PANEL)
67837LSEAL, DOOR DUST PROOF
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
75129CCUSHION, REAR LICENCE PLATE
7551
7552
75571FMOULDIMG, BACK DOOR WINDOW
RH
LH
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
NO PAINT REQ.
PLATED
PLATED
PLATED,AUDIO-*DA(8INCH) & *BT & DAB
NO PAINT REQ.,MLM BASIC PACKAGE
76825HPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1
76825JPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2
76825KPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.3
623670K020CLIP, DOOR WINDOW GLASS, NO.1
main62367-0K020
623680K010CLIP, DOOR WINDOW GLASS, NO.2
main62368-0K010
9010906391
main90109-06391
9011406026
main90114-06026
9011606172
main90116-06172
9011906993
main90119-06993
90119T0130
main90119-T0130
90178T0007
main90178-T0007
9017906274
main90179-06274
9043005003
main90430-05003
9043009003
main90430-09003
9046710167
main90467-10167
90467T0030
main90467-T0030
9095006051
main90950-06051
90950T6001
main90950-T6001
35 parts on this diagram · 2 diagrams in section
