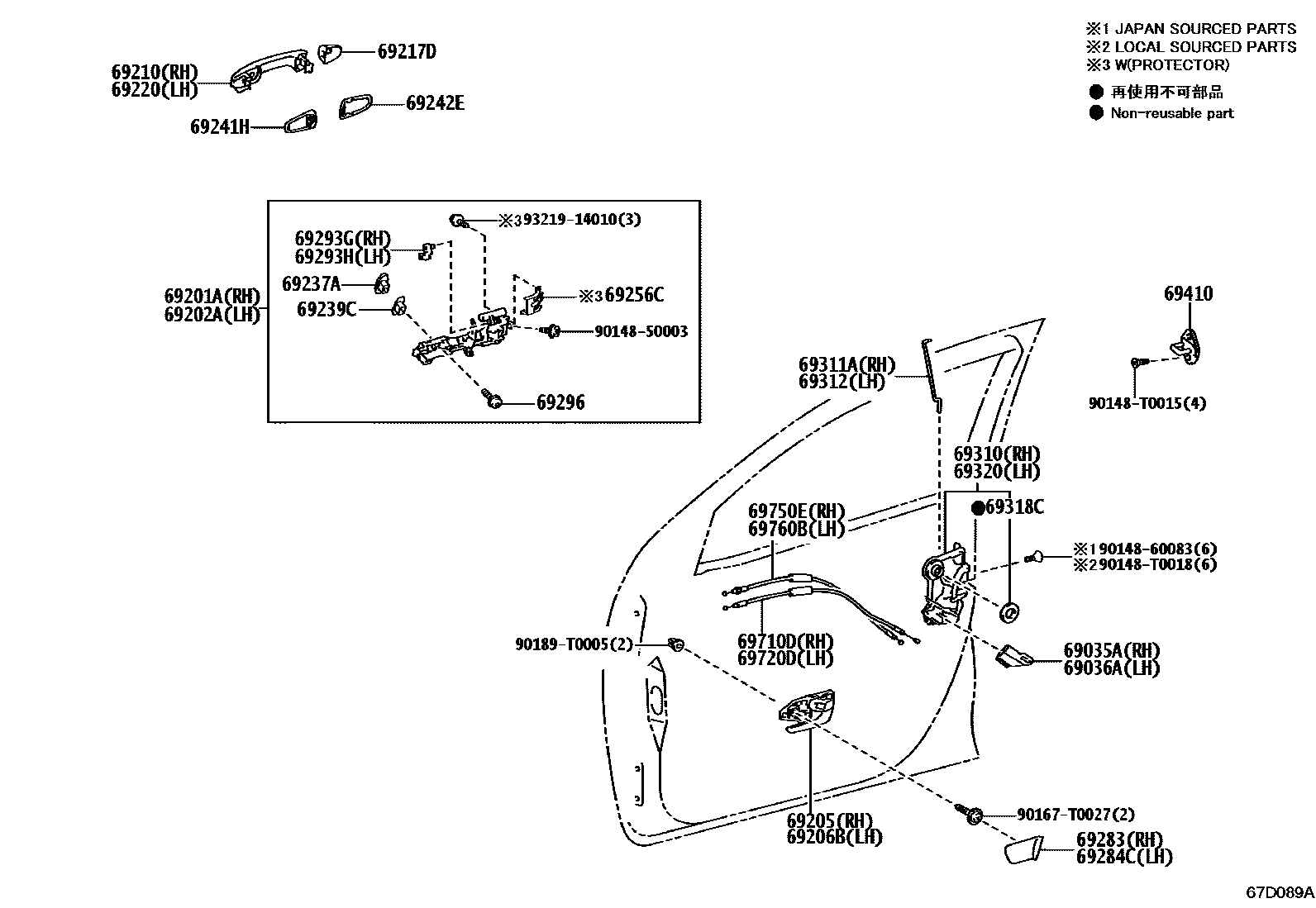

FRONT DOOR LOCK & HANDLE
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#,4#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#,4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATED
PLATED,WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)
PAINT REQ.
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
*CR,DRIVER SIDE
*CR,WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX),DRIVER SIDE
*CR,PASSENGER SIDE
*CR,WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX),PASSENGER SIDE
LESS COLOR,DRIVER SIDE
LESS COLOR,PASSENGER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATED
PLATED,WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)
PAINT REQ.
69237ANUT, FRONT DOOR HANDLE
69239CBUSH, FRONT DOOR HANDLE
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM2#,4#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM2#,4#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69296SCREW, DOOR INSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9014850003
9014860083
90148T0015
main90148-T0015
90148T0018
main90148-T0018
90167T0027
main90167-T0027
90189T0005
main90189-T0005
9321914010
36 parts on this diagram · 1 diagram in section
