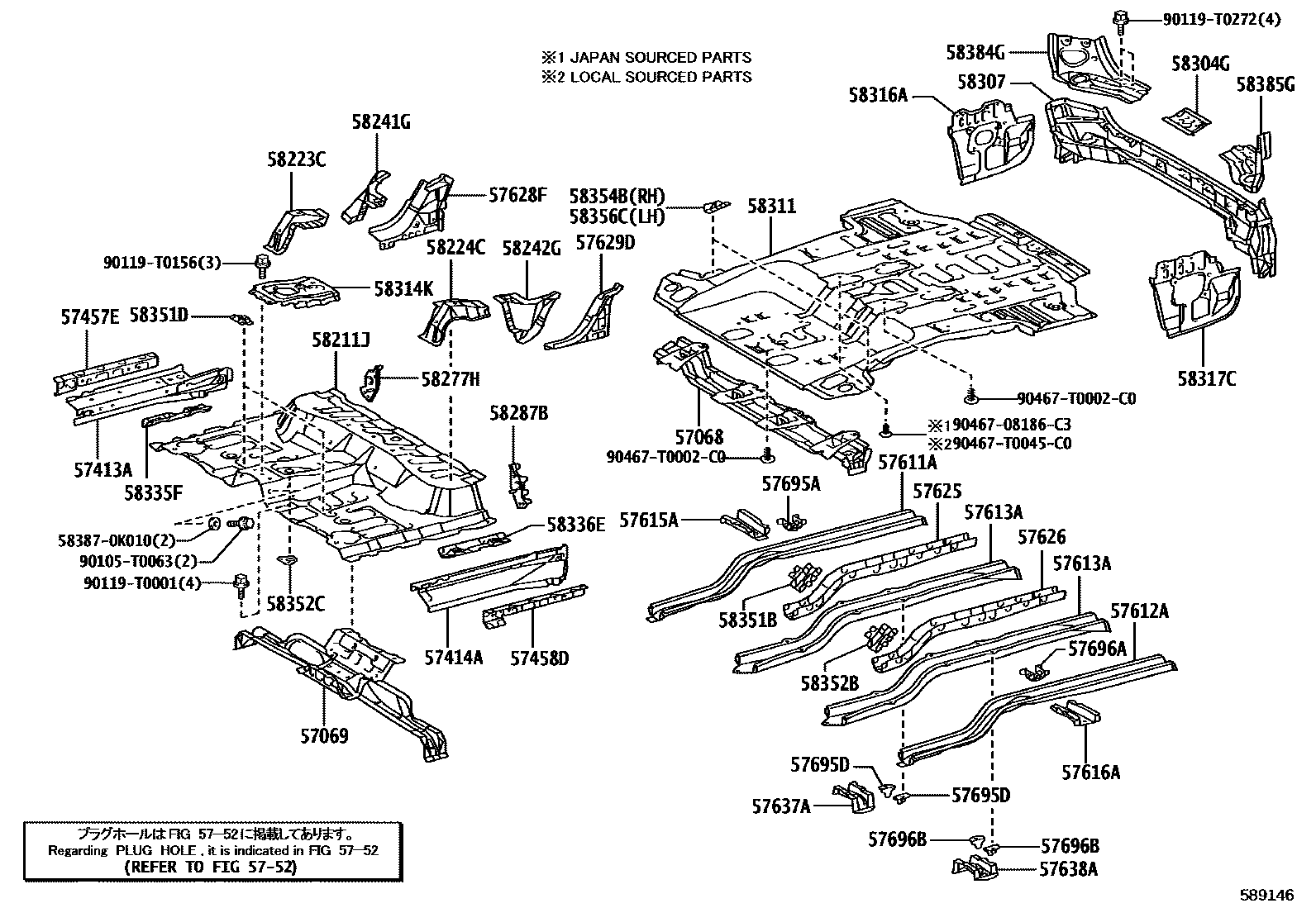

REAR FLOOR PANEL & REAR FLOOR MEMBER

57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

main57068-0K010iGUN156,TGN156202308-202407

57069MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER

main57069-KK060iGUN156,TGN156202308-202407

57413AMEMBER, FLOOR SIDE, INNER REAR RH

main57413-KK010iGUN156,TGN156202308-202407

57414AMEMBER, FLOOR SIDE, INNER REAR LH

main57414-KK010iGUN156,TGN156202308-202407

57457EPATCH, FLOOR SIDE MEMBER, RR RH

main57457-KK010iGUN156,TGN156202308-202407

57458DPATCH, FLOOR SIDE MEMBER, REAR LH

main57458-KK010iGUN156,TGN156202308-202407

5752

57611AMEMBER, REAR FLOOR SIDE, RH

main57611-0K010iGUN156,TGN156202308-202407

57612AMEMBER, REAR FLOOR SIDE, LH

main57611-0K010iGUN156,TGN156202308-202407

57613AMEMBER, REAR FLOOR SIDE CENTER

main57613-0K091×2iGUN156,TGN156202308-202407

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-0K010iGUN156,TGN156202308-202407

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-0K010iGUN156,TGN156202308-202407

57625REINFORCEMENT, REAR FLOOR SIDE MEMBER, RH

main57641-0K040iGUN156,TGN156202308-202407

57626REINFORCEMENT, REAR FLOOR SIDE MEMBER, LH

main57641-0K040iGUN156,TGN156202308-202407

57628FPLATE, REAR FLOOR SIDE MEMBER, RH

main57628-KK010iGUN156,TGN156202308-202407

57629DPLATE, REAR FLOOR SIDE MEMBER, LH

main57629-KK010iGUN156,TGN156202308-202407

57637AREINFORCEMENT, REAR FLOOR SIDE, RH

main57637-0K030iGUN156,TGN156202308-202407

57638AREINFORCEMENT, REAR FLOOR SIDE, LH

main57637-0K030iGUN156,TGN156202308-202407

57695AEXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, RH

main57696-0K010iGUN156,TGN156202308-202407

57695DBRACKET, REAR FLOOR MOUNTING, NO.2 RH

main57695-0K010×2iGUN156,TGN156202308-202407

57696AEXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, LH

main57696-0K010iGUN156,TGN156202308-202407

57696BBRACKET, REAR FLOOR MOUNTING, NO.2 LH

main57695-0K010×2iGUN156,TGN156202308-202407

58211JPAN, CENTER FLOOR

main58211-KK010iGUN156,TGN156202308-202407

58223CREINFORCEMENT, SEAT SET, NO.1

main58223-KK010iGUN156,TGN156202308-202407

58224CREINFORCEMENT, SEAT SET, NO.2

main58224-KK010iGUN156,TGN156202308-202407

58241GPANEL, FLOOR SIDE, RH

main58241-KK010iGUN156,TGN156202308-202407

58242GPANEL, FLOOR SIDE, LH

main58242-KK010iGUN156,TGN156202308-202407

58277HREINFORCEMENT, SIDE FLOOR, NO.2 RH

main58277-KK010iGUN156,TGN156202308-202407

58287BREINFORCEMENT, SIDE FLOOR, NO.2 LH

main58287-KK010iGUN156,TGN156202308-202407

58304GREINFORCE SUB-ASSY, BODY LOWER BACK PANEL

main58304-0K030iGUN156,TGN156202308-202407

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-KK011iGUN156,TGN156202308-202407

58311PAN, REAR FLOOR

main58311-KK190iGUN156,TGN156202308-202407

58314KPANEL, REAR FLOOR, CENTER

main58314-KK010iGUN156,TGN156202308-202407

58316AEXTENSION, REAR FLOOR SIDE PANEL, REAR RH

main58316-0K021iGUN156,TGN156202308-202407

58317CEXTENSION, REAR FLOOR SIDE PANEL, REAR LH

main58317-0K011iGUN156,TGN156202308-202407

58335FPLATE, FLOOR SIDE, FRONT RH

main58335-KK010iGUN156,TGN156202308-202407

58336EPLATE, FLOOR SIDE, FRONT LH

main58336-KK010iGUN156,TGN156202308-202407

58351BREINFORCEMENT, REAR FLOOR PANEL, RH

main58351-0K010iGUN156,TGN156202308-202407

58351DREINFORCEMENT, REAR FLOOR PANEL

main57555-KK010×2iGUN156,TGN156202308-202407

58352BREINFORCEMENT, REAR FLOOR PANEL, LH

main58351-0K010iGUN156,TGN156202308-202407

58352CREINFORCEMENT, REAR FLOOR PANEL, NO.2

main58352-KK010iGUN156,TGN156202308-202407

58354BREINFORCEMENT, REAR FLOOR PANEL, NO.4

main58354-0K030iGUN156,TGN156202308-202407

58356CREINFORCEMENT, REAR FLOOR PANEL, NO.6

main58356-0K010iGUN156,TGN156202308-202407

58384GGUSSET, LOWER BACK, UPPER RH

main58384-KK010iGUN156,TGN156202308-202407

58385GGUSSET, LOWER BACK, UPPER LH

main58385-KK010iGUN156,TGN156202308-202407

583870K010PLATE, REAR FLOOR FINISH

main58387-0K010

90105T0063

main90105-T0063

90119T0001

main90119-T0001

90119T0156

main90119-T0156

90119T0272

main90119-T0272

9046708186C3

main90467-08186C3

90467T0002C0

main90467-T0002C0

90467T0045C0

main90467-T0045C0

53 parts on this diagram · 1 diagram in section
