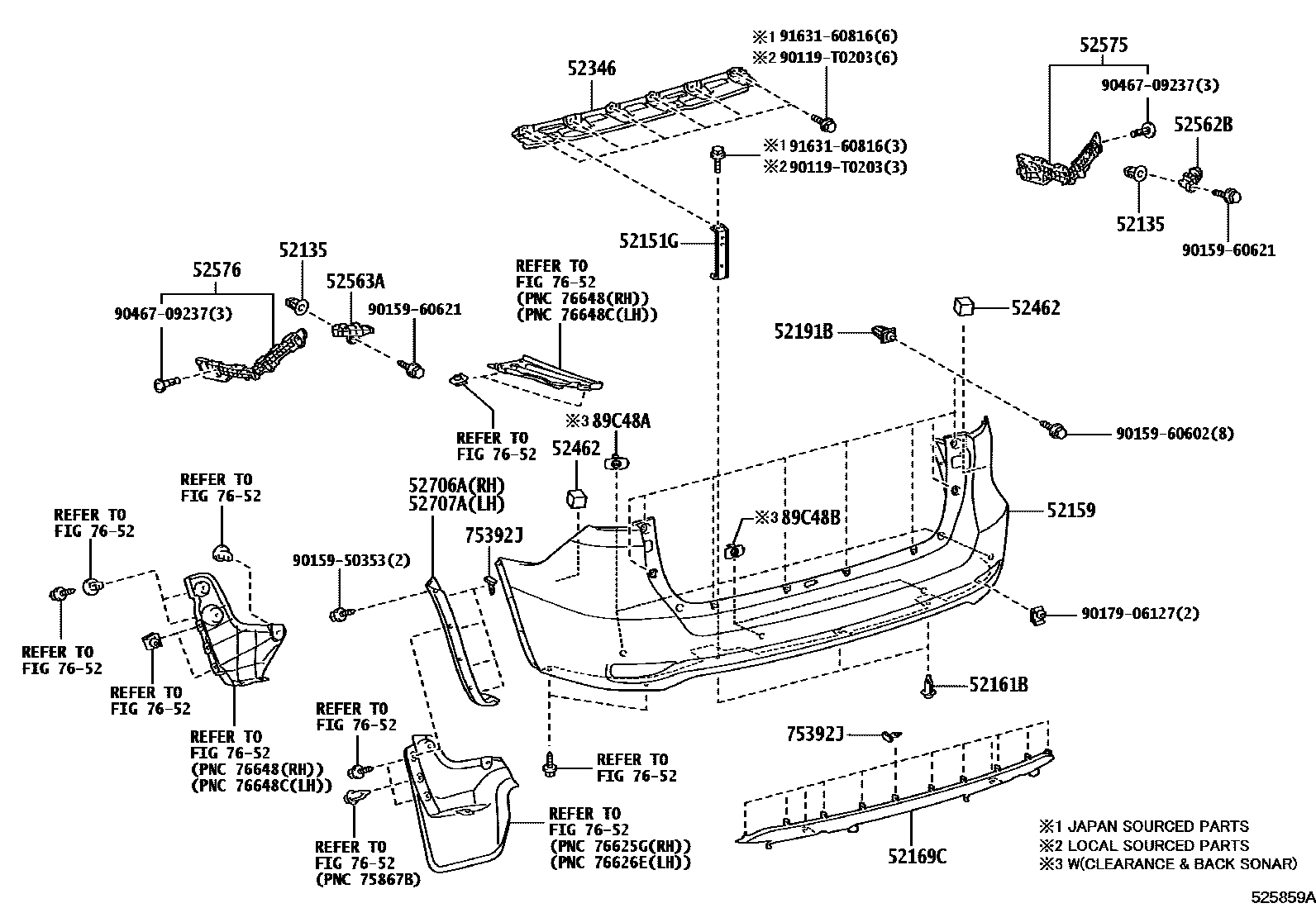

REAR BUMPER & BUMPER STAY
52135GROMMET, REAR BUMPER STAY
(J)
MLM BASIC PACKAGE
52151GEXTENSION, REAR BUMPER
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.,MLM BASIC PACKAGE
PAINT REQ.,MLM BASIC PACKAGE
52161BPIECE, REAR BUMPER
MLM BASIC PACKAGE
52169CCOVER, REAR BUMPER, LOWER
NO PAINT REQ.,MLM BASIC PACKAGE
NO PAINT REQ.,MLM BASIC PACKAGE
52191BGROMMET, REAR BUMPER STAY
52346FRAME, BACK STEP, REAR
52462PAD, REAR BUMPER, RH
NO PAINT REQ.,MLM BASIC PACKAGE
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52706AMOULDING SUB-ASSY, REAR BUMPER SIDE, RH
MLM BASIC PACKAGE
MLM BASIC PACKAGE
52707AMOULDING SUB-ASSY, REAR BUMPER SIDE, LH
MLM BASIC PACKAGE
MLM BASIC PACKAGE
75392JRETAINER, OUTSIDE MOULDING
MLM BASIC PACKAGE
(J)
7652
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
MLM BASIC PACKAGE
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
MLM BASIC PACKAGE
90119T0203
main90119-T0203
9015950353
main90159-50353
9015960602
main90159-60602
9015960621
main90159-60621
9017906127
main90179-06127
9046709237
main90467-09237
9163160816
main91631-60816
25 parts on this diagram · 2 diagrams in section
