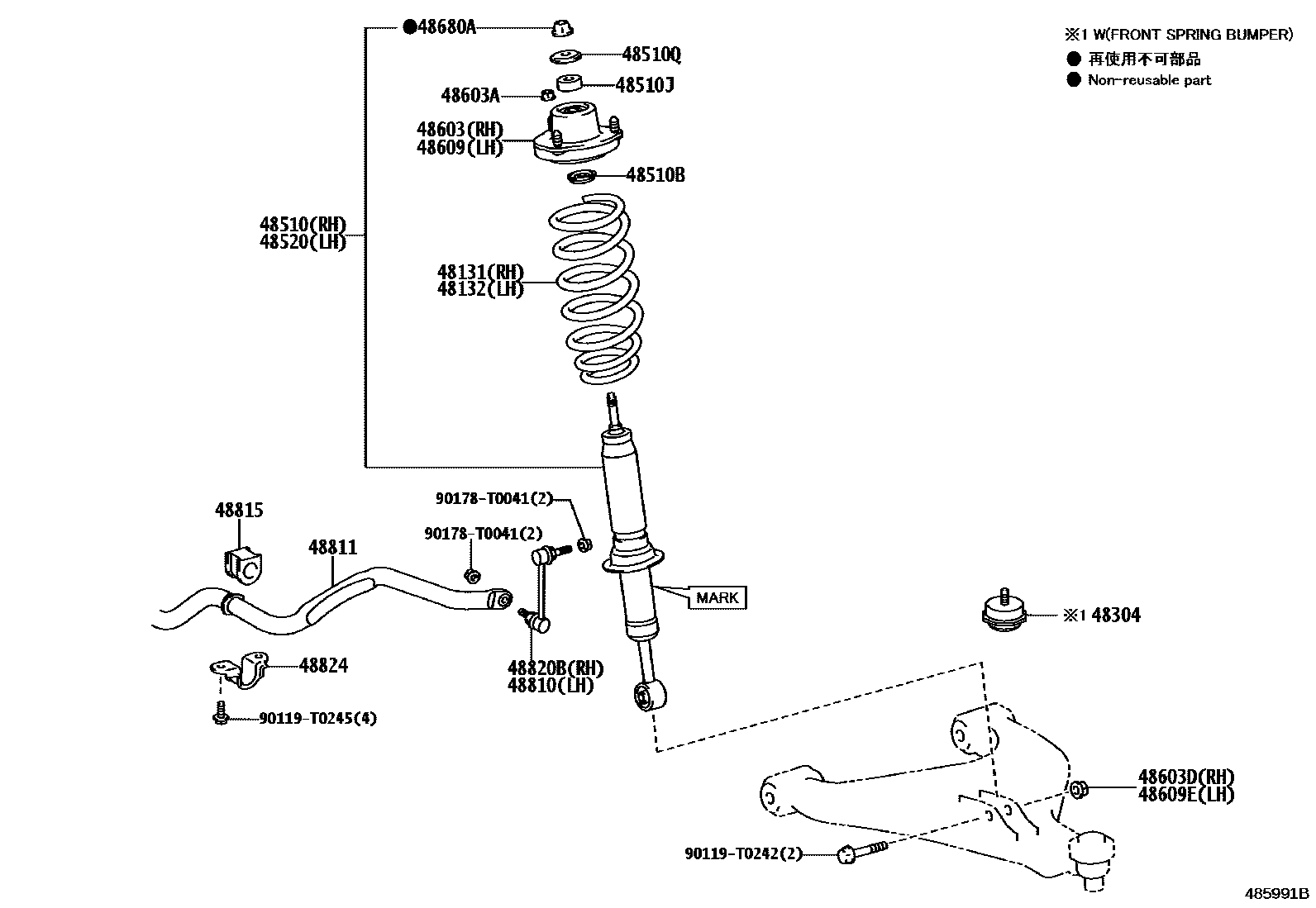

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-0KG71iTGN156202308-202407

main48131-0KN81iGUN156202308-202407

48132SPRING, FRONT COIL, LH

main48131-0KG71iTGN156202308-202407

main48131-0KK91iGUN156202308-202407

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-0K041×2iGUN156,TGN156202308-202407

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-8Z194iTGN156202308-202407

MARK 48510-0KA10

main48510-8Z208iGUN156202308-202407

MARK 48510-0KA20

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-T2003×2iGUN156,TGN156202308-202407

48510JCUSHION, FRONT SHOCK ABSORBER, NO.1

main90948-T1013×2iGUN156,TGN156202308-202407

48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)

main90948-T2004×2iGUN156,TGN156202308-202407

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-8Z194iTGN156202308-202407

MARK 48510-0KA10

main48510-8Z208iGUN156202308-202407

MARK 48510-0KA20

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-0K070iGUN156,TGN156202308-202407

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-T0050×6iGUN156,TGN156202308-202407

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90178-T0048iGUN156,TGN156202308-202407

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-0K070iGUN156,TGN156202308-202407

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90178-T0048iGUN156,TGN156202308-202407

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-T0015×2iGUN156,TGN156202308-202407

48810LINK ASSY, FRONT STABILIZER, LH

main48810-0K010iGUN156,TGN156202308-202407

48811BAR, STABILIZER, FRONT

main48811-0K170iGUN156,TGN156202308-202407

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-0K090×2iGUN156,TGN156202308-202407

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-0K030iGUN156,TGN156202308-202407

48824BRACKET, STABILIZER, FRONT

main48824-KK010×2iGUN156,TGN156202308-202407

90119T0242

main90119-T0242

90119T0245

main90119-T0245

90178T0041

main90178-T0041

22 parts on this diagram · 1 diagram in section
