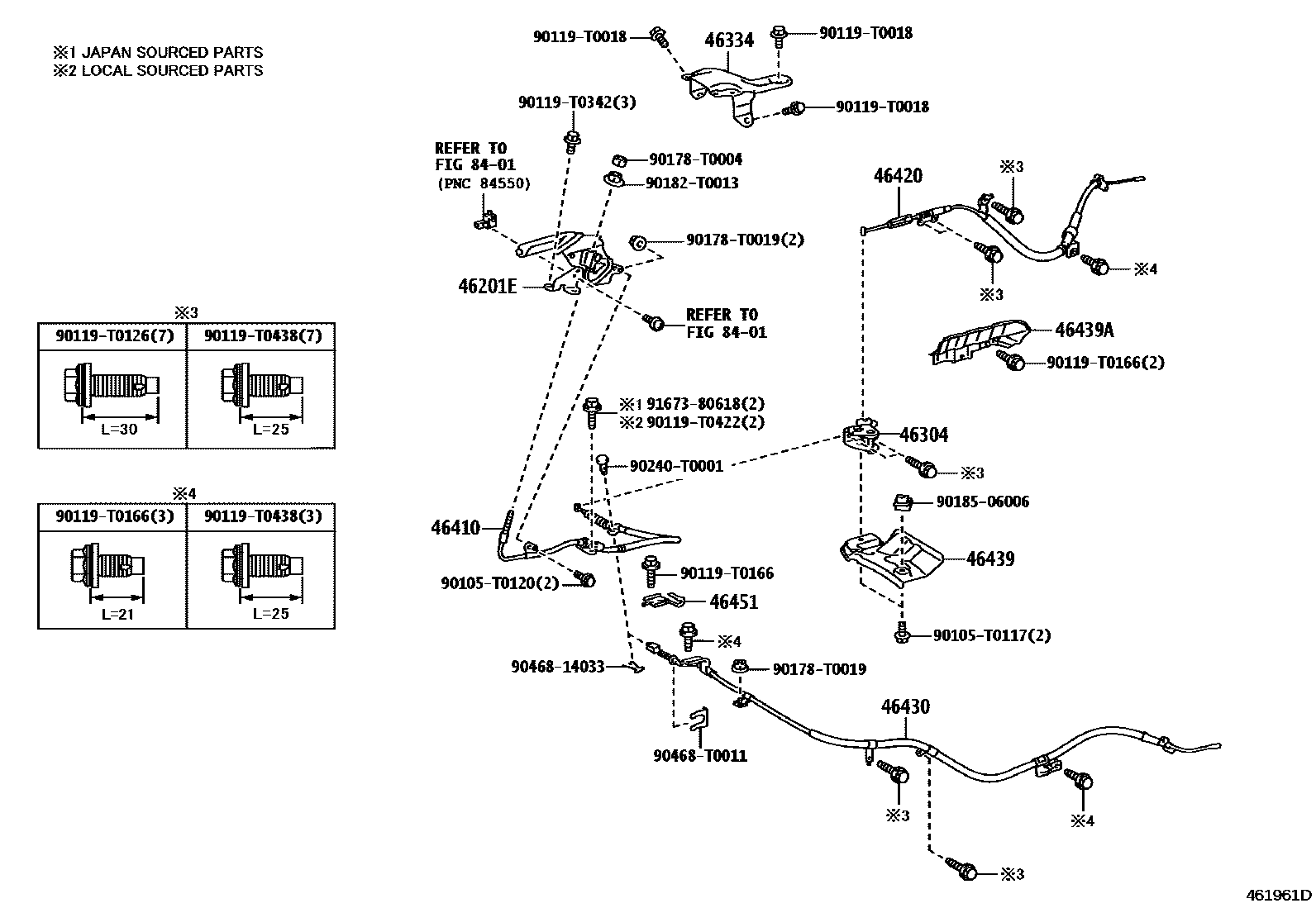

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0K230-C0iTGN156..L202308-202407

BLACK,TRIM2#,4#

main46201-0K240-C3iGUN156,TGN156..6FC202308-202407

BLACK/GRAY,TRIM2#,4#

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-0K050iGUN156,TGN156202308-202407

46334PROTECTOR, INTERMEDIATE LEVER

main46334-KK010iGUN156,TGN156202308-202407

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0K100iGUN156,TGN156202308-202407

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0K190iGUN156,TGN156202308-202407

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0K190iGUN156,TGN156202308-202407

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-0K090iGUN156,TGN156202308-202407

46439AINSULATOR, PARKING BRAKE CABLE HEAT, NO.2

main46439-0K070iGUN156,TGN156202308-202407

46451BRACKET, CABLE SUPPORT

main46451-0K050iGUN156,TGN156202308-202401

sub46451-0K051

main46451-0K051iGUN156,TGN156202402-202407

8401

90105T0117

main90105-T0117

90105T0120

main90105-T0120

90119T0018

main90119-T0018

90119T0126

main90119-T0126

90119T0166

main90119-T0166

90119T0342

main90119-T0342

90119T0422

main90119-T0422

90119T0438

main90119-T0438

90178T0004

main90178-T0004

90178T0019

main90178-T0019

90182T0013

main90182-T0013

9018506006

main90185-06006

90240T0001

main90240-T0001

9046814033

main90468-14033

90468T0011

main90468-T0011

9167380618

main91673-80618

26 parts on this diagram · 2 diagrams in section
