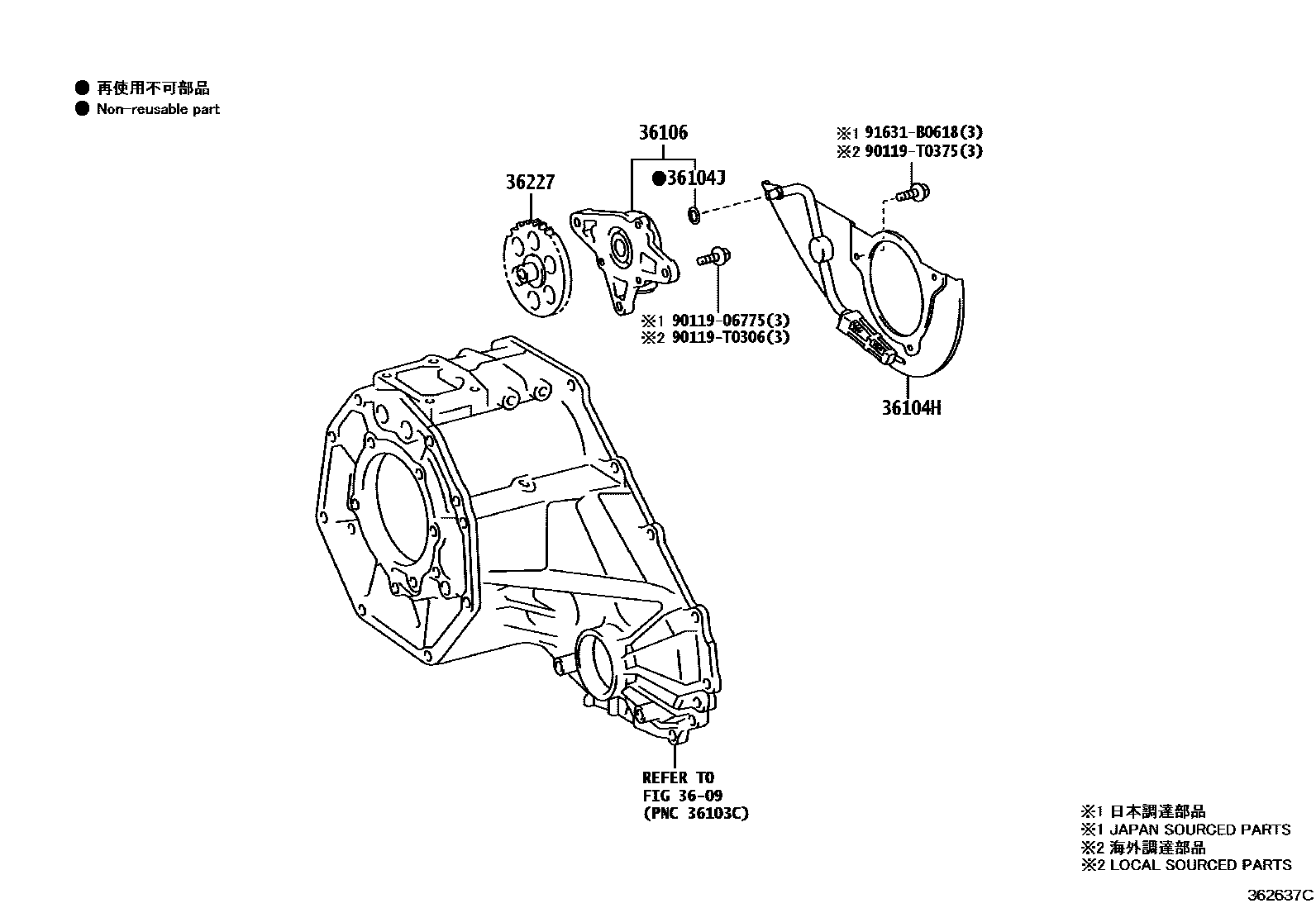

TRANSFER OIL PUMP

3609

36104HSEPARATOR SUB-ASSY, TRANSFER OIL

main36104-35021iGUN156,TGN156202308-202407

*382,*381

36104JRING, O (FOR TRANSFER OIL PUMP BODY)

main96721-19009iGUN156,TGN156202308-202407

*382,*381

36106BODY SUB-ASSY, TRANSFER OIL PUMP

main36106-04010iGUN156,TGN156202308-202407

*382

main36106-35070iGUN156,TGN156202308-202407

*381

36227GEAR, TRANSFER OIL PUMP

main36227-0K011iGUN156,TGN156202308-202407

*382

main36227-35021iGUN156,TGN156202308-202407

*381

9011906775

main90119-06775

90119T0306

main90119-T0306

90119T0375

main90119-T0375

91631B0618

main91631-B0618

9 parts on this diagram · 1 diagram in section
