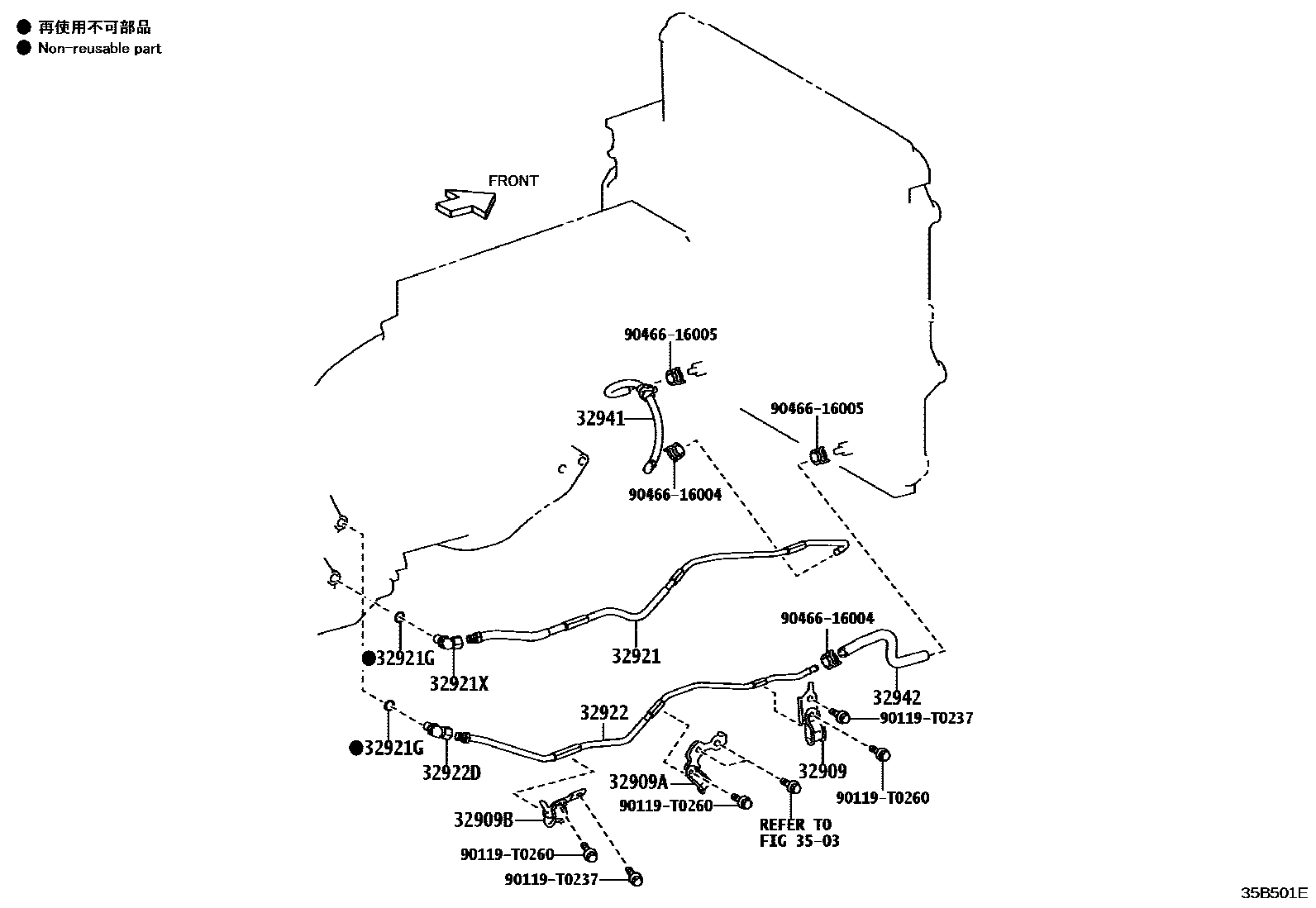

OIL COOLER & TUBE (ATM)

0001 1AC60F 0002 1AC60F

32909CLAMP SUB-ASSY, TRANSMISSION OIL COOLER TUBE, NO.1

main32909-KK030iGUN156¥600202308-202407

main32909-KK090iTGN156..S202308-202407

32909ACLAMP SUB-ASSY, TRANSMISSION OIL COOLER TUBE, NO.2

main32909-KK020iGUN156¥860202308-202407

main32909-KK080iTGN156..S202308-202407

32909BCLAMP SUB-ASSY, TRANSMISSION OIL COOLER TUBE, NO.3

main32909-KK010iGUN156¥610202308-202407

main32909-KK070iTGN156..S202308-202407

32921TUBE, OIL COOLER INLET, NO.1

main32921-0K090iGUN156¥1,180202308-202407

main32921-0K110iTGN156..S202308-202407

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11030iGUN156¥140202308-202407

TYPE A:REFER 35-01

main90301-T0069iGUN156,TGN156..6FC202308-202407

TYPE B:REFER 35-01

32921XUNION OR ELBOW, OIL COOLER INLET

main90407-16009iGUN156,TGN156..6FC¥390202308-202407

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-0K090iGUN156¥1,180202308-202407

main32922-0K110iTGN156..S202308-202407

32922DUNION OR ELBOW, OIL COOLER OUTLET

main90407-16009iGUN156,TGN156..6FC¥390202308-202407

32941HOSE, OIL COOLER INLET, NO.1

main32941-0K010iGUN156¥1,920202308-202407

main32941-0K030iTGN156..S202308-202407

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-0K010iGUN156¥1,070202308-202407

main32942-0K060iTGN156..S202308-202407

3503

90119T0237

main90119-T0237

90119T0260

main90119-T0260

9046616004

main90466-16004¥180

9046616005

main90466-16005¥180

15 parts on this diagram · 2 diagrams in section
