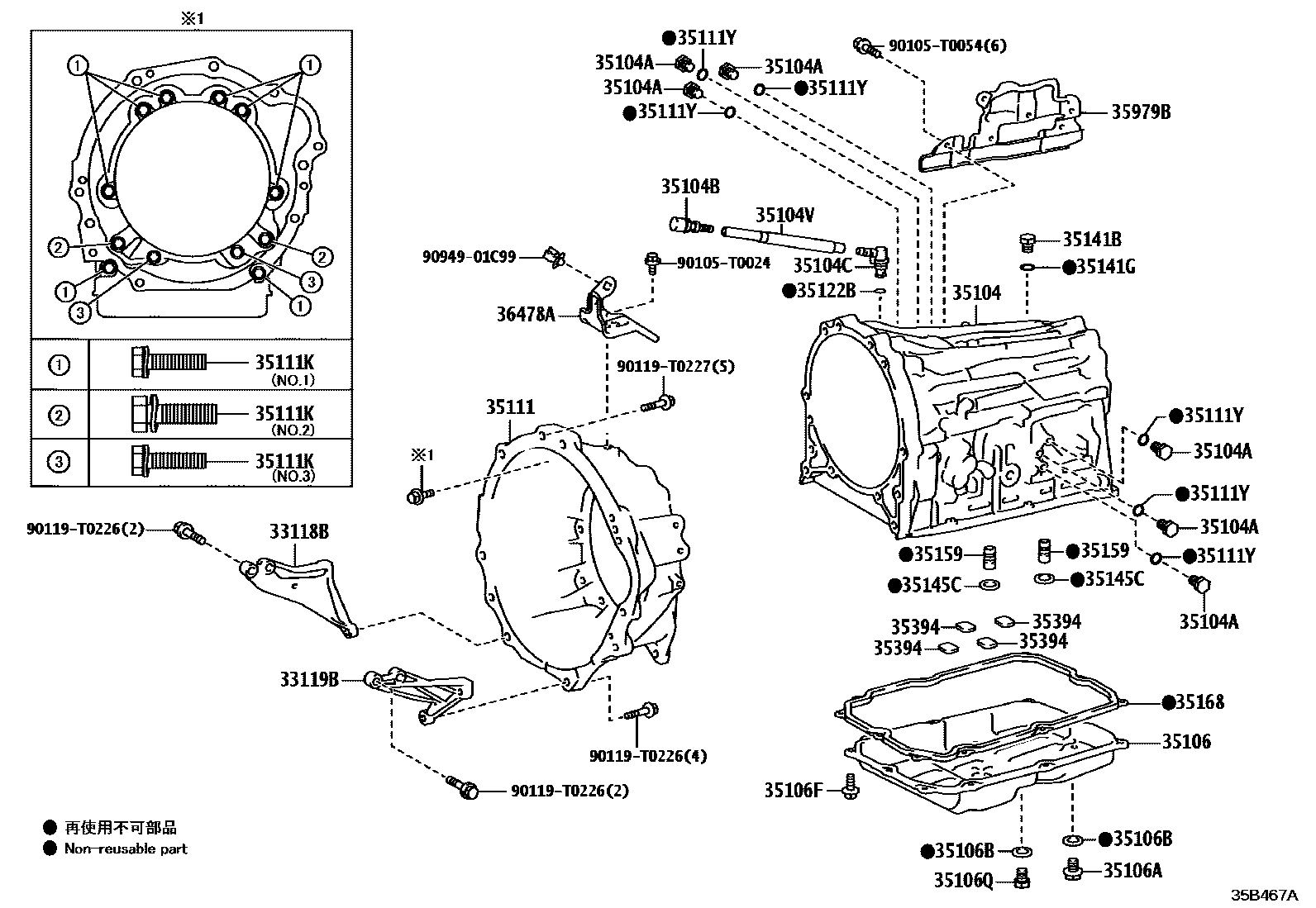

TRANSMISSION CASE & OIL PAN (ATM)

0001 1AC60F 0002 1AC60F

33118BPLATE, STIFFENER, RH(ATM)

main33118-0K030iGUN156202308-202407

33119BPLATE, STIFFENER, LH(ATM)

main33119-0K020iGUN156202308-202407

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-0K010iGUN156,TGN156..6FC202308-202407

TYPE B:REFER 35-01

main35104-71020iGUN156202308-202407

TYPE A:REFER 35-01

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001iGUN156202308-202407

TYPE A:REFER 35-01

main90341-08001iGUN156202308-202407

TYPE B:REFER 35-01

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03211iGUN156202308-202407

TYPE A:REFER 35-01

main90930-03211iGUN156202308-202407

(J),TYPE B:REF.35-01

main90930-T3004iGUN156,TGN156..6FC202308-202407

(L),TYPE B:REF.35-01

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03220iGUN156202308-202407

TYPE A:REFER 35-01

main90930-03220iGUN156202308-202407

(J),TYPE B:REF.35-01

main90930-T3006iGUN156,TGN156..6FC202308-202407

(L),TYPE B:REF.35-01

35104VHOSE (FOR BREATHER PLUG)

main90447-11078iTGN156..S202308-202407

TYPE B:REFER 35-01

main90447-11080iGUN156202308-202407

TYPE B:REFER 35-01,TYPE A:REFER 35-01

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-0K010iGUN156,TGN156..6FC202308-202407

TYPE B:REFER 35-01

main35106-71050iGUN156202308-202407

TYPE A:REFER 35-01

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iGUN156202308-202407

TYPE A:REFER 35-01

main90341-10011iGUN156202308-202407

TYPE B:REFER 35-01

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iGUN156202308-202407

TYPE A:REFER 35-01

main35178-30010iGUN156202308-202407

TYPE B:REFER 35-01

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06A02iGUN156202308-202407

TYPE A:REFER 35-01

main90119-06A02iGUN156202308-202407

TYPE B:REFER 35-01

35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90341-10021iGUN156202308-202407

TYPE A:REFER 35-01

main90341-10021iGUN156202308-202407

TYPE B:REFER 35-01

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-0K010iGUN156202308-202407

TYPE B:REFER 35-01

main35111-0K020iTGN156..S202308-202407

TYPE B:REFER 35-01

main35111-71030iGUN156202308-202407

TYPE A:REFER 35-01

35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)

main90119-10232iGUN156202308-202407

*10-1.5PX35-30,T/P A:REF.35-01,NO.1

main90119-10232iGUN156202308-202407

*10-1.5PX35-30,T/P B:REF.35-01,NO.1

main90119-10947iGUN156202308-202407

*10-1.50PX35-29.3,T/P A:REF.35-01,NO.3

main90119-10947iGUN156202308-202407

*10-1.50PX35-29.3,T/P B:REF.35-01,NO.3

main90119-12378iGUN156202308-202407

*12-1.75PX38-30,T/P A:REF.35-01,NO.2

main90119-12378iGUN156202308-202407

*12-1.75PX38-30,T/P B:REF.35-01,NO.2

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196iGUN156202308-202407

TYPE A:REFER 35-01

main90301-T0067iGUN156,TGN156..6FC202308-202407

TYPE B:REFER 35-01

35122BRING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION)

main90301-08015iGUN156202308-202407

TYPE A:REFER 35-01

main90301-T0070iGUN156,TGN156..6FC202308-202407

(L),TYPE B:REF.35-01

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-14011iGUN156202308-202407

TYPE A:REFER 35-01

main90341-14011iGUN156202308-202407

TYPE B:REFER 35-01

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-11030iGUN156202308-202407

TYPE A:REFER 35-01

main90301-T0069iGUN156,TGN156..6FC202308-202407

TYPE B:REFER 35-01

35145CGASKET, TRANSAXLE CASE

main35145-60020iGUN156202308-202407

TYPE A:REFER 35-01

main35145-60020iGUN156202308-202407

TYPE B:REFER 35-01

35159GASKET, BRAKE DRUM

main35159-0K010iGUN156,TGN156..6FC202308-202407

TYPE B:REFER 35-01

main35159-71010iGUN156202308-202407

TYPE A:REFER 35-01

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-0K010iGUN156,TGN156..6FC202308-202407

(L),TYPE B:REF.35-01

main35168-71010iGUN156202308-202407

TYPE A:REFER 35-01

main35168-71010iGUN156202308-202407

(J),TYPE B:REF.35-01

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iGUN156202308-202407

TYPE A:REFER 35-01

main35394-30011iGUN156202308-202407

TYPE B:REFER 35-01

35979BINSULATOR, TRANSMISSION, RH

main35979-0K010iGUN156,TGN156..6FC202308-202407

36478ABRACKET, TRANSMISSION BREATHER

main36478-0K040iTGN156..S202308-202407

main36478-0K060iGUN156202308-202407

90105T0024

main90105-T0024

90105T0054

main90105-T0054

90119T0226

main90119-T0226

90119T0227

main90119-T0227

9094901C99

main90949-01C99

29 parts on this diagram · 2 diagrams in section
