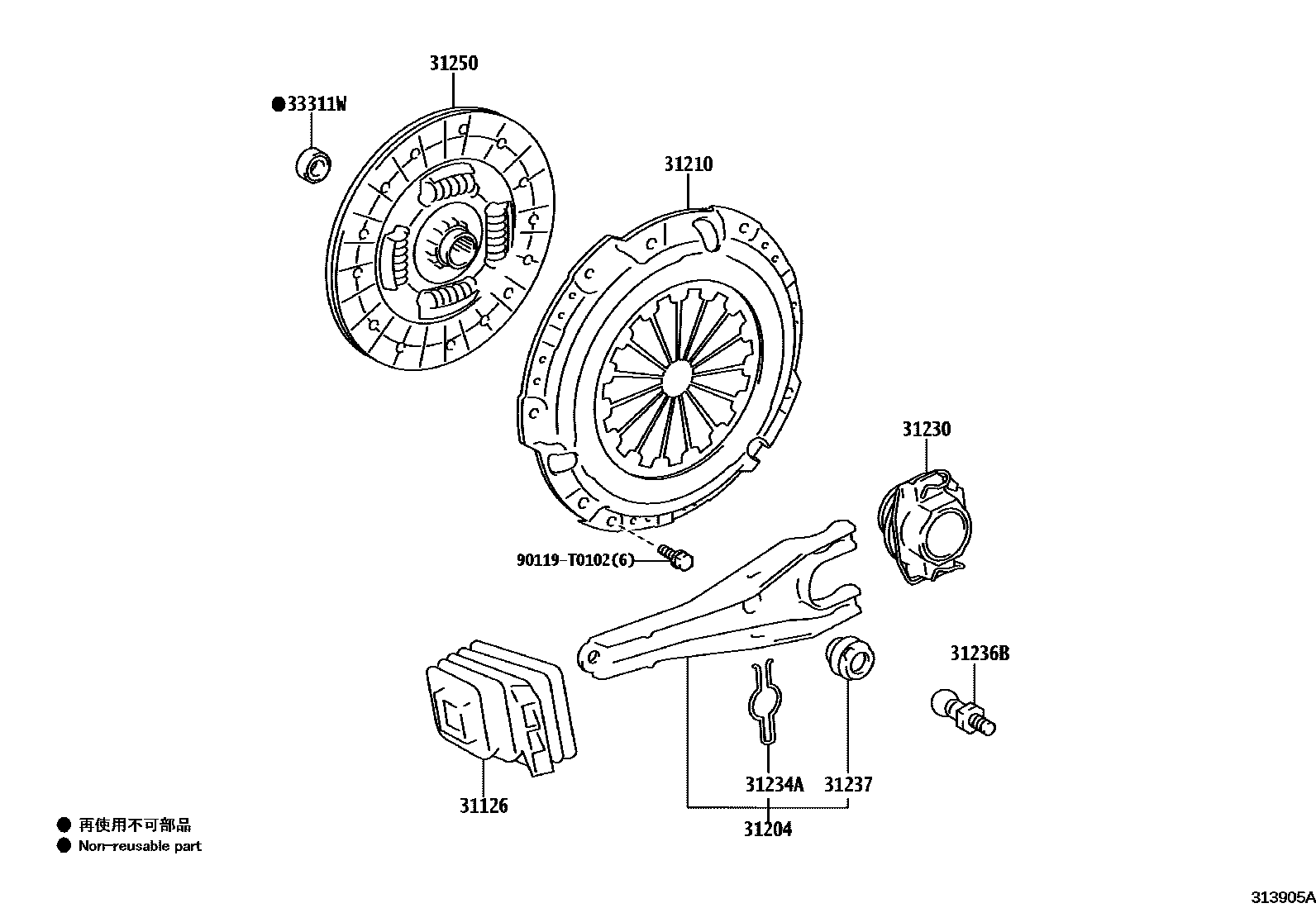

CLUTCH & RELEASE FORK
31126BOOT, CLUTCH RELEASE FORK
TYPE B:REFER 33-01
31204FORK SUB-ASSY, CLUTCH RELEASE
TYPE B:REFER 33-01
31210COVER ASSY, CLUTCH
31230BEARING ASSY, CLUTCH RELEASE
TYPE B:REFER 33-01
TYPE B:REFER 33-01
31234ASPRING, RELEASE FORK SUPPORT
TYPE B:REFER 33-01
31236BSUPPORT, RELEASE FORK
TYPE B:REFER 33-01
31237BOOT, CLUTCH RELEASE FORK SUPPORT
TYPE B:REFER 33-01
31250DISC ASSY, CLUTCH
sub31250-0K262
33311WBEARING (FOR INPUT SHAFT)
90119T0102
main90119-T0102
10 parts on this diagram · 1 diagram in section
