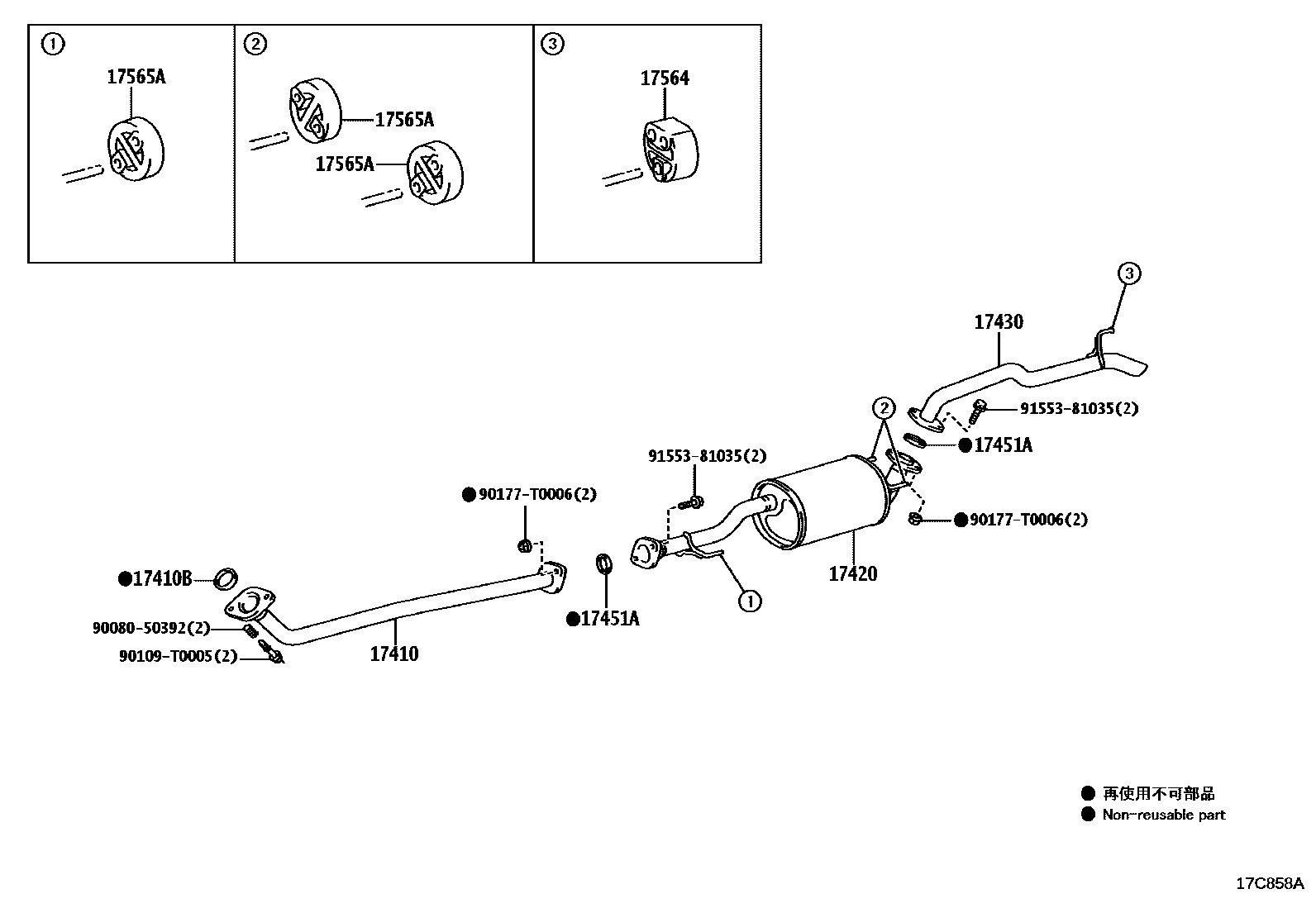

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17451AGASKET, EXHAUST PIPE, NO.2
17564SUPPORT,EXHAUST PIPE, NO.4
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
9008050392
main90080-50392
90109T0005
main90109-T0005
90177T0006
main90177-T0006
9155381035
main91553-81035
12 parts on this diagram · 2 diagrams in section
