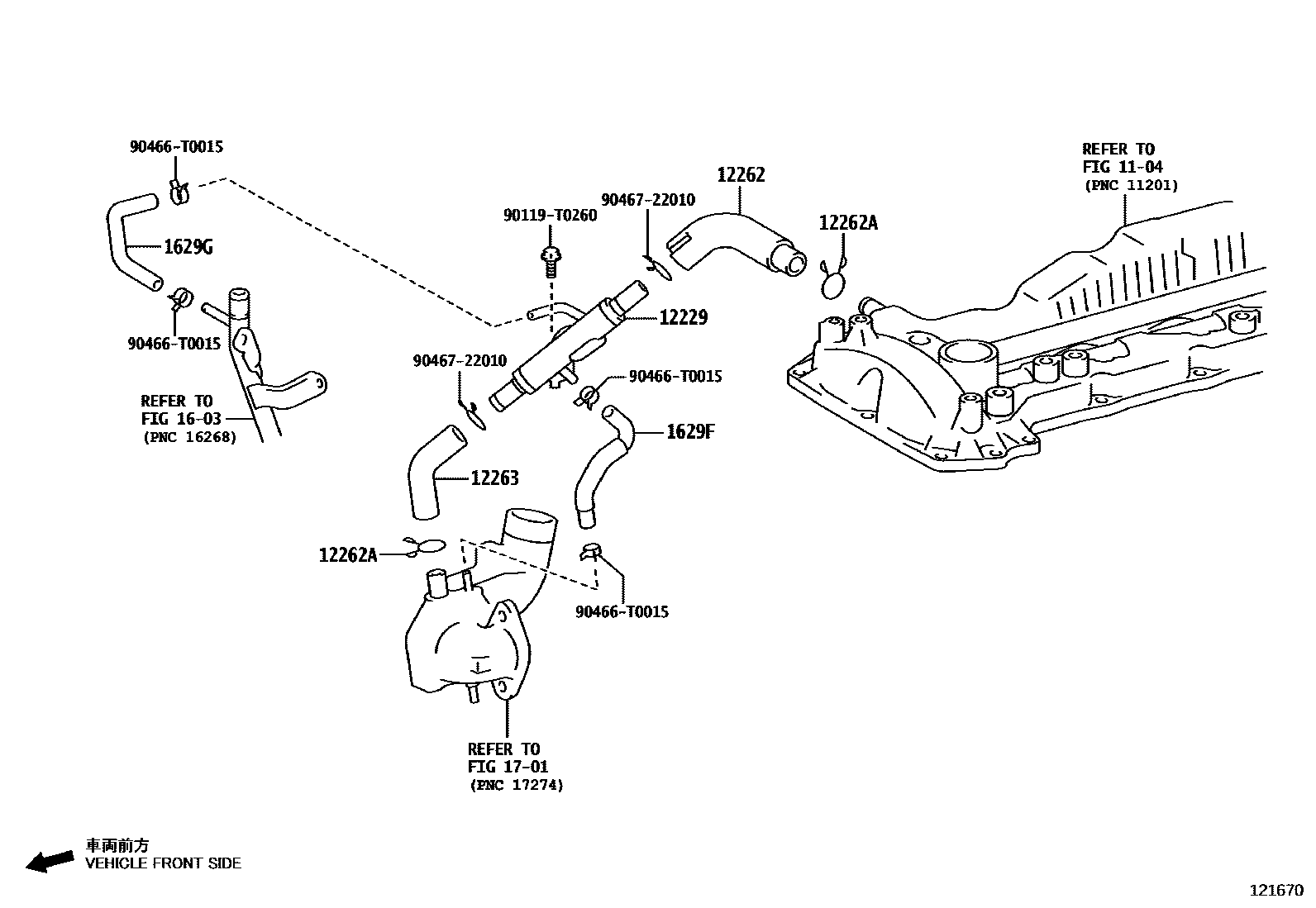

VENTILATION HOSE
1104
12229PIPE, VENTILATION
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
12262HOSE, VENTILATION, NO.2
12262ACLIP(FOR VENTILATION HOSE NO.2)
(L),NO.1
(J),NO.1
NO.2
(J),NO.2
12263HOSE, VENTILATION, NO.3
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
1603
1629FHOSE, WATER BY-PASS, NO.19
1629GHOSE, WATER BY-PASS, NO.20
1701
90119T0260
main90119-T0260
90466T0015
main90466-T0015
9046722010
12 parts on this diagram · 3 diagrams in section
