MOUNTING

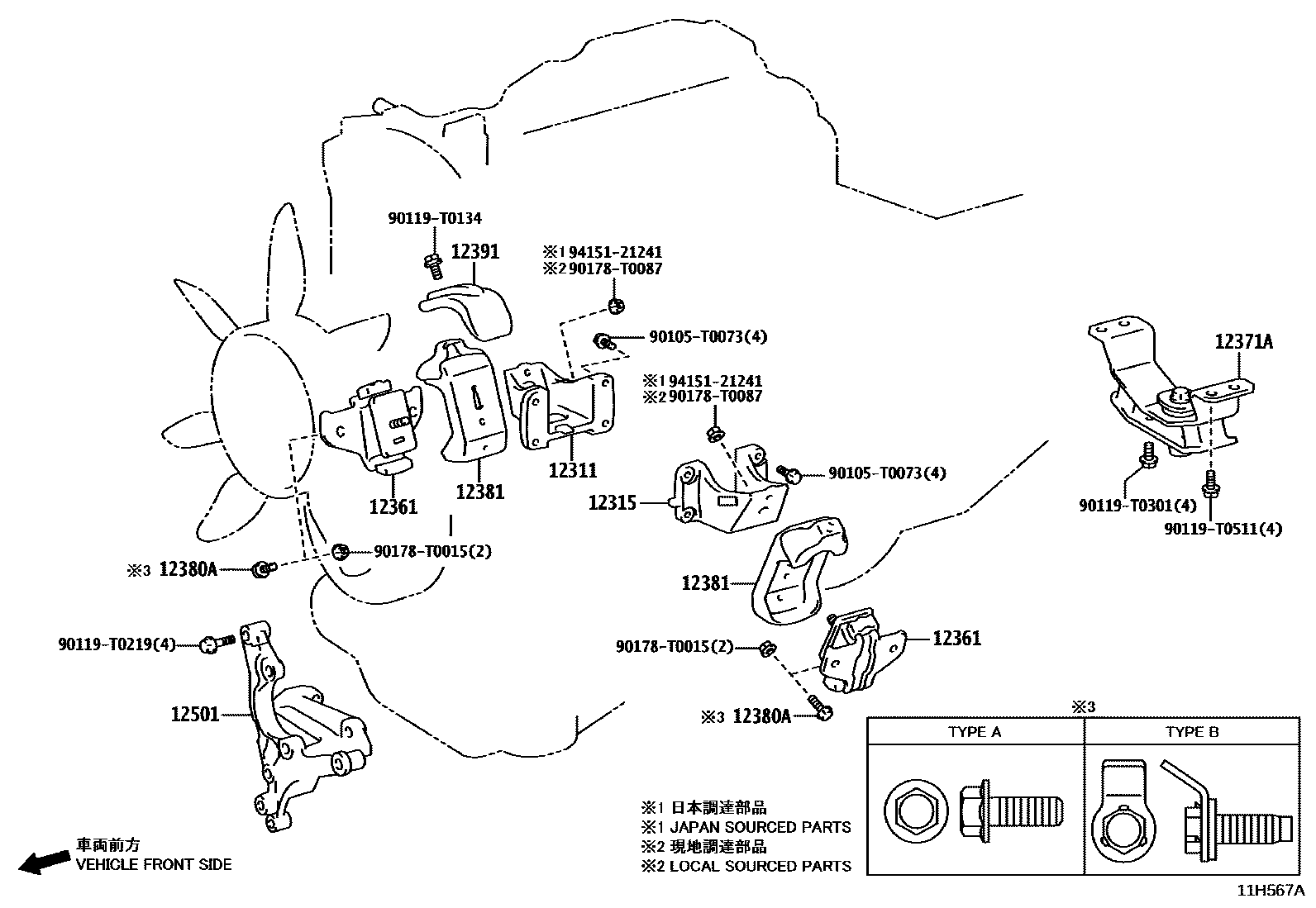

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-0C010i202308-202407

IDN SOURCED PARTS

main12311-0E020i202308-202407

THA SOURCED PARTS

main12311-0E050i202308-202407

IND SOURCED PARTS

main12311-0C020i202308-202407

EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-0C010i202308-202407

IDN SOURCED PARTS

main12315-0E010i202308-202407

THA SOURCED PARTS

main12315-0E040i202308-202407

IND SOURCED PARTS

main12315-0C020i202308-202407

EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-0L021×2i202308-202407

(L)

main12361-30171×2i202308-202407

(J)

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-0C210i202308-202407

main12371-0C270i202308-202407

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-0L210i202308-202407

12380ABOLT(FOR ENGINE MOUNTING INSURATOR)

main90105-T0174×4i202308-202407

TYPE A:REFER ILLUST.

main90910-03003×4i202308-202407

TYPE B:REFER ILLUST.

12381STABILIZER, ENGINE MOUNTING

main12381-0L081×2i202308-202407

(L)

main12381-30091×2i202308-202407

(J)

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-0L010i202308-202407

MARK=T

12501BRACKET SUB-ASSY, ALTERNATOR

main12501-0E011i202308-202407

THA SOURCED PARTS

main12501-0E020i202308-202407

IND SOURCED PARTS

90105T0073

main90105-T0073

90119T0134

main90119-T0134

90119T0219

main90119-T0219

90119T0301

main90119-T0301

90119T0511

main90119-T0511

90178T0015

main90178-T0015

90178T0087

main90178-T0087

9415121241

main94151-21241

17 parts on this diagram · 3 diagrams in section
