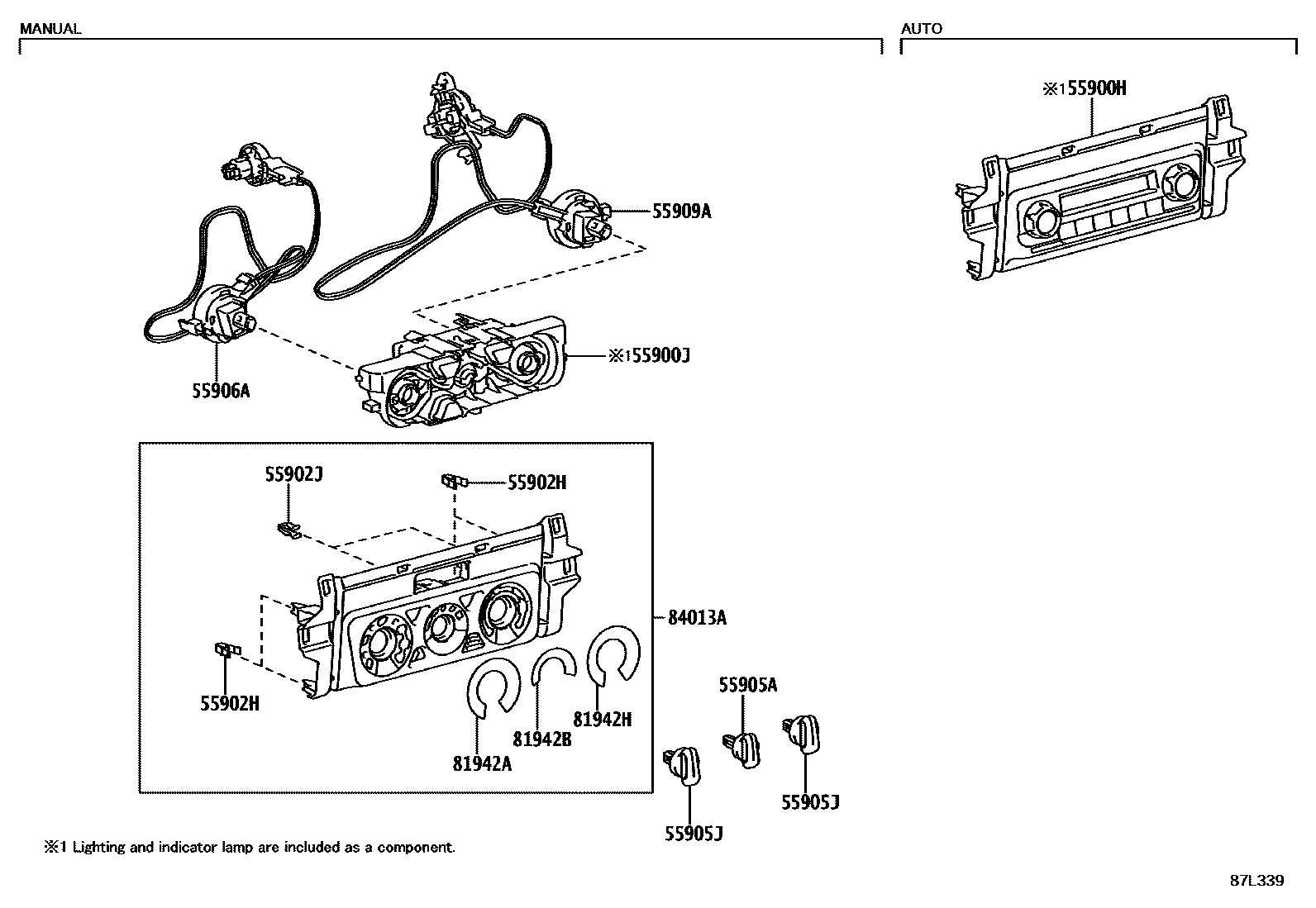

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
55900HCONTROL ASSY, AIR CONDITIONER(AUTO)
STEERING WHEEL-LEATHER & WOOD LIKE,W(STEERING HEATER)&OUTSIDE REAR VIEW MIRROR-*273 & W(*MIH) & W(*SITL)&FRONT AIR CONDITIONER-AUTO
55900JCONTROL ASSY, AIR CONDITIONER(MANUAL)
55902HCLIP(FOR AIR CONDITIONER PANEL)
55902JCLIP(FOR AIR CONDITIONER PANEL) NO.2
55905AKNOB, HEATER CONTROL
55905JKNOB SUB-ASSY, CONTROL
55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL
81942ASHEET, HEATER CONTROL NAME, NO.1
81942BSHEET, HEATER CONTROL NAME, NO.2
81942HSHEET, HEATER CONTROL NAME, NO.3
84013APANEL SUB-ASSY, INTEGRATION
12 parts on this diagram · 5 diagrams in section
