MOULDING
5353
62703GRETAINER SUB-ASSY, QUARTER WINDOW GLASS, REAR RH
62704ARETAINER SUB-ASSY, QUARTER WINDOW GLASS, REAR LH
62775CCLIP, QUARTER WINDOW
62791GMOULDING, QUARTER WINDOW, UPPER RH
62792VMOULDING, QUARTER WINDOW, UPPER LH
75039CLIP SUB-ASSY, OUTSIDE MOULDING
(J)
(L)
75551MOULDING, ROOF DRIP SIDE FINISH, RH
NO PAINT REQ.,ROOF RAIL-WITH
75552MOULDING, ROOF DRIP SIDE FINISH, LH
NO PAINT REQ.,ROOF RAIL-WITH
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
ROOF RAIL-WITH
75573BMOULDING, BACK WINDOW, OUTSIDE
75601AMOULDING SUB-ASSY, FRONT FENDER, RH
NO PAINT REQ.
75602AMOULDING SUB-ASSY, FRONT FENDER, LH
NO PAINT REQ.
75605AMOULDING SUB-ASSY, QUARTER OUTSIDE, RH
75606AMOULDING SUB-ASSY, QUARTER OUTSIDE, LH
75693ARETAINER, QUARTER BELT MOULDING
75693BRETAINER, QUARTER BELT REAR MOULDING, NO.1
75694RETAINER, QUARTER BELT REAR MOULDING, NO.2
75695PAD, QUARTER OUTSIDE MOULDING
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
7652
76923BRETAINER, SIDE MUDGUARD
90159T0034
main90159-T0034
9046708224
main90467-08224
9046708225
main90467-08225
9046709237
main90467-09237

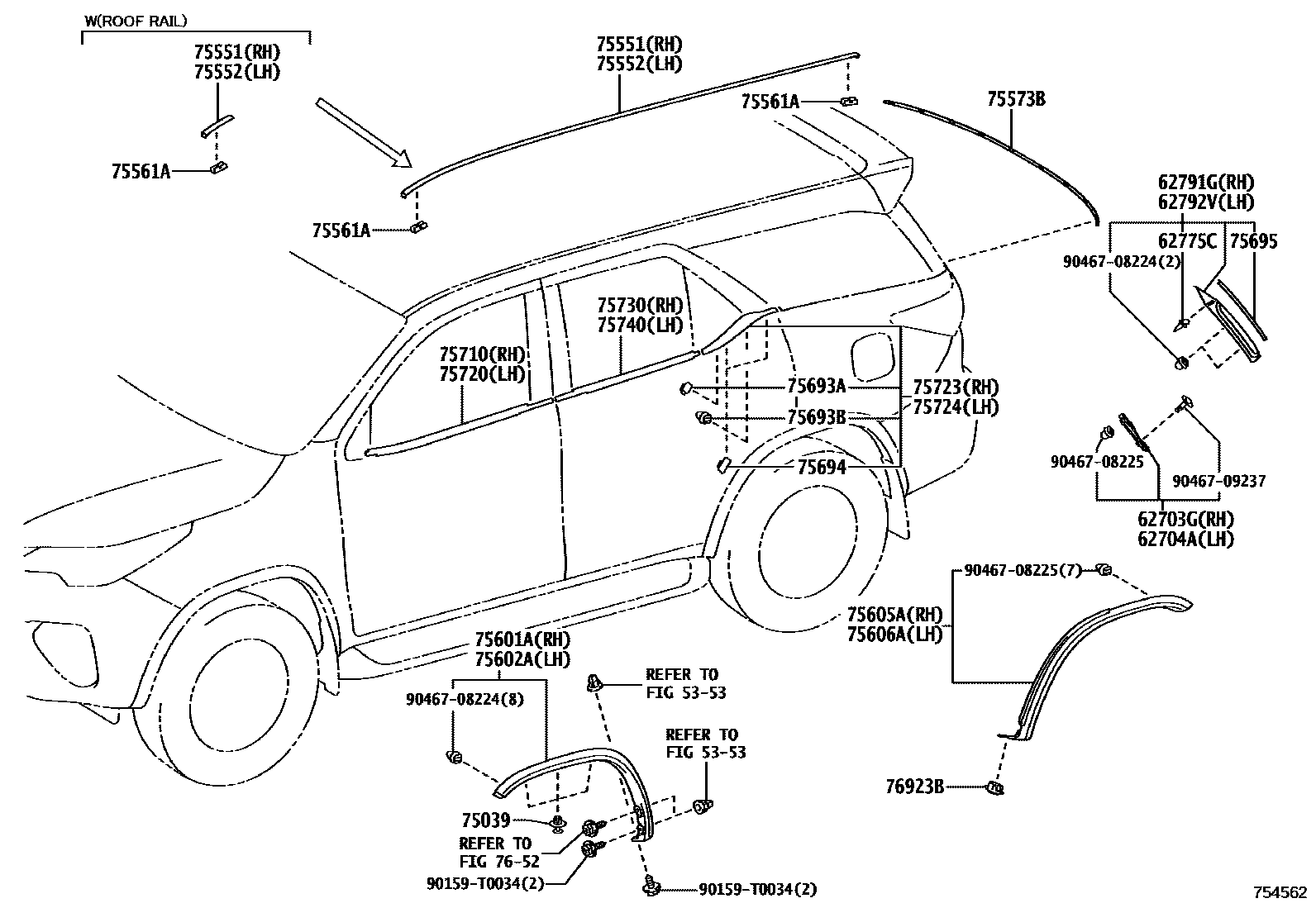

31 parts on this diagram · 1 diagram in section
