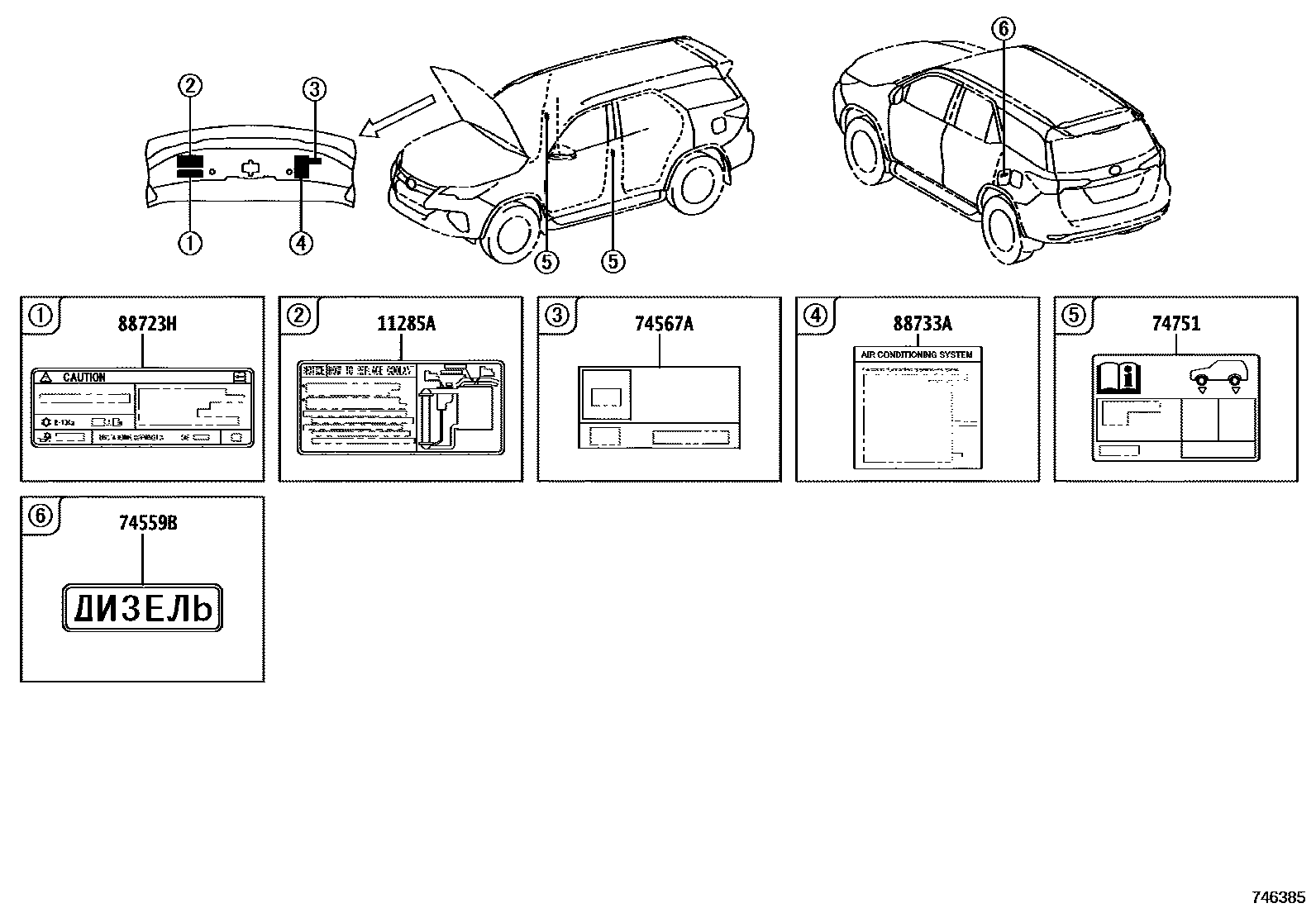

CAUTION PLATE

0001 1ENGINE ROOM & EXTERIOR 0002 1INTERIOR

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-0E010i1GDFTV..GUN156202208-202307

74559BLABEL, FUEL INFORMATION

main74559-60020iGUN156202208-202307

74567APLATE, E.C.E APPROVED NUMBER

main74567-25041iGUN156202208-202307

74751LABEL, TIRE PRESSURE INFORMATION

main42661-0KP40iGUN156,TGN156..L,S202208-202307

main42661-0KS60iGUN156..H202208-202307

TIRE & DISC WHEEL-265/60R18, ALUMINUM

88723HLABEL, COOLER SERVICE CAUTION

main88723-0K280iGUN156,TGN156202208-202307

88733ALABEL, COOLER SERVICE INFORMATION

main88733-0K010iGUN156,TGN156202208-202307

6 parts on this diagram · 2 diagrams in section
