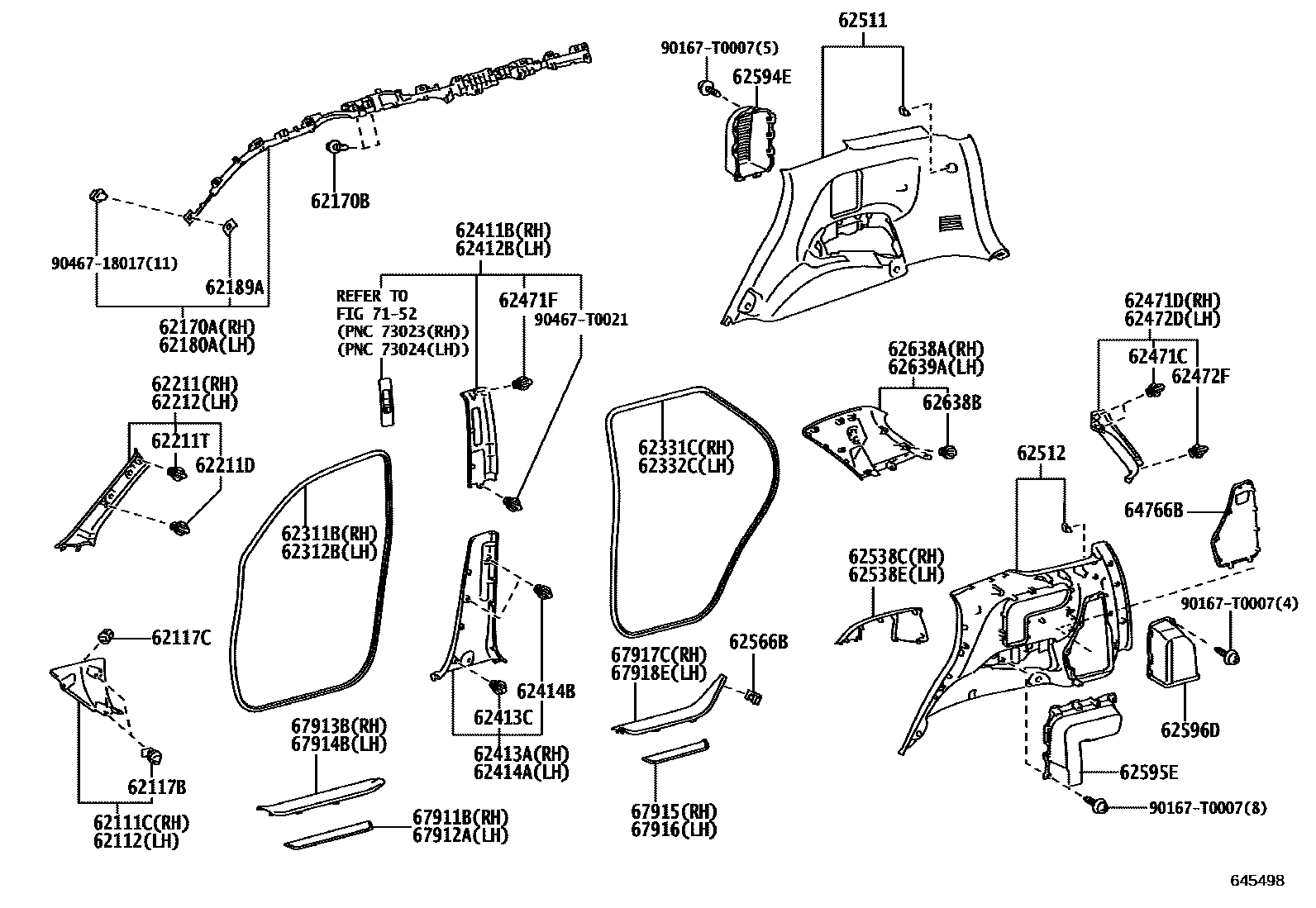

INSIDE TRIM BOARD
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM2#,4#
62112BOARD, COWL SIDE TRIM, LH
BLACK,TRIM2#,4#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
62170BBOLT, W/WASHER
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
62211GARNISH, FRONT PILLAR, RH
LT.GRAY,TRIM2#,4#
LT.GRAY,TRIM2#,4#
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
62211TCLIP(FOR FRONT PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
LT.GRAY,TRIM2#,4#
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62411BGARNISH, CENTER PILLAR, UPPER RH
LT.GRAY,TRIM2#,4#
62412BGARNISH, CENTER PILLAR, UPPER LH
LT.GRAY,TRIM2#,4#
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM2#,4#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM2#,4#
62414BCLIP (FOR CENTER LOWER GARNISH)
62471CCLIP(FOR REAR PILLAR COVER)
62471DGARNISH, REAR PILLAR, UPPER RH
LT.GRAY,TRIM2#,4#
62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)
62472DGARNISH, REAR PILLAR, UPPER LH
LT.GRAY,TRIM2#,4#
62472FCLIP(FOR REAR PILLAR GARNISH)
62511BOARD, QUARTER INSIDE TRIM, RH
BLACK,TRIM2#,4#
SEAT BELT WARNING-WITH(*DRP & REAR SEAT , WITHOUT(SENSOR)),BLACK,TRIM2#,4#
SEAT BELT WARNING-WITH(*DRP & REAR SEAT , WITH(SENSOR)),BLACK,TRIM2#,4#
62512BOARD, QUARTER INSIDE TRIM, LH
BLACK,TRIM2#,4#
SEAT BELT WARNING-WITH(*DRP & REAR SEAT , WITHOUT(SENSOR)),BLACK,TRIM2#,4#
SEAT BELT WARNING-WITH(*DRP & REAR SEAT , WITH(SENSOR)),BLACK,TRIM2#,4#
62538CCOVER, QUARTER TRIM, HOLE
BLACK,TRIM2#,4#
62538ECOVER, QUARTER TRIM, HOLE
BLACK,TRIM2#,4#
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
62594EPOCKET, QUARTER TRIM, RH
BLACK,TRIM2#,4#
62595EPOCKET, QUARTER TRIM, LH
BLACK,TRIM2#,4#
62596DTRAY, QUARTER TRIM POCKET
BLACK,TRIM2#,4#
62638AGARNISH, QUARTER PILLAR, RH
LT.GRAY,TRIM2#,4#
LT.GRAY,TRIM2#,4#
62638BCLIP
62639AGARNISH, QUARTER PILLAR, LH
LT.GRAY,TRIM2#,4#
LT.GRAY,TRIM2#,4#
64766BCOVER, QUARTER TRIM JACK
BLACK,TRIM2#,4#
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
BLACK,TRIM2#,4#
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
BLACK,TRIM2#,4#
67913BPLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM2#,4#
67914BPLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM2#,4#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
BLACK,TRIM2#,4#
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
BLACK,TRIM2#,4#
67917CPLATE, REAR DOOR SCUFF, RH
BLACK,TRIM2#,4#
67918EPLATE, REAR DOOR SCUFF, LH
BLACK,TRIM2#,4#
7152
90167T0007
main90167-T0007
9046718017
main90467-18017
90467T0021
main90467-T0021
51 parts on this diagram · 1 diagram in section
