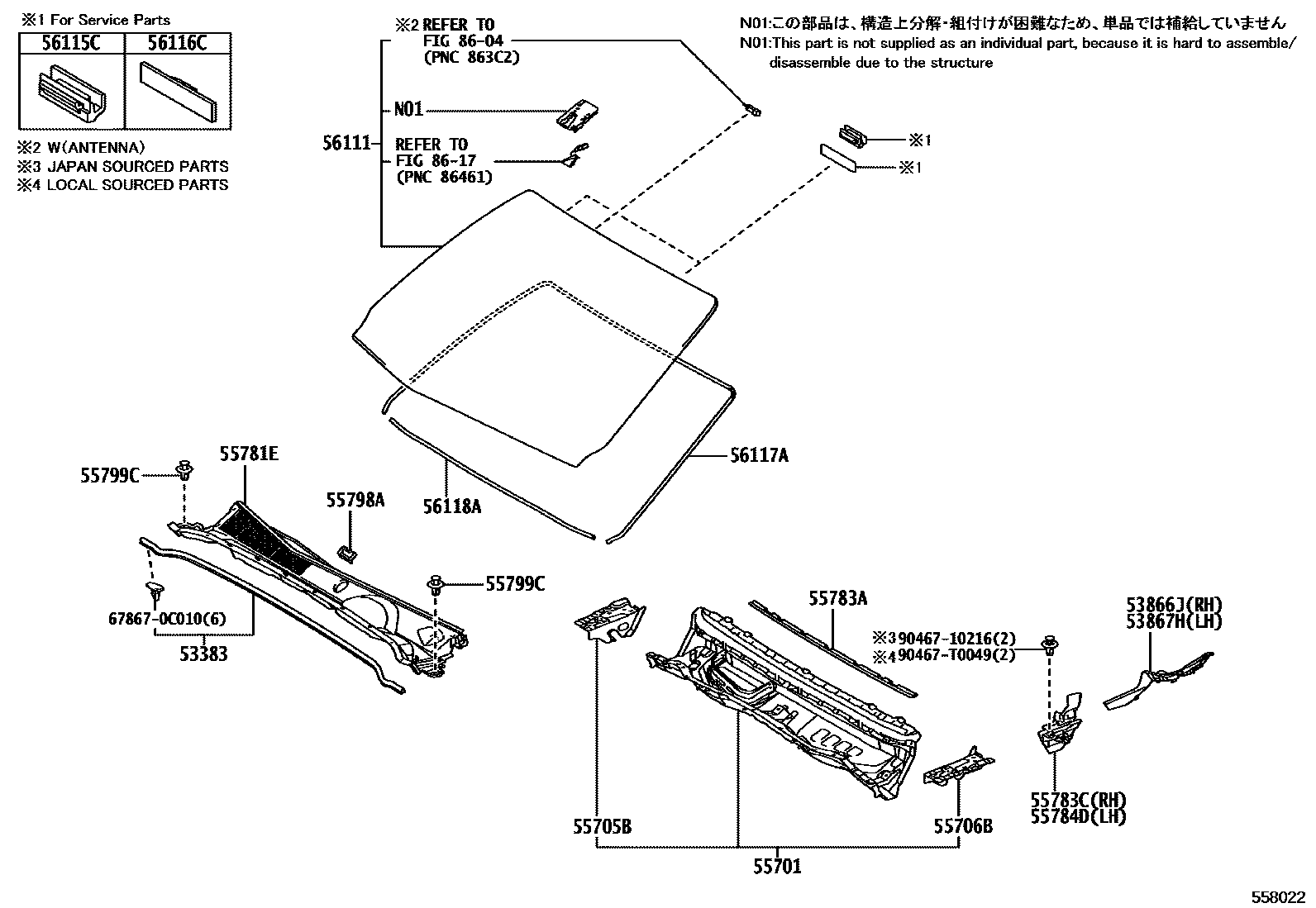

COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55701PANEL SUB-ASSY, COWL
STEERING WHEEL-LEATHER & WOOD LIKE,W(STEERING HEATER)
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
sub55708-0K181
STEERING WHEEL-LEATHER & WOOD LIKE,W(STEERING HEATER)
sub55708-0K351
AZERBAIJAN SPEC
55783APAD, COWL TOP SILENCER
55783CBRACKET, COWL TOP VENTILATOR LOUVER, RH
55784DBRACKET, COWL TOP VENTILATOR LOUVER, LH
55798ASUPPORT, COWL WATER EXTRACT SEAL
55799CCLIP, COWL TOP VENTILATOR LOUVER
(J)
(L)
56111GLASS, WINDSHIELD
AUDIO-*DA(8INCH) & *BT & DAB
STEERING WHEEL-LEATHER & WOOD LIKE,W(STEERING HEATER)
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH
56115CSTOPPER, WINDSHIELD GLASS
INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE
56116CSTOPPER, WINDSHIELD GLASS, NO.2
INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE
56117ADAM, WINDOW GLASS ADHESIVE
L=2620,STEERING WHEEL-LEATHER & WOOD LIKE,W(STEERING HEATER)
56118ADAM, WINDOW GLASS ADHESIVE, NO.2
L=1248,ACTIVE SAFETY PACKAGE-WITH&INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE
8604
8617
678670C010CLIP, DOOR WEATHERSTRIP
main67867-0C010
9046710216
main90467-10216
90467T0049
main90467-T0049
22 parts on this diagram · 1 diagram in section
