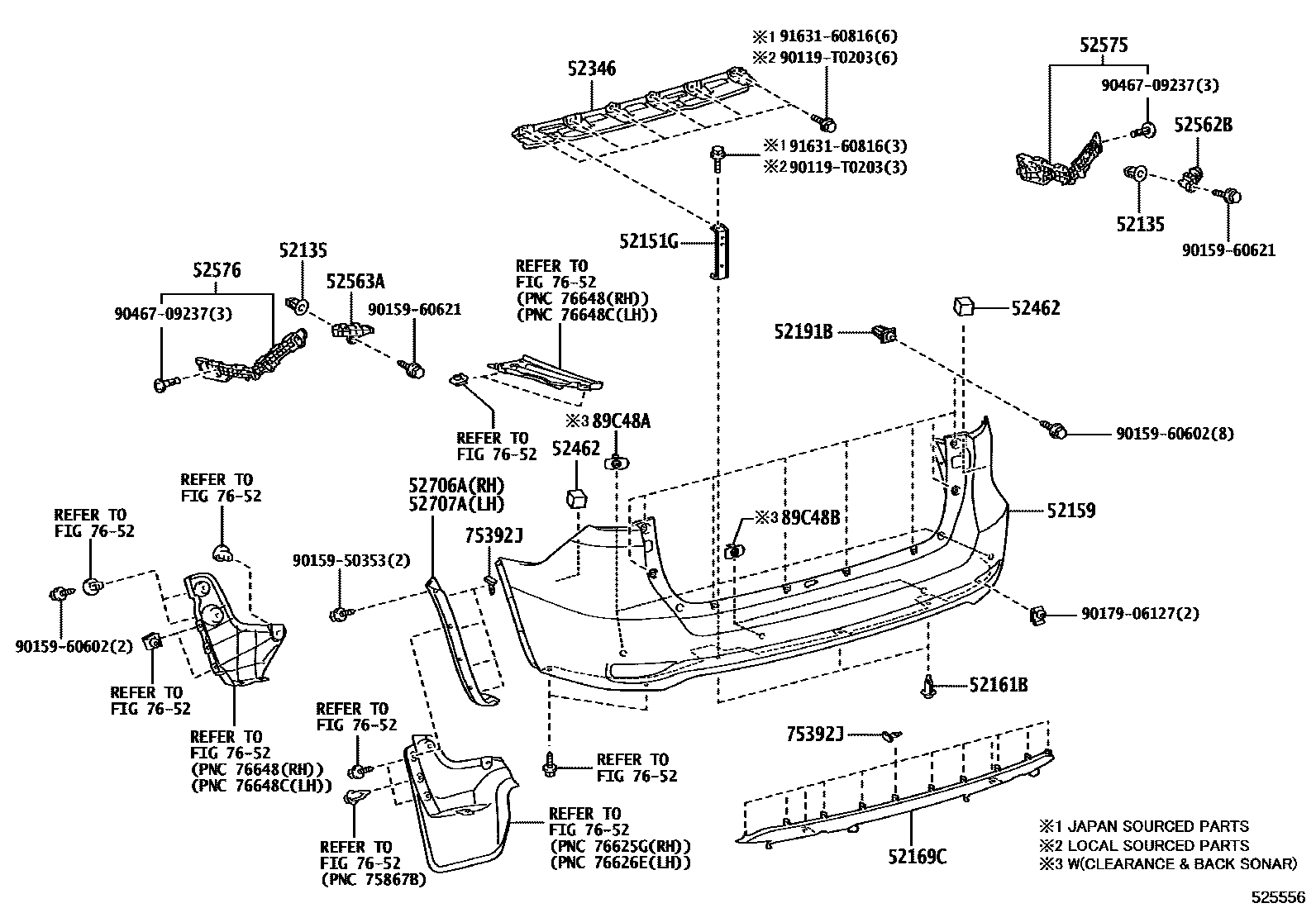

REAR BUMPER & BUMPER STAY
52135GROMMET, REAR BUMPER STAY
(J)
(L)
MLM BASIC PACKAGE
52151GEXTENSION, REAR BUMPER
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.
52161BPIECE, REAR BUMPER
MLM BASIC PACKAGE
52169CCOVER, REAR BUMPER, LOWER
NO PAINT REQ.
52191BGROMMET, REAR BUMPER STAY
52346FRAME, BACK STEP, REAR
52462PAD, REAR BUMPER, RH
NO PAINT REQ.
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52706AMOULDING SUB-ASSY, REAR BUMPER SIDE, RH
52707AMOULDING SUB-ASSY, REAR BUMPER SIDE, LH
75392JRETAINER, OUTSIDE MOULDING
(L)
MLM BASIC PACKAGE,(L)
(J)
7652
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
90119T0203
main90119-T0203
9015950353
9015960602
9015960621
9017906127
9046709237
9163160816
25 parts on this diagram · 2 diagrams in section
