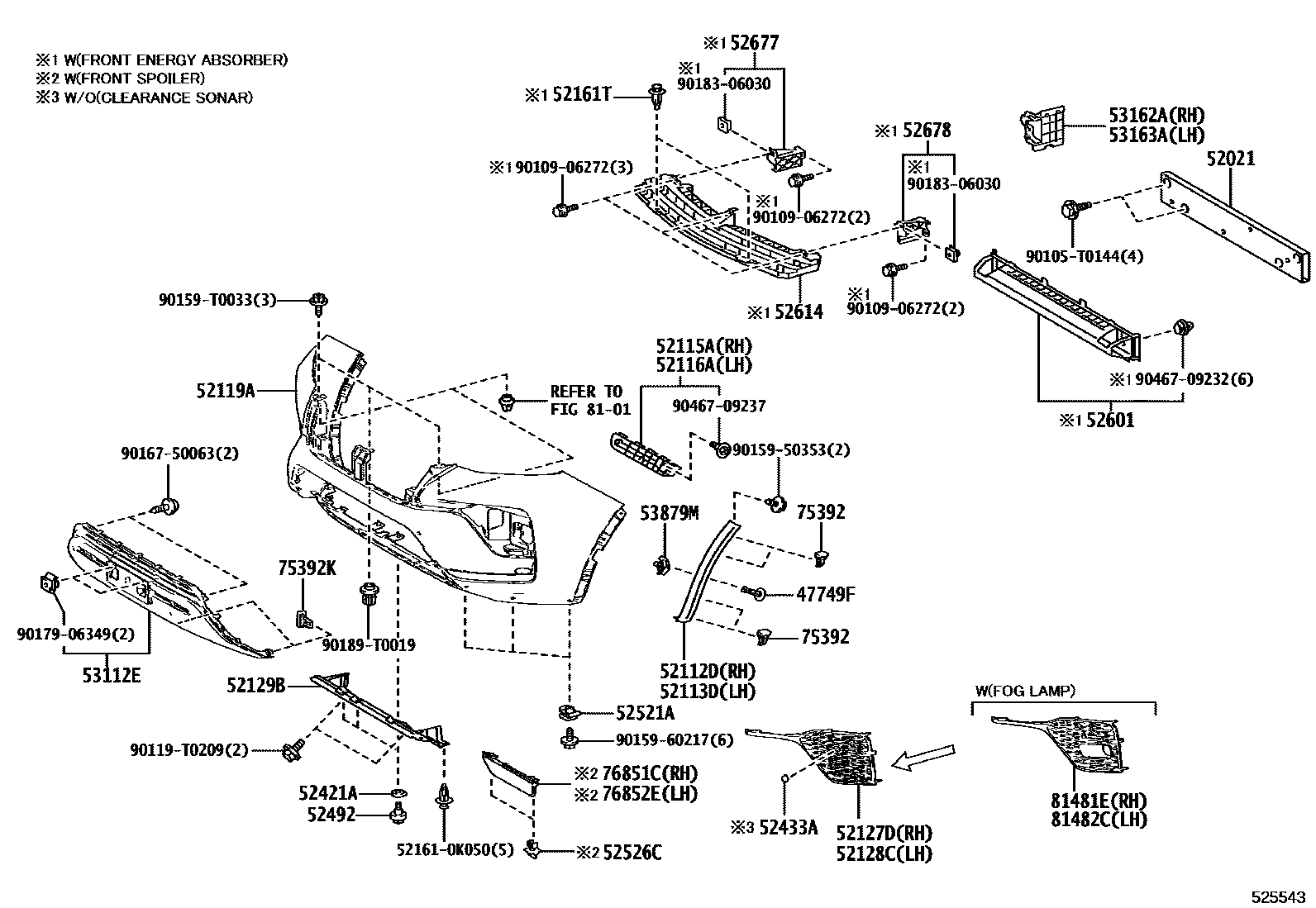

FRONT BUMPER & BUMPER STAY
47749FCLIP, PIN HOLD
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52112DEXTENSION, FRONT BUMPER, RH
NO PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)
NO PAINT REQ.
NO PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)
NO PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)&BACK MONITOR-WITH(*PVM)
52113DEXTENSION, FRONT BUMPER, LH
NO PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)
NO PAINT REQ.
NO PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)
NO PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)&BACK MONITOR-WITH(*PVM)
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)
PAINT REQ.
PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)
PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)&BACK MONITOR-WITH(*PVM)
52127DCOVER, FRONT BUMPER HOLE, RH
NO PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)
NO PAINT REQ.
52128CCOVER, FRONT BUMPER HOLE, LH
NO PAINT REQ.
NO PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)
52129BCOVER, FRONT BUMPER, LOWER
52161TPIECE, FRONT BUMPER
52421APAD, FRONT BUMPER
52433APLUG, FRONT BUMPER COVER HOLE
52492BOLT, BUMPER PAD, NO.2
52521ACLIP(FOR FRONT BUMPER RETAINER)
MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)
52526CRETAINER, FRONT BUMPER, LOWER
52601ABSORBER SUB-ASSY, FRONT BUMPER ENERGY
MLM BASIC PACKAGE
MLM BASIC PACKAGE
52614ABSORBER, FRONT BUMPER ENERGY, NO.2
52677SUPPORT, FRONT BUMPER SIDE, NO.2, RH
52678SUPPORT, FRONT BUMPER SIDE, NO.2, LH
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
BLUISH SILVER ME,040 ,089 ,1G3 ,218 ,2PS ,2SC ,3U5 ,4W9 ,8X8
MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED),BLUISH SILVERME,040 ,089 ,1G3 ,218 ,2PS ,2SC ,3U5 ,4W9 ,8X8
SILVER ME.,1D6
MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED),SILVER ME.,1D6
NO PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)
NO PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)&BACK MONITOR-WITH(*PVM)
53162ADEFLECTOR, FRONT BUMPER STONE, RH
53163ADEFLECTOR, FRONT BUMPER STONE, LH
53879MRETAINER, FRONT FENDER LINER
75392RETAINER, OUTSIDE MOULDING
75392KRETAINER, OUTSIDE MOULDING, NO.2
MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)
MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)&BACK MONITOR-WITH(*PVM)
76851CFRONT SPOILER
76852ESPOILER, FRONT, LH
8101
81481ECOVER, FOG LAMP, RH
NO PAINT REQ.,FRONT FOG LAMP-WITH(LED)
NO PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)
NO PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)&BACK MONITOR-WITH(*PVM)
81482CCOVER, FOG LAMP, LH
NO PAINT REQ.,FRONT FOG LAMP-WITH(LED)
NO PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)
NO PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)&BACK MONITOR-WITH(*PVM)
521610K050CUSHION, REAR BUMPER GUARD, NO.1
main52161-0K050
90105T0144
main90105-T0144
9010906272
main90109-06272
90119T0209
main90119-T0209
9015950353
main90159-50353
9015960217
main90159-60217
90159T0033
main90159-T0033
9016750063
main90167-50063
9017906349
main90179-06349
9018306030
main90183-06030
90189T0019
main90189-T0019
9046709232
main90467-09232
9046709237
main90467-09237
44 parts on this diagram · 2 diagrams in section
