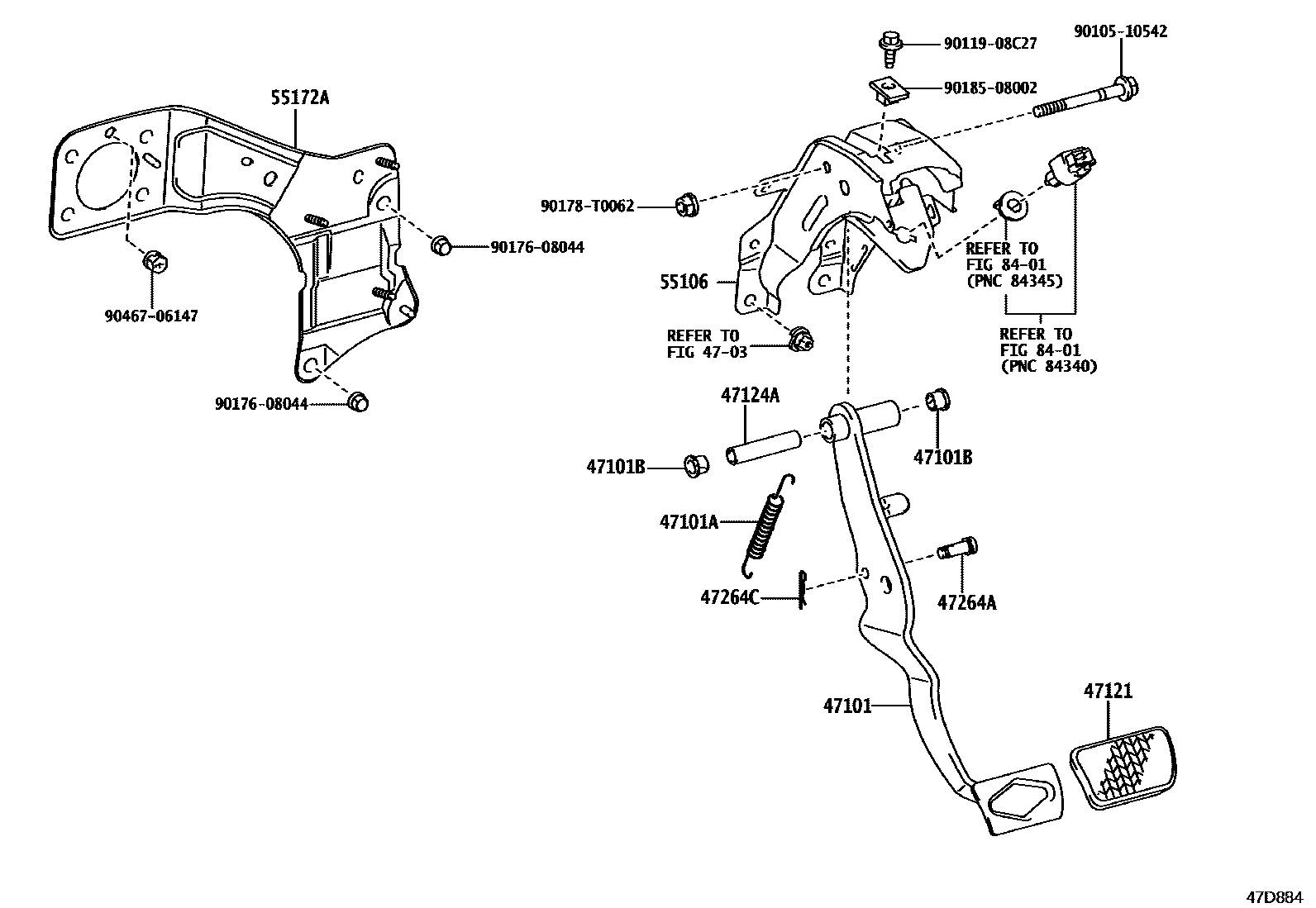

BRAKE PEDAL & BRACKET

4703

47101PEDAL SUB-ASSY, BRAKE

main47101-KK020iTGN156..L202208-202307

main47101-KK040iGUN156,TGN156..6FC202208-202307

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-T0002iGUN156,TGN156202208-202307

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iGUN156,TGN156202208-202307

47121PAD, BRAKE PEDAL

main31321-02020iTGN156..L202208-202307

main47121-02030iGUN156,TGN156..6FC202208-202307

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-F0002iGUN156,TGN156202208-202307

47264APIN(FOR PUSH ROD)

main47148-35010iGUN156,TGN156202208-202307

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90468-16012iGUN156,TGN156202208-202307

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-KK010iGUN156,TGN156202208-202307

55172ABASE, BRAKE PEDAL SUPPORT

main55172-KK050iGUN156,TGN156202208-202307

8401

9010510542

main90105-10542

9011908C27

main90119-08C27

9017608044

main90176-08044

90178T0062

main90178-T0062

9018508002

main90185-08002

9046706147

main90467-06147

17 parts on this diagram · 1 diagram in section
