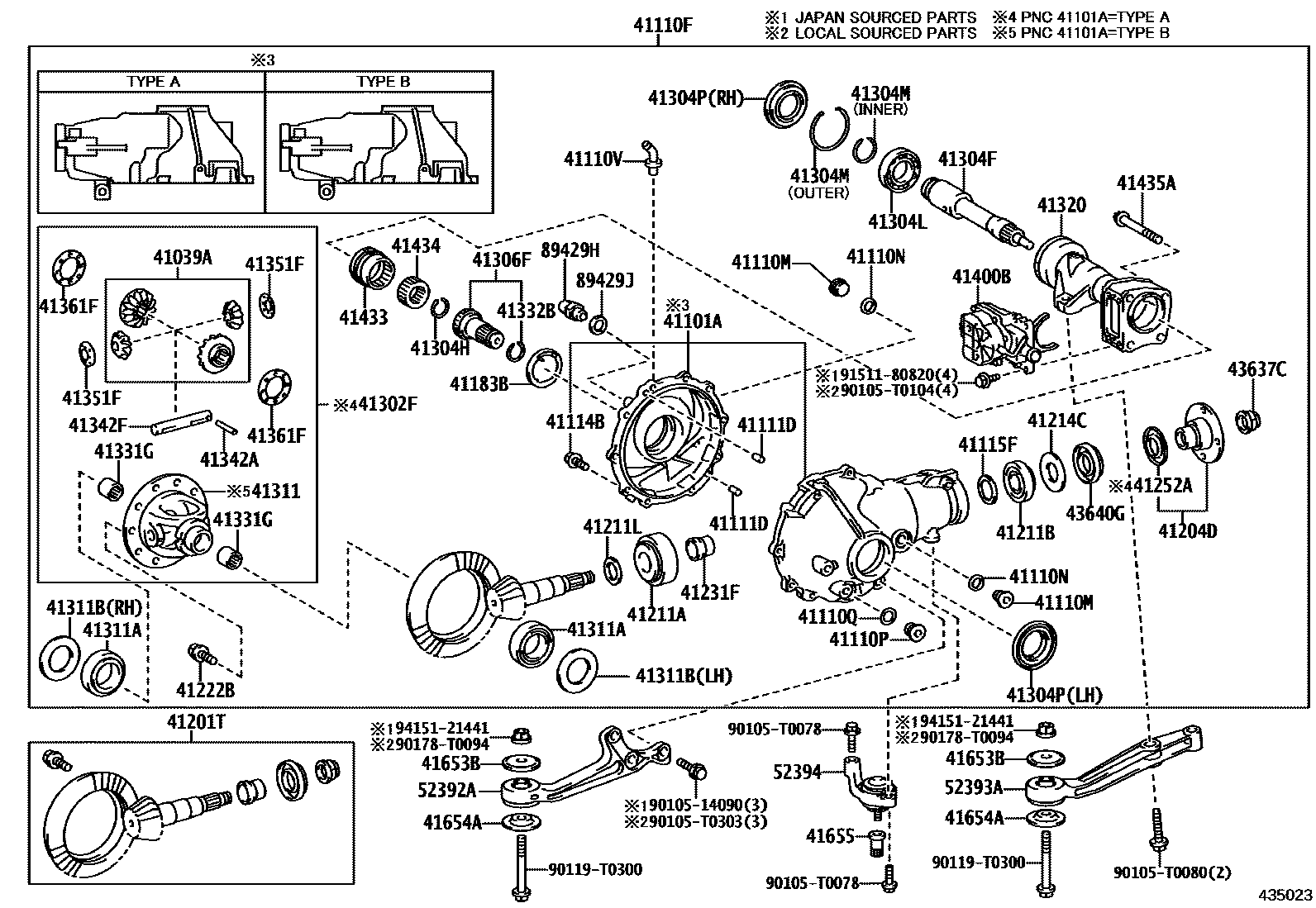

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1

41039AGEAR KIT, DIFFERENTIAL

main41039-71040iGUN156,TGN156202208-202307

PNC 41101A=TYPE A,PNC 41101A=TYPE B

41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT

main41101-0K060iGUN156,TGN156202208-202307

TYPE B:REFER ILLUST.

main41101-71030iGUN156,TGN156202208-202307

TYPE A:REFER ILLUST.

41110FCARRIER ASSY, DIFFERENTIAL, FRONT

main41110-0KA90iGUN156202208-202307

*FGR=43:11=3.909,PNC 41101A=TYPE B

sub41110-0KA91

main41110-0KB20iTGN156202208-202307

*FGR=41:9=4.555,PNC 41101A=TYPE B

sub41110-0KB21

main41110-71480iGUN156202208-202307

*FGR=43:11=3.909,PNC 41101A=TYPE A

sub41110-71481

main41110-71510iTGN156202208-202307

*FGR=41:9=4.555,PNC 41101A=TYPE A

sub41110-71511

41110MPLUG, FRONT DIFFERENTIAL FILLER

main90341-18032×2iGUN156,TGN156202208-202307

PNC 41101A=TYPE A,(J),PNC 41101A=T/P B

main90341-T0002×2iGUN156,TGN156202208-202307

(L),PNC 41101A=T/P B

41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG

main12157-10010×2iGUN156,TGN156202208-202307

PNC 41101A=TYPE A,PNC 41101A=TYPE B

41110PPLUG, FRONT DIFFERENTIAL DRAIN

main90341-24014iGUN156,TGN156202208-202307

PNC 41101A=TYPE A

main90341-T0003iGUN156,TGN156202208-202307

PNC 41101A=TYPE B

41110QGASKET, FRONT DIFFERENTIAL DRAIN PLUG

main90430-24017iGUN156,TGN156202208-202307

PNC 41101A=TYPE A,PNC 41101A=TYPE B

41110VUNION (FOR FRONT DIFFERENTIAL)

main90404-08004iGUN156,TGN156202208-202307

PNC 41101A=TYPE A,PNC 41101A=TYPE B

41111DPIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER)

main90250-10017×2iGUN156,TGN156202208-202307

PNC 41101A=TYPE A

main90250-T0004×2iGUN156,TGN156202208-202307

PNC 41101A=TYPE B

41114BBOLT, FRONT DIFFERENTIAL BEARING CAP

main90105-10391×10iGUN156,TGN156202208-202307

PNC 41101A=TYPE A

main90105-T0101×10iGUN156,TGN156202208-202307

PNC 41101A=TYPE B

41115FRING, FRONT DIFFERENTIAL OIL STORAGE

main41115-0K010iGUN156,TGN156202208-202307

PNC 41101A=TYPE B

main41115-35010iGUN156,TGN156202208-202307

PNC 41101A=TYPE A

41183BDEFLECTOR, FRONT DIFFERENTIAL SIDE BEARING RETAINER

main41183-0K010iGUN156,TGN156202208-202307

PNC 41101A=TYPE B

main41183-35040iGUN156,TGN156202208-202307

PNC 41101A=TYPE A

41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT

main41201-09C60iGUN156202208-202307

*FGR=43:11=3.909,PNC 41101A=TYPE B

main41201-09C90iTGN156202208-202307

*FGR=41:9=4.555,PNC 41101A=TYPE B

main41201-79465iGUN156202208-202307

*FGR=43:11=3.909,PNC 41101=TYPE A

main41201-79495iTGN156202208-202307

*FGR=41:9=4.555,RH,PNC 41101A=TYPE A

41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT

main41204-0K120iGUN156,TGN156202208-202307

PNC 41101A=TYPE B

main41204-71030iGUN156,TGN156202208-202307

PNC 41101A=TYPE A

41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)

main90366-35087iGUN156,TGN156202208-202307

PNC 41101A=TYPE A

main90366-T0016iGUN156,TGN156202208-202307

PNC 41101A=TYPE B

41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)

main90366-30067iGUN156,TGN156202208-202307

PNC 41101A=TYPE A

main90366-T0013iGUN156,TGN156202208-202307

PNC 41101A=TYPE B

41211LSHIM (FOR DIFFERENTIAL DRIVE PINION)

main90201-35497iGUN156,TGN156202208-202307

OD=47,T=1.70,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47

main90201-35498iGUN156,TGN156202208-202307

OD=47,T=1.73,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47

main90201-35499iGUN156,TGN156202208-202307

OD=47,T=1.76,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47

main90201-35500iGUN156,TGN156202208-202307

OD=47,T=1.79,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47

main90201-35501iGUN156,TGN156202208-202307

OD=47,T=1.82,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47

main90201-35502iGUN156,TGN156202208-202307

OD=47,T=1.85,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47

main90201-35503iGUN156,TGN156202208-202307

OD=47,T=1.88,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47

main90201-35504iGUN156,TGN156202208-202307

OD=47,T=1.91,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47

main90201-35505iGUN156,TGN156202208-202307

OD=47,T=1.94,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47

main90201-35506iGUN156,TGN156202208-202307

OD=47,T=1.97,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47

main90201-35507iGUN156,TGN156202208-202307

OD=47,T=2.00,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47

main90201-35508iGUN156,TGN156202208-202307

OD=47,T=2.03,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47

main90201-35509iGUN156,TGN156202208-202307

OD=47,T=2.06,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47

main90201-35510iGUN156,TGN156202208-202307

OD=47,T=2.09,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47

main90201-35511iGUN156,TGN156202208-202307

OD=47,T=2.12,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47

main90201-35512iGUN156,TGN156202208-202307

OD=47,T=2.15,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47

main90201-35513iGUN156,TGN156202208-202307

OD=47,T=2.18,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47

main90201-35514iGUN156,TGN156202208-202307

OD=47,T=2.21,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47

main90201-35515iGUN156,TGN156202208-202307

OD=47,T=2.24,MARK 01,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47

main90201-35516iGUN156,TGN156202208-202307

OD=47,T=2.27,MARK 02,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47

main90201-35517iGUN156,TGN156202208-202307

OD=47,T=2.30,MARK 03,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47

main90201-35518iGUN156,TGN156202208-202307

OD=47,T=2.33,MARK 04,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47

main90564-35109iGUN156,TGN156202208-202307

OD=52,T=1.70,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52

main90564-35110iGUN156,TGN156202208-202307

OD=52,T=1.73,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52

main90564-35111iGUN156,TGN156202208-202307

OD=52,T=1.76,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52

main90564-35112iGUN156,TGN156202208-202307

OD=52,T=1.79,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52

main90564-35113iGUN156,TGN156202208-202307

OD=52,T=1.82,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52

main90564-35114iGUN156,TGN156202208-202307

OD=52,T=1.85,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52

main90564-35115iGUN156,TGN156202208-202307

OD=52,T=1.88,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52

main90564-35116iGUN156,TGN156202208-202307

OD=52,T=1.91,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52

main90564-35117iGUN156,TGN156202208-202307

OD=52,T=1.94,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52

main90564-35118iGUN156,TGN156202208-202307

OD=52,T=1.97,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52

main90564-35119iGUN156,TGN156202208-202307

OD=52,T=2.00,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52

main90564-35120iGUN156,TGN156202208-202307

OD=52,T=2.03,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52

main90564-35121iGUN156,TGN156202208-202307

OD=52,T=2.06,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52

main90564-35123iGUN156,TGN156202208-202307

OD=52,T=2.09,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52

main90564-35124iGUN156,TGN156202208-202307

OD=52,T=2.12,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52

main90564-35125iGUN156,TGN156202208-202307

OD=52,T=2.15,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52

main90564-35126iGUN156,TGN156202208-202307

OD=52,T=2.18,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52

main90564-35127iGUN156,TGN156202208-202307

OD=52,T=2.21,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52

main90564-35128iGUN156,TGN156202208-202307

OD=52,T=2.24,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52

main90564-35129iGUN156,TGN156202208-202307

OD=52,T=2.27,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52

main90564-35130iGUN156,TGN156202208-202307

OD=52,T=2.30,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52

main90564-35131iGUN156,TGN156202208-202307

OD=52,T=2.33,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52

41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL

main41214-26011iGUN156,TGN156202208-202307

PNC 41101A=TYPE A,PNC 41101A=TYPE B

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90105-T0310×10iGUN156,TGN156202208-202307

(L),PNC 41101A=T/P B

main90901-05002×10iGUN156,TGN156202208-202307

PNC 41101A=TYPE A,(J),PNC 41101A=T/P B

41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING

main41231-35040iGUN156,TGN156202208-202307

PNC 41101A=TYPE A,PNC 41101A=TYPE B

41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)

main41252-71030iGUN156,TGN156202208-202307

PNC 41101A=TYPE A

41302FCASE SUB-ASSY, FRONT DIFFERENTIAL

main41301-71120iGUN156,TGN156202208-202307

PNC 41101A=TYPE A

41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH

main41337-35060iGUN156,TGN156202208-202307

PNC 41101A=TYPE A,PNC 41101A=TYPE B

41304HRING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90520-31011iGUN156,TGN156202208-202307

PNC 41101A=TYPE A

main90520-T0028iGUN156,TGN156202208-202307

PNC 41101A=TYPE B

41304LBEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH)

main90363-T0014iGUN156,TGN156202208-202307

PNC 41101A=TYPE A,PNC 41101A=TYPE B

41304MRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH)

main90520-41014iGUN156,TGN156202208-202307

PNC41101A=T/PA,INNER

main90520-75002iGUN156,TGN156202208-202307

PNC41101A=T/PA,OUTER

main90520-T0027iGUN156,TGN156202208-202307

PNC41101A=T/PB,INNER

main90521-T0002iGUN156,TGN156202208-202307

PNC41101A=T/PB,OUTER

41304PSEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90311-47035iGUN156,TGN156202208-202307

LH,PNC 41101A=TYPE A

sub90311-47041

main90311-47038iGUN156,TGN156202208-202307

RH,PNC 41101A=TYPE A

sub90311-47042

main90311-T0101iGUN156,TGN156202208-202307

LH,PNC 41101A=TYPE B

sub90311-T0107

main90311-T0102iGUN156,TGN156202208-202307

RH,PNC 41101A=TYPE B

sub90311-T0108

41306FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR INTER

main41306-0K030iGUN156,TGN156202208-202307

PNC 41101A=TYPE B

main41306-35060iGUN156,TGN156202208-202307

PNC 41101A=TYPE A

41311CASE, FRONT DIFFERENTIAL

main41311-0K070iGUN156,TGN156202208-202307

PNC 41101A=TYPE B

41311ABEARING (FOR FRONT DIFFERENTIAL CASE)

main90366-53004×2iGUN156,TGN156202208-202307

PNC 41101A=TYPE A

main90366-T0031×2iGUN156,TGN156202208-202307

PNC 41101A=TYPE B

41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)

main90564-50124iGUN156,TGN156202208-202307

T=1.60,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B

main90564-50126iGUN156,TGN156202208-202307

T=1.66,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B

main90564-50128iGUN156,TGN156202208-202307

T=1.72,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B

main90564-50130iGUN156,TGN156202208-202307

T=1.78,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B

main90564-50132iGUN156,TGN156202208-202307

T=1.84,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B

main90564-50134iGUN156,TGN156202208-202307

T=1.90,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B

main90564-50136iGUN156,TGN156202208-202307

T=1.96,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B

main90564-50138iGUN156,TGN156202208-202307

T=2.02,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B

main90564-50140iGUN156,TGN156202208-202307

T=2.08,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B

main90564-50142iGUN156,TGN156202208-202307

T=2.14,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B

main90564-50154iGUN156,TGN156202208-202307

T=1.60,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A

main90564-50156iGUN156,TGN156202208-202307

T=1.66,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A

main90564-50158iGUN156,TGN156202208-202307

T=1.72,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A

main90564-50160iGUN156,TGN156202208-202307

T=1.78,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A

main90564-50162iGUN156,TGN156202208-202307

T=1.84,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A

main90564-50164iGUN156,TGN156202208-202307

T=1.90,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A

main90564-50166iGUN156,TGN156202208-202307

T=1.96,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A

main90564-50168iGUN156,TGN156202208-202307

T=2.02,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A

main90564-50170iGUN156,TGN156202208-202307

T=2.08,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A

main90564-50172iGUN156,TGN156202208-202307

T=2.14,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A

main90564-50184iGUN156,TGN156202208-202307

T=1.58,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B

main90564-50185iGUN156,TGN156202208-202307

T=1.62,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B

main90564-50186iGUN156,TGN156202208-202307

T=1.64,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B

main90564-50187iGUN156,TGN156202208-202307

T=1.68,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B

main90564-50188iGUN156,TGN156202208-202307

T=1.70,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B

main90564-50189iGUN156,TGN156202208-202307

T=1.74,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B

main90564-50190iGUN156,TGN156202208-202307

T=1.76,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B

main90564-50191iGUN156,TGN156202208-202307

T=1.80,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B

main90564-50192iGUN156,TGN156202208-202307

T=1.82,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B

main90564-50193iGUN156,TGN156202208-202307

T=1.86,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B

main90564-50194iGUN156,TGN156202208-202307

T=1.88,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B

main90564-50195iGUN156,TGN156202208-202307

T=1.92,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B

main90564-50196iGUN156,TGN156202208-202307

T=1.94,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B

main90564-50197iGUN156,TGN156202208-202307

T=1.98,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B

main90564-50198iGUN156,TGN156202208-202307

T=2.00,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B

main90564-50199iGUN156,TGN156202208-202307

T=2.04,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B

main90564-50200iGUN156,TGN156202208-202307

T=2.06,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B

main90564-50201iGUN156,TGN156202208-202307

T=2.10,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B

main90564-50202iGUN156,TGN156202208-202307

T=2.12,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B

main90564-50203iGUN156,TGN156202208-202307

T=2.16,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B

main90564-50204iGUN156,TGN156202208-202307

T=1.58,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A

main90564-50205iGUN156,TGN156202208-202307

T=1.62,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A

main90564-50206iGUN156,TGN156202208-202307

T=1.64,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A

main90564-50207iGUN156,TGN156202208-202307

T=1.68,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A

main90564-50208iGUN156,TGN156202208-202307

T=1.70,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A

main90564-50209iGUN156,TGN156202208-202307

T=1.74,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A

main90564-50210iGUN156,TGN156202208-202307

T=1.76,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A

main90564-50211iGUN156,TGN156202208-202307

T=1.80,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A

main90564-50212iGUN156,TGN156202208-202307

T=1.82,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A

main90564-50213iGUN156,TGN156202208-202307

T=1.86,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A

main90564-50214iGUN156,TGN156202208-202307

T=1.88,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A

main90564-50215iGUN156,TGN156202208-202307

T=1.92,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A

main90564-50216iGUN156,TGN156202208-202307

T=1.94,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A

main90564-50217iGUN156,TGN156202208-202307

T=1.98,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A

main90564-50218iGUN156,TGN156202208-202307

T=2.00,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A

main90564-50219iGUN156,TGN156202208-202307

T=2.04,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A

main90564-50220iGUN156,TGN156202208-202307

T=2.06,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A

main90564-50221iGUN156,TGN156202208-202307

T=2.10,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A

main90564-50222iGUN156,TGN156202208-202307

T=2.12,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A

main90564-50223iGUN156,TGN156202208-202307

T=2.16,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A

main90564-50224iGUN156,TGN156202208-202307

T=1.44,RH,PNC 41101A=TYPE A

main90564-50225iGUN156,TGN156202208-202307

T=1.46,RH,PNC 41101A=TYPE A

main90564-50226iGUN156,TGN156202208-202307

T=1.48,RH,PNC 41101A=TYPE A

main90564-50227iGUN156,TGN156202208-202307

T=1.50,RH,PNC 41101A=TYPE A

main90564-50228iGUN156,TGN156202208-202307

T=1.52,RH,PNC 41101A=TYPE A

main90564-50229iGUN156,TGN156202208-202307

T=1.54,RH,PNC 41101A=TYPE A

main90564-50230iGUN156,TGN156202208-202307

T=1.56,RH,PNC 41101A=TYPE A

main90564-50231iGUN156,TGN156202208-202307

T=2.18,LH,PNC 41101A=TYPE A

main90564-50232iGUN156,TGN156202208-202307

T=2.20,LH,PNC 41101A=TYPE A

main90564-50233iGUN156,TGN156202208-202307

T=2.22,LH,PNC 41101A=TYPE A

main90564-50234iGUN156,TGN156202208-202307

T=2.24,LH,PNC 41101A=TYPE A

main90564-50235iGUN156,TGN156202208-202307

T=2.26,LH,PNC 41101A=TYPE A

main90564-50236iGUN156,TGN156202208-202307

T=2.28,LH,PNC 41101A=TYPE A

main90564-50237iGUN156,TGN156202208-202307

T=2.30,LH,PNC 41101A=TYPE A

41320TUBE ASSY, FRONT DIFFERENTIAL

main41320-0K020iGUN156,TGN156202208-202307

PNC 41101A=TYPE B

main41320-71020iGUN156,TGN156202208-202307

PNC 41101A=TYPE A

41331GBEARING, NEEDLE ROLLER(FOR FRONT DIFFERENTIAL SIDE GEAR)

main90364-35010×2iGUN156,TGN156202208-202307

PNC 41101A=TYPE A

main90364-T0009×2iGUN156,TGN156202208-202307

PNC 41101A=TYPE B

41332BRING, HOLE SNAP (FOR DIFF SIDE GEAR INTERMEDDIATE SHAFT)

main90521-34003iGUN156,TGN156202208-202307

PNC 41101A=TYPE A,PNC 41101A=TYPE B

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-06058iGUN156,TGN156202208-202307

PNC 41101A=TYPE A

main90250-T0006iGUN156,TGN156202208-202307

PNC 41101A=TYPE B

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-0K040iGUN156,TGN156202208-202307

PNC 41101A=TYPE B

main41342-53020iGUN156,TGN156202208-202307

PNC 41101A=TYPE A

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-0K010×2iGUN156,TGN156202208-202307

(L),PNC 41101A=T/P B

main41351-35030×2iGUN156,TGN156202208-202307

PNC 41101A=TYPE A,(J),PNC 41101A=T/P B

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-0K020×2iGUN156,TGN156202208-202307

T=1.55,PNC 41101A=TYPE B

main41361-0K030×2iGUN156,TGN156202208-202307

T=1.60,PNC 41101A=TYPE B

main41361-0K040×2iGUN156,TGN156202208-202307

T=1.65,PNC 41101A=TYPE B

main41361-0K050×2iGUN156,TGN156202208-202307

T=1.70,PNC 41101A=TYPE B

main41361-0K060×2iGUN156,TGN156202208-202307

T=1.75,PNC 41101A=TYPE B

main41361-0K070×2iGUN156,TGN156202208-202307

T=1.80,PNC 41101A=TYPE B

main41361-0K080×2iGUN156,TGN156202208-202307

T=1.85,PNC 41101A=TYPE B

main41361-0K090×2iGUN156,TGN156202208-202307

T=1.90,PNC 41101A=TYPE B

main41361-34010×2iGUN156,TGN156202208-202307

T=1.50,PNC 41101A=TYPE A

main41361-34020×2iGUN156,TGN156202208-202307

T=1.55,PNC 41101A=TYPE A

main41361-34030×2iGUN156,TGN156202208-202307

T=1.60,PNC 41101A=TYPE A

main41361-34040×2iGUN156,TGN156202208-202307

T=1.65,PNC 41101A=TYPE A

main41361-34050×2iGUN156,TGN156202208-202307

T=1.70,PNC 41101A=TYPE A

main41361-34060×2iGUN156,TGN156202208-202307

T=1.75,PNC 41101A=TYPE A

main41361-34070×2iGUN156,TGN156202208-202307

T=1.80,PNC 41101A=TYPE A

main41361-34080×2iGUN156,TGN156202208-202307

T=1.85,PNC 41101A=TYPE A

main41361-34090×2iGUN156,TGN156202208-202307

T=1.90,PNC 41101A=TYPE A

41400BACTUATOR ASSY, DIFFERENTIAL MOTOR

main41400-35034iGUN156,TGN156202208-202307

PNC 41101A=TYPE A,PNC 41101A=TYPE B

41433SLEEVE, DIFFERENTIAL CLUTCH

main41433-35010iGUN156,TGN156202208-202307

PNC 41101A=TYPE A,PNC 41101A=TYPE B

41434HUB, DIFFERENTIAL CLUTCH

main41434-35030iGUN156,TGN156202208-202307

PNC 41101A=TYPE A,PNC 41101A=TYPE B

41435ABOLT (FOR DIFFERENTIAL CLUTCH CASE SETTING)

main90107-12002×4iGUN156,TGN156202208-202307

*12-1.25PX78-30,PNC 41101A=TYPE A

main90107-T0001×4iGUN156,TGN156202208-202307

*12-1.25PX78-30,PNC 41101A=TYPE B

41653BSTOPPER, DIFFERENTIAL MOUNT, UPPER

main41653-0K010×2iGUN156,TGN156202208-202307

41654ASTOPPER, DIFFERENTIAL MOUNT, LOWER

main41654-0K010×2iGUN156,TGN156202208-202307

41655NUT, FRONT DIFFERENTIAL MOUNT, NO.1

main41655-0K011iGUN156,TGN156202208-202307

43637CNUT, CASTLE (FOR FRONT AXLE DRIVE PINION)

main90177-22003iGUN156,TGN156202208-202307

PNC 41101A=TYPE A,PNC 41101A=TYPE B

43640GSEAL, TYPE T OIL (FOR FRONT AXLE DIFFERENTIAL CARRIER)

main90311-41015iGUN156,TGN156202208-202307

PNC 41101A=TYPE A

main90311-T0064iGUN156,TGN156202208-202307

PNC 41101A=TYPE B

52392ASUPPORT, FRONT DIFFERENTIAL, NO.1

main52380-0K010iGUN156,TGN156202208-202307

52393ASUPPORT, FRONT DIFFERENTIAL, NO.2

main52380-0K020iGUN156,TGN156202208-202307

52394SUPPORT, FRONT DIFFERENTIAL, NO.3

main52380-0K030iGUN156,TGN156202208-202307

89429HSENSOR, TEMPERATURE

main89429-53010iGUN156,TGN156202208-202307

89429JGASKET(FOR TEMPERATURE SENSOR)

main90430-14011iGUN156,TGN156202208-202307

9010514090

main90105-14090

90105T0078

main90105-T0078

90105T0080

main90105-T0080

90105T0104

main90105-T0104

90105T0303

main90105-T0303

90119T0300

main90119-T0300

90178T0094

main90178-T0094

9151180820

main91511-80820

9415121441

main94151-21441

61 parts on this diagram · 2 diagrams in section
