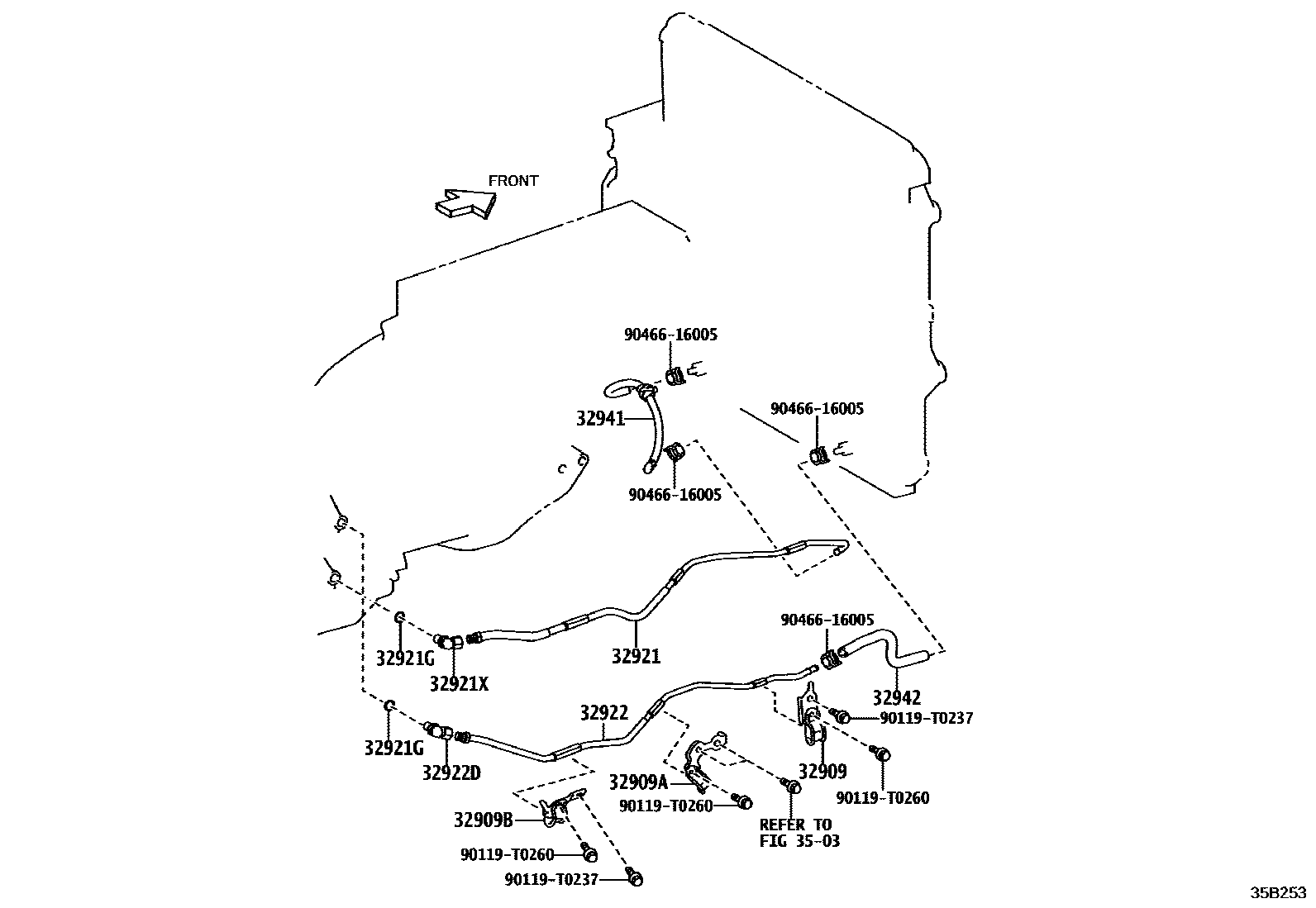

OIL COOLER & TUBE (ATM)

0001 1AC60F 0002 1AC60F

32909CLAMP SUB-ASSY, TRANSMISSION OIL COOLER TUBE, NO.1

main32909-KK030iGUN156202208-202307

main32909-KK090iTGN156..S202208-202307

32909ACLAMP SUB-ASSY, TRANSMISSION OIL COOLER TUBE, NO.2

main32909-KK020iGUN156202208-202307

main32909-KK080iTGN156..S202208-202307

32909BCLAMP SUB-ASSY, TRANSMISSION OIL COOLER TUBE, NO.3

main32909-KK010iGUN156202208-202307

main32909-KK070iTGN156..S202208-202307

32921TUBE, OIL COOLER INLET, NO.1

main32921-0K090iGUN156202208-202307

main32921-0K110iTGN156..S202208-202307

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11030iGUN156202208-202307

(J)

main90301-T0069iGUN156,TGN156..6FC202208-202307

(L)

32921XUNION OR ELBOW, OIL COOLER INLET

main90407-16009iGUN156,TGN156..6FC202208-202307

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-0K090iGUN156202208-202307

main32922-0K110iTGN156..S202208-202307

32922DUNION OR ELBOW, OIL COOLER OUTLET

main90407-16009iGUN156,TGN156..6FC202208-202307

32941HOSE, OIL COOLER INLET, NO.1

main32941-0K010iGUN156202208-202307

main32941-0K030iTGN156..S202208-202307

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-0K010iGUN156202208-202307

main32942-0K060iTGN156..S202208-202307

3503

90119T0237

main90119-T0237

90119T0260

main90119-T0260

9046616005

main90466-16005

14 parts on this diagram · 2 diagrams in section
